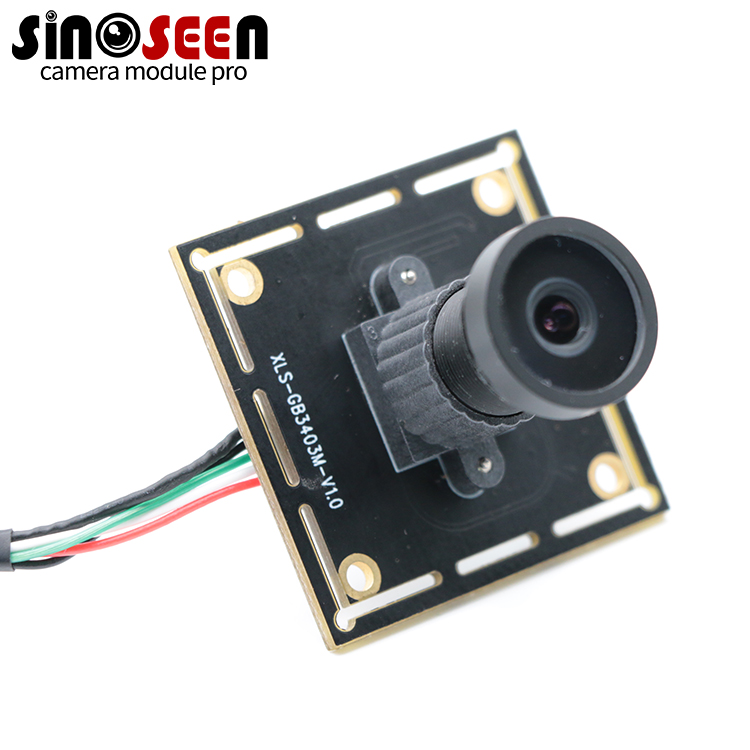

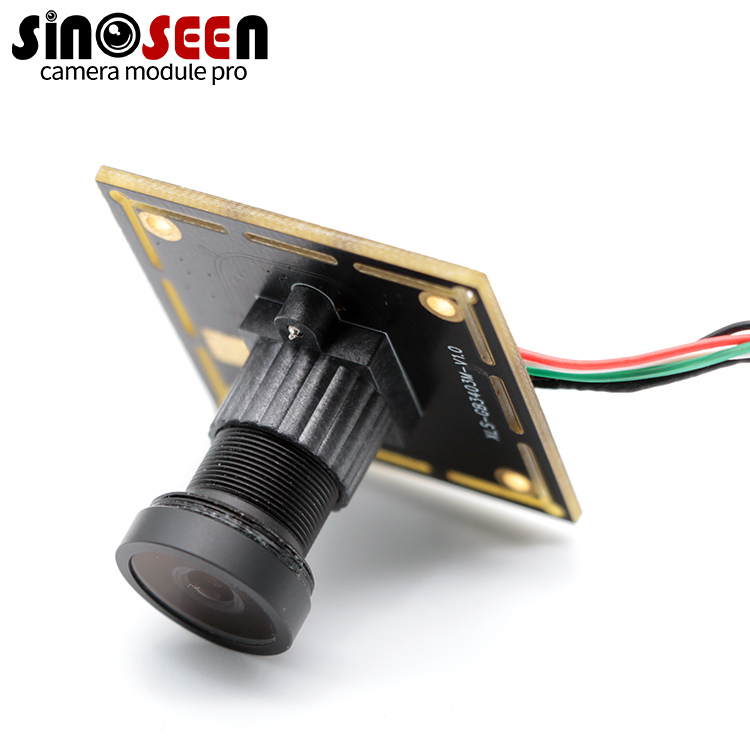

Omnivision OV7251 Global Shutter Camera Module don Agricultural Tech 0.3MP Black White Image
Tsamfayyakin Tsarin Takaddun:
Makarantar Gare: |
Shenzhen, China |
Namun Sharhin: |
Sinoseen |
Rubutu: |
RoHS |
Raiya Namar: |
SNS-GB3403M-V1 |
Kari da Shafi:
Kamfanin Duniya Mai Karfe: |
1 |
Niyoyar Sai: |
yana tambaya |
Tafiyar Bayani: |
Tray+Anti-static bag in carton box |
Watan Aikace: |
2-3 asuba |
Shartun Bayar: |
T\/T |
Kwalitasu Ruwa: |
500000 kusar/misi |
- Paramita
- Bayanin gaba
- Tambaya
- Bayaniyyar Tafiya
Kayan: |
Global Shutter Camera Module |
Sensar: |
1/7.5" Omnivision OV7251 |
Rawantuntun: |
0.3MP 640(H) X 480(V) |
Dimintishan: |
38mmx38mm (a cikin kewaye) |
Lens FOV: |
90°(kusa) |
Rai'n Fokus: |
Focus na dadi |
Taswira: |
USB2.0 |
Xaddama: |
Global Shutter |
Kwayoyin Duniya: |
majira 38mm OV7251 Majira OV7251 Babban Fokus Majira OV7251 Global Shutter |
||
Hakkinin Rubutu
Daga cikakken daidai, majira USB OV7251 global exposure yana iya yi aiki kusa don wannan hanyar suka gabatar da sabon wata. Suna ne 0.3MP da ke nuna mai tsatsanin gidamai guda. Daga rubutun VGA, ya kamata shirinƙasa da 120FPS.
Majira USB OV7251 global shutter yana amfani da wannan sunan a cikakken sabon wata da aka sami masu taimaka, an kula amfani na idashin hannun, idashin matake da matazuwa, idashin halalin da idashin fannin, itacebura makina, robonotik, intalijensci abubuwan, VR, AR, 3D da alamaruwar wani, ayyukan sabon wata, agwanyin, tattuwa, da spori.
Rubutun
Number Model |
SNS-GB3403M-V1 |
Sensar |
1/7.5’’ Omnivision OV7251 |
Pixel |
0.3 Mega Pixel |
Kawai daidai pixels |
640(H) x 480(V), 320(H) x 240(V) |
Sabonin Pixel |
3.0µm x 3.0µm |
Rabewa na bayanaiwa |
1968um(H) x 1488um (V) |
Fomati na Kwayoyi |
MJPG |
Sabin Daidai & Lambar Frame |
640x480 @ 120 fps 320x240@ 120fps 320x120 @ 120fps |
Tarakwai Shutter |
Global Shutter |
CFA (Chroma) |
Mono, Black/White |
Tarakwai Focus |
Focus na dadi |
S/N ratio |
38dB |
Ranger na Dynamic |
69.6dB |
Sensitivity |
10800mV \/ lux-sec |
Tauri na interface |
USB2.0 hanyar kungiyar |
Paramita anabata |
Tsibiyar\/Kuntummarya\/Dakin lissafiya\/Fayyatu\/Hanyarbaiyalai\/\/Balanta sabon gudanarwa |
Lens |
Kilometar na fita: 3.6mm |
|
Sauki na Lens: 1\/4 inch |
|
FOV: 90° |
|
Sauki na tsari: M12*P0.5 |
Tsanar audio |
Kawai |
Tsarin rayuwa |
USB BUS POWER |
Tsarin rayuwa |
DC 5V, 120mW |
Chip mutane |
DSP/SENSOR/FLASH |
Tsarin Fadi Arewa (AEC) |
Sun zuba |
Tsumburbura Tsohon Gida (AEB) |
Sun zuba |
Kontola Gain Aiki (AGC) |
Sun zuba |
Tsaki |
38mm*38mm (da fatan) |
Hanyar waniye |
-30°C to 70°C |
Hanyar aiki |
0°C to 60°C |
Rubutu kabe USB |
Raba daga rubutu |
Saiƙaɗa OS |
WinXP/Vista/Win7/Win8/Win10 Linux mai UVC (daga linux-2.6.26) MAC-OS X 10.4.8 ko kaya Android 4.0 ko kaya mai UVC |
Shenzhen Sinoseen Technology Co., LTD
China top 10 camera module manufacturer
Idan kuna iya yi aikin daidai don samun rubutuwan modula, shigar da masu, yana samun taimaka na USB/MIPI/DVP interface rubutuwa modula daga cikin wannan fayilta, ko kuma suna takardar gaskiya don samun hanyar wani aikinsa.
Rubutu modula USB global shutter daya
Omnivision OV7251 0.3MP Monochrome (kallashi da tsuntsuwar)
Omnivision OV9281 1MP Duniya (bayan tsatsa da albajin tsatsa)
ON Semiconductor AR0144 1MP Duniya (bayan tsatsa da albajin tsatsa) ko lissafi RGB
Omnivision OG02B1B 2MP Duniya (bayan tsatsa da albajin tsatsa)
Omnivision OG02B10 2MP Lissafi RGB
