VGA Camera Module with Monochrome HDR High Frame Rate Global Shutter
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-SC031GS-M1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
- Parameter
- Related products
- Inquiry
Product Description

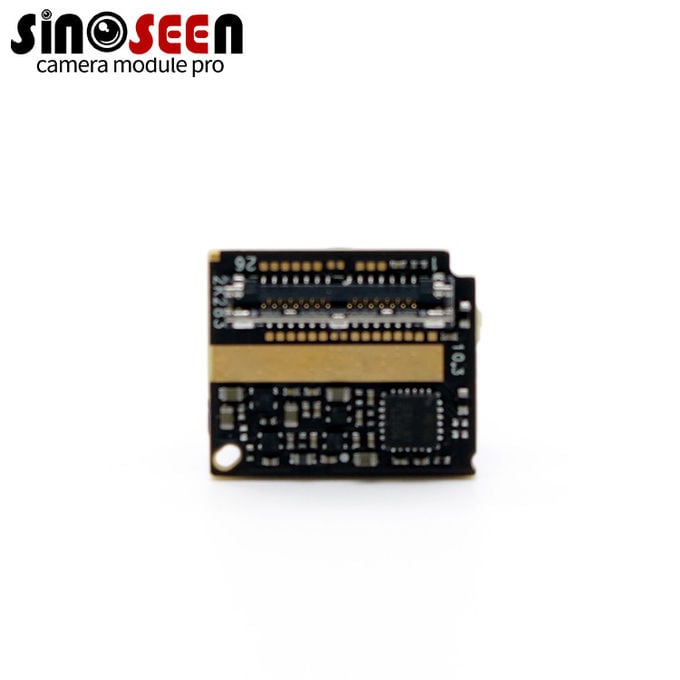

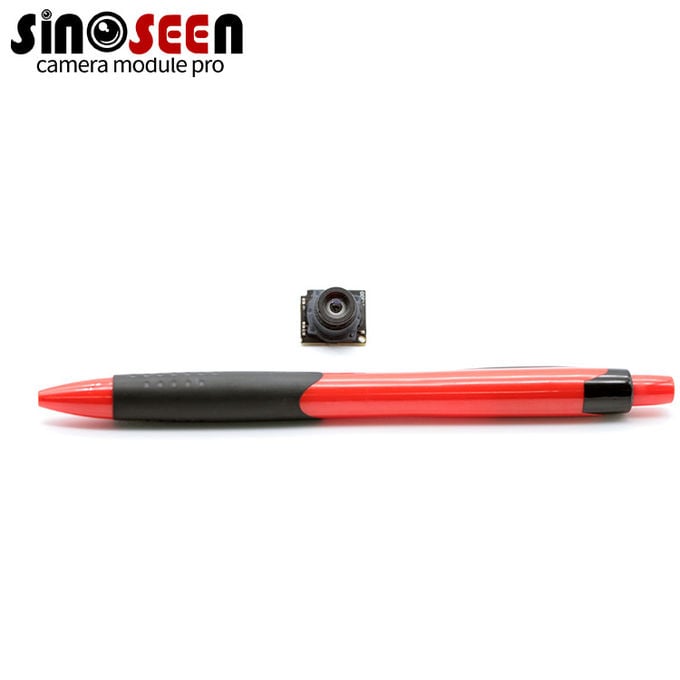

The VGA High Frame Rate 240FPS Monochrome HDR Global Shutter MIPI Camera Module is engineered for applications demanding high-speed imaging capabilities. With a VGA equivalent resolution of 640 x 480 pixels and the ability to capture video at an impressive frame rate of 240FPS, it excels in scenarios requiring swift image capture. Equipped with a monochrome HDR global shutter, this camera module ensures exceptional image quality in environments with varying brightness levels, making it particularly suitable for robotics and machine vision applications. Its global shutter function allows for precise timing of image capture, enhancing accuracy in applications requiring synchronized image acquisition. This module seamlessly integrates with host devices using standard interfaces and boasts a compact, lightweight design, making it versatile for use in a wide range of systems and applications.
Specification:Camera Module
|
Module No |
SNS-SC031GS-M1 |
|
Pixel Size |
3.744μm x 3.744μm |
|
Effective Pixels |
640H×480H |
|
Video output |
Raw Bayer10bit/8bit |
|
Active Array Size Video Rate |
240FPS |
|
Image Sensor |
1/6" |
|
Sensor Type |
Omnivision OV2685 |
|
Lens view |
FOV90°(optional),F/N(optional) |
|
TV Distortion |
<1% |
|
AEC |
Support |
|
AEB |
Support |
|
AGC |
Support |
|
Operating voltage |
AVDD:3.0~3.6V DOVDD:1.7~3.6V DVDD:1.7~1.9V |
|
Operating temperature |
0～60℃ |
|
Storage temperature |
-20～70℃ |
|
Dimensions |
Customizable |
Shenzhen Sinoseen Technology Co., LTD
China top 10 camera module manufacturer
If you are struggling to find the right camera module solution, please contact us,
we will customize all kinds of USB/MIPI/DVP interface camera modules according to your needs,
and have a dedicated team to provide you with the most suitable solution.
FAQ:
Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.
Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.
Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.
Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.
Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
