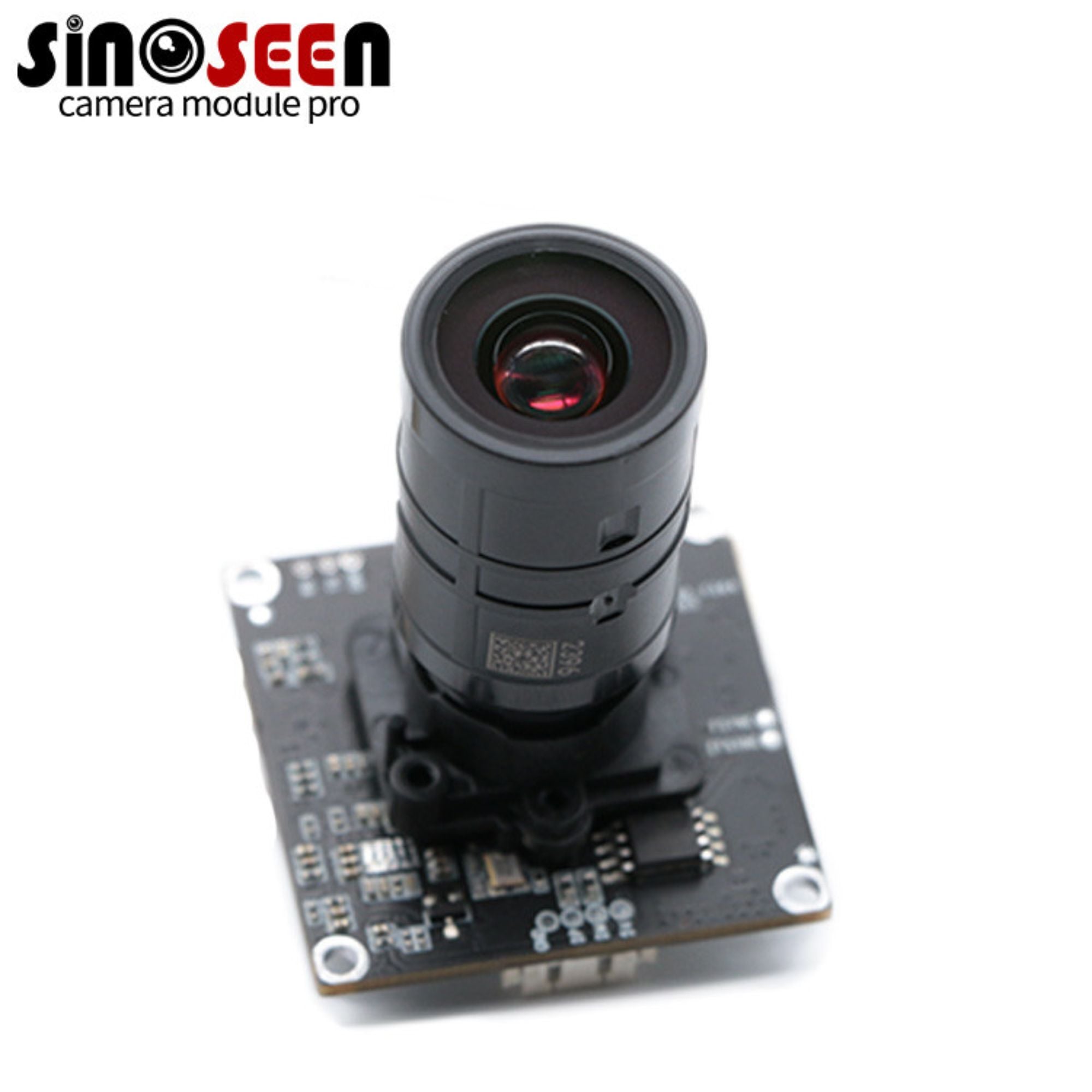

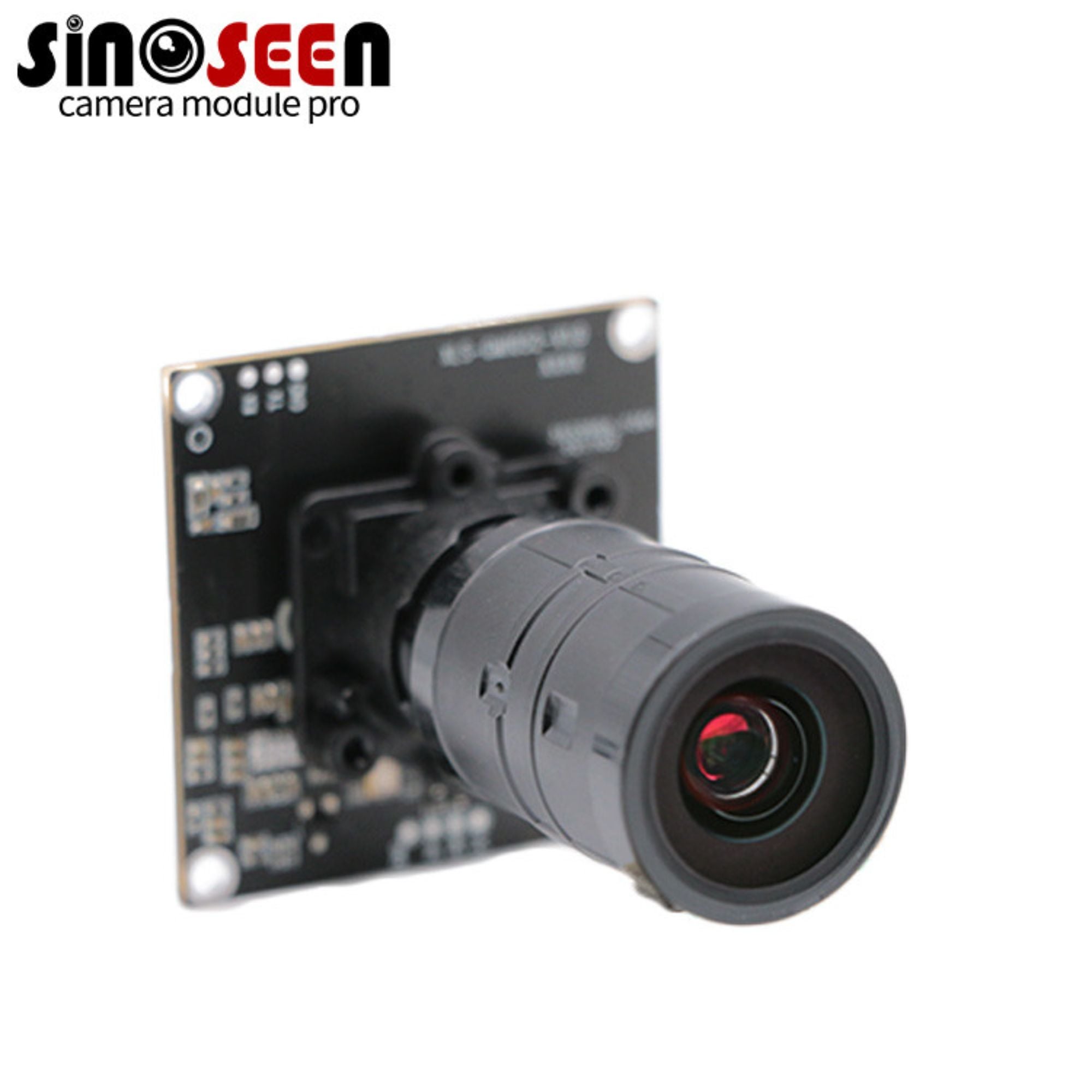

Vehicle Surveillance Night Vision 1080P HD SC2210 Black Optical Sensor
Product Details:
Place of Origin: |
Shenzhen,China |
Brand Name: |
Sinoseen |
Certification: |
RoHS |
Model Number: |
SNS-GM1052-V1.0 |
Payment & Shipping Terms:
Minimum Order Quantity: |
3 |
Price: |
negotiable |
Packaging Details: |
Tray+Anti-static bag in carton box |
Delivery Time: |
2-3weeks |
Payment Terms: |
T/T |
Supply Ability: |
500000 pieces/month |
- Parameter
- Related products
- Inquiry
- Detail Information
Type: |
Night VisionCamera Module |
Sensor: |
1/1.8" |
Resolution: |
1920(H)X1080(V) |
Dimensions: |
(customizable) |
Lens FOV: |
180°(optional) |
Focus Type: |
Fixed Focus |
Interface: |
USB2.0 |
Feature: |
WDR |
High Light: |
Starlight Night Vision USB Camera Module USB Camera Module 1920X1080p USB2.0 Night Vision Camera Module |
||
Product Description
This camera module captures high-definition images and videos using the SC2210 black optical sensor, designed for low-light performance and clear imaging in the dark.
It can be easily integrated into various applications by connecting it to a computer or other device via USB. Additionally, it has night vision capabilities, allowing it to capture images and videos in total darkness using infrared technology. This camera module is versatile and efficient, suitable for use in security systems, surveillance, and video conferencing.
Specification:Night Vision 1080P HD USB Camera Module
Sensor |
1/1.8" |
Most effective pixels |
1920(H)X1080(V) |
Pixel Size |
4.0μm x 4.0μm |
Compression format |
MJPG / YUY2 |
Resolution |
see above |
Frame rate |
see above |
Shutter Type |
Electronic rolling shutter |
Focus type |
Fixed focus |
S/N ratio |
TdB |
Dynamic range |
TdB |
Interface type |
USB2.0 |
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/ Gamma/White balance/Exposure |
Lens |
Focal length: 3.6mm |
|
FOV:D180° H180°V180°F/N(2.0) |
|
Thread Size: M12*P0.5 |
Audio frequency |
Support |
microphone |
Built-in |
Power supply |
USB BUS POWER |
Power consumption |
DC 5V, 200mA |
Main chip |
DSP/SENSOR/FLASH |
Auto Exposure Control (AEC) |
Support |
Auto White Balance (AEB) |
Support |
Auto Gain Control (AGC) |
Not Supported |
Storage temperature |
-20～80℃ |
Operating temperature |
0～60℃ |
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
Shenzhen Sinoseen Technology Co., LTD
China top 10 camera module manufacturer
If you are struggling to find the right camera module solution, please contact us, we will customize all kinds of USB/MIPI/DVP interface camera modules according to your needs, and have a dedicated team to provide you with the most suitable solution.
FAQ:
Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.
Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.
Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.
Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.
Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
