Smart Glasses MIPI Camera Module with NOVATEK NT99141 Auto White Balance HD

Smart Glasses MIPI Camera Module with NOVATEK NT99141 Auto White Balance HD

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Sinoseen
Certification:	RoHS
Model Number:	SNS-NT99141-M1

Payment & Shipping Terms:

Minimum Order Quantity:	3
Price:	negotiable
Packaging Details:	Tray+Anti-static bag in carton box
Delivery Time:	2-3weeks
Payment Terms:	T/T
Supply Ability:	500000 pieces/month

Inquiry

Parameter
Related products
Inquiry

Detail Information

Type:	MIPI Camera Module	Sensor:	1/4" Novatek NT99141
Resolution:	1MP 1280Hx720V	Dimensions:	Customizable
Lens FOV:	65°(optional)	Focus Type:	Fixed Focus
Interface:	MIPI	Feature:	HD
High Light:	NT99141 MIPI Camera Module 1MP 720P MIPI Camera Module NT99141 720p camera module

Product Description

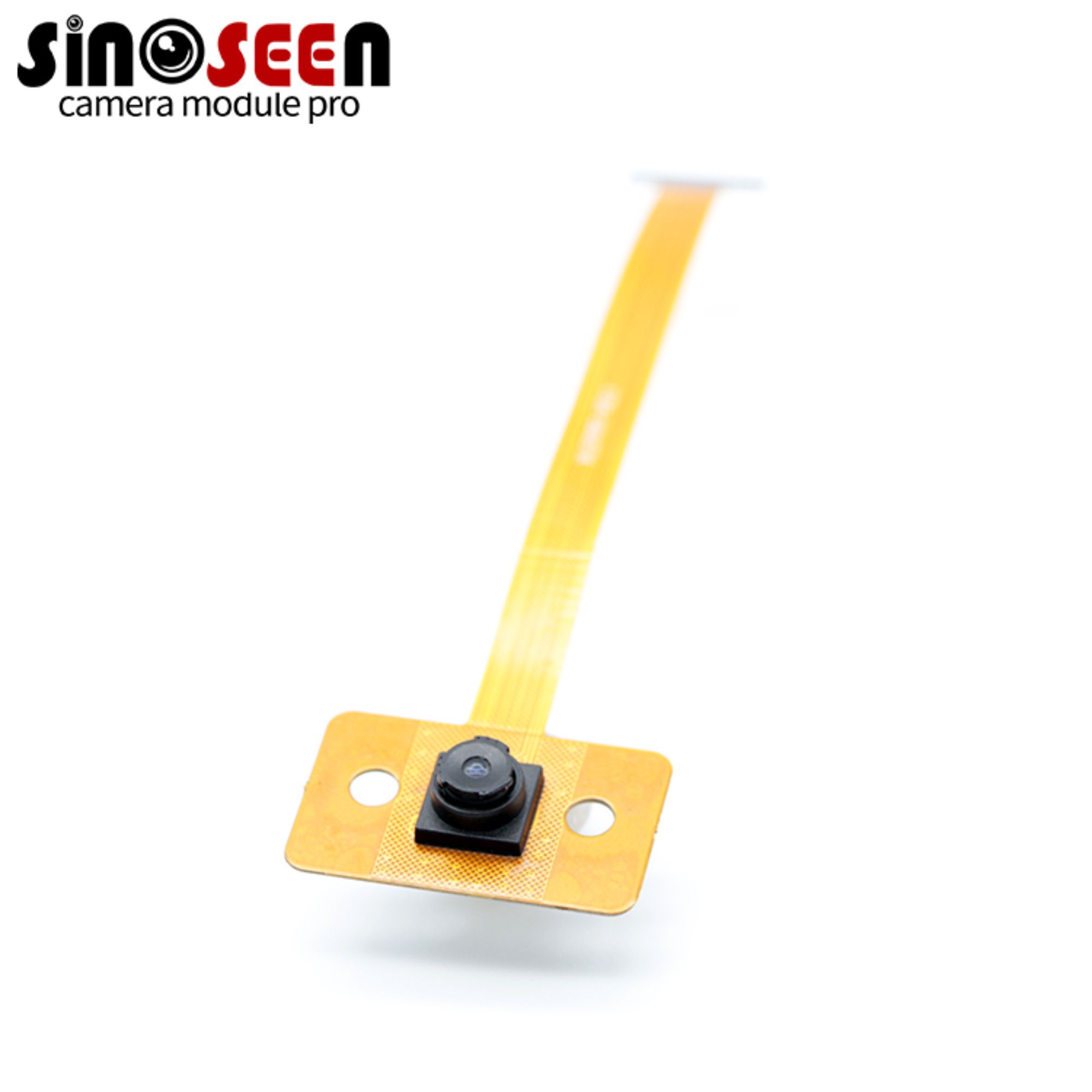

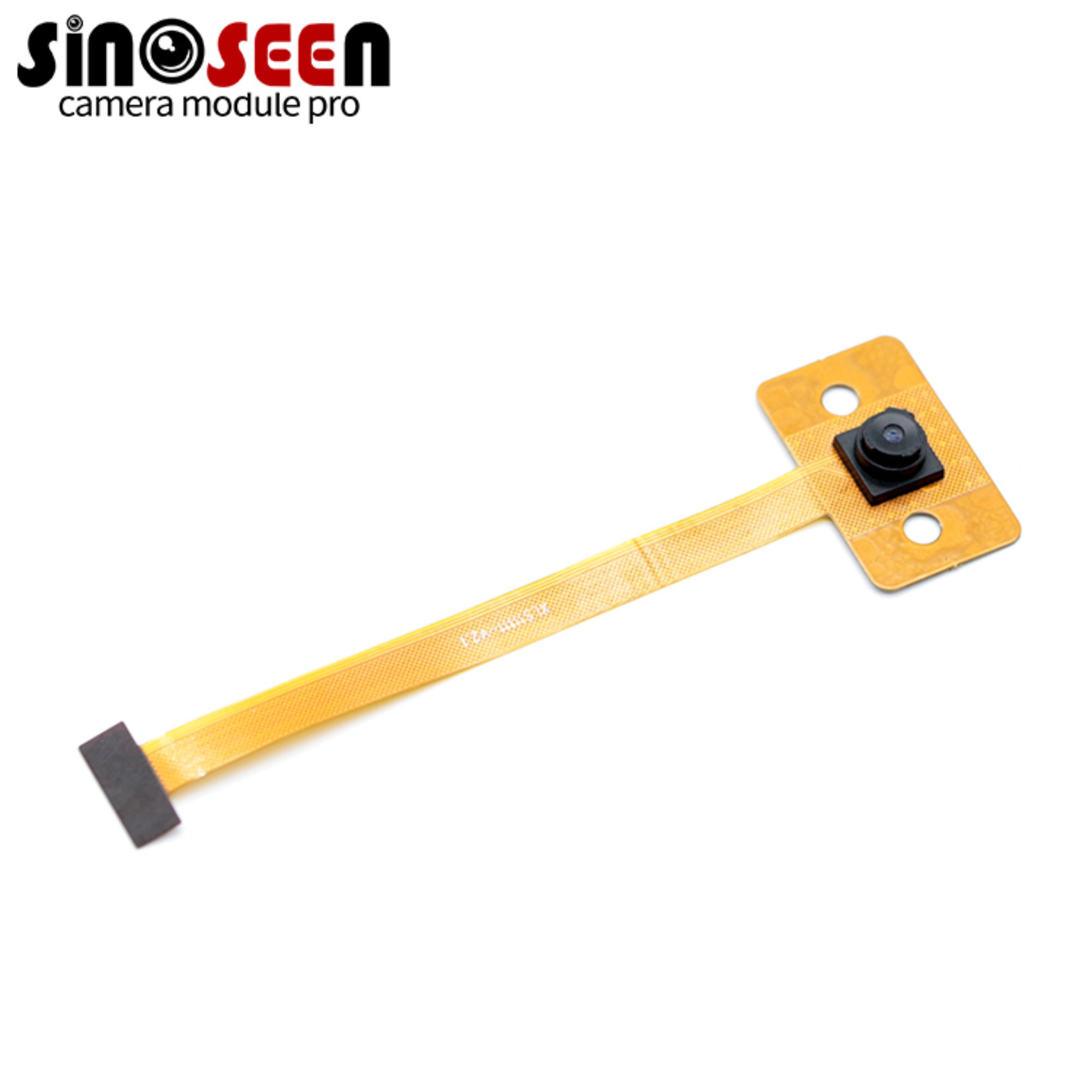

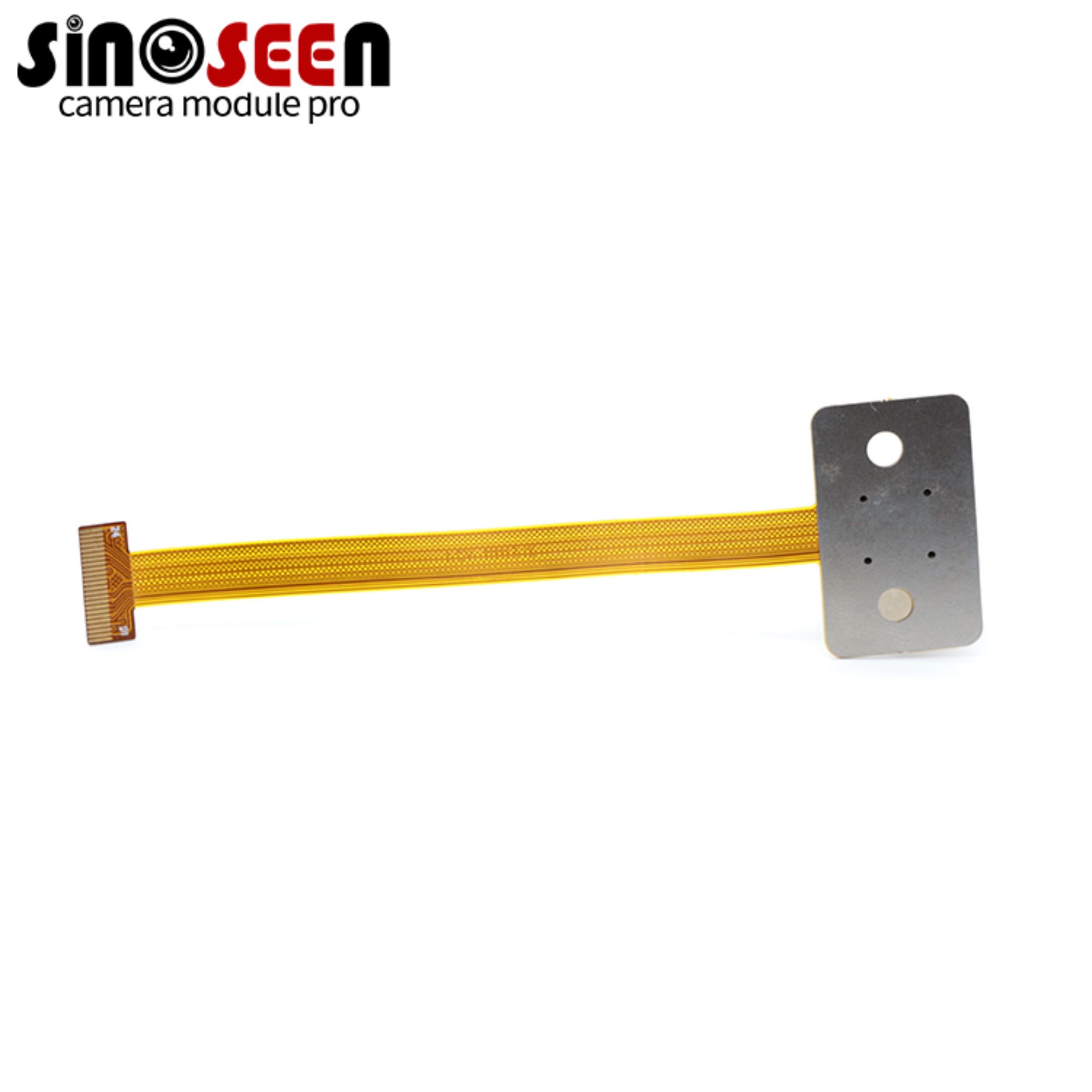

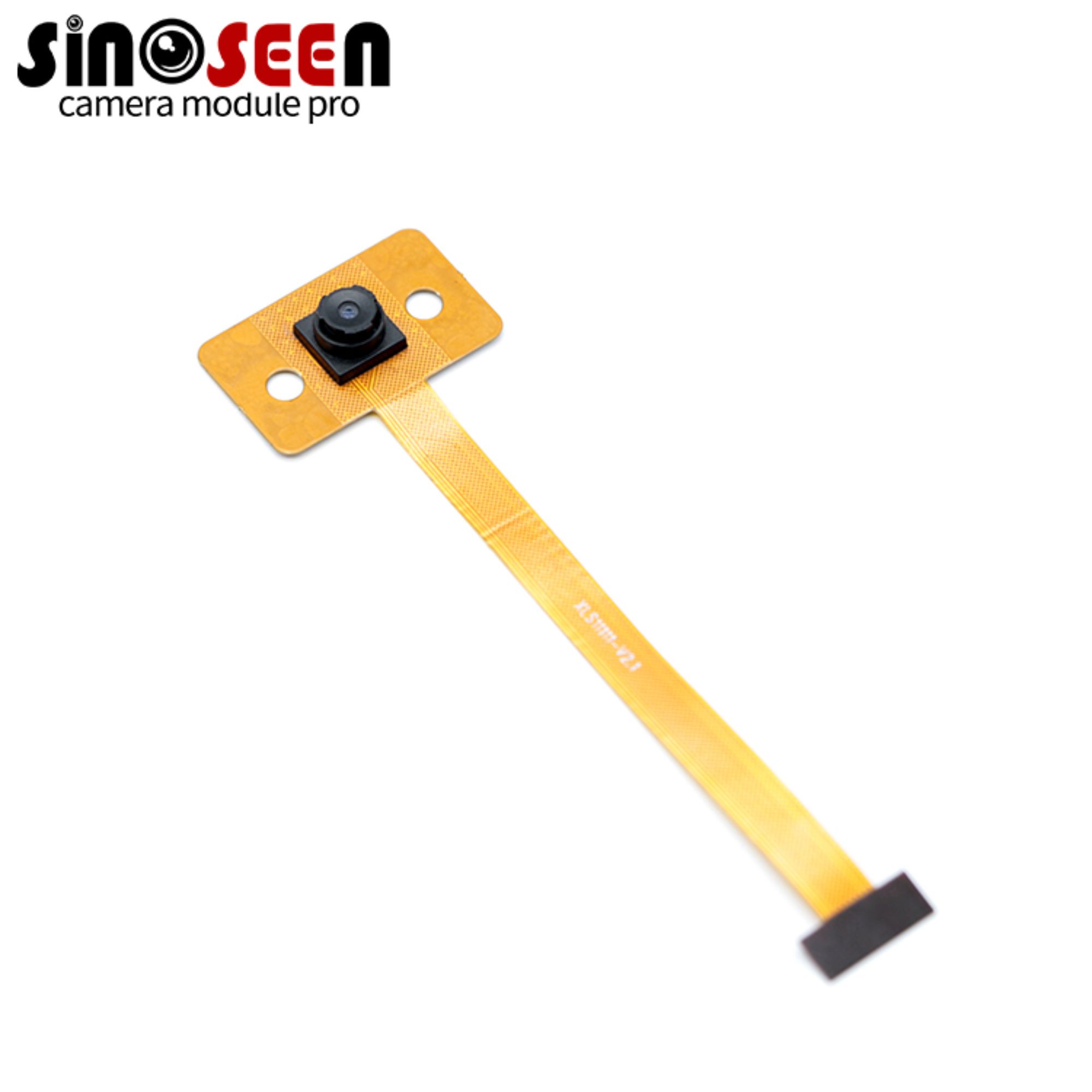

The MIPI camera module is a low-cost design that uses the 1/4" Novatek NT99141 sensor, a high-performance image sensor with an image resolution of 1280*720, a 10-bit ADC and an embedded image signal processor. All image signal processing functions are supported by default, including but not limited to sharpness, noise reduction, defect correction, color saturation adjustment, and more.

At the same time, the dual-wire serial interface ensures its easy control and its availability. Suitable for mobile phones, sports digital cameras, etc.

Specification

Module No	SNS-NT99141-M1
Pixel Size	3.0μm x 3.0μm
Effective Pixels	1280H×720H
Video output	Raw Bayer10bit/8bit
Active Array Size Video Rate	1280x720@30FPS;640x360@60FPS
Image Sensor	1/4"
Sensor Type	Novatek NT99141
Lens view	FOV65°(optional),F/N(optional)
TV Distortion	<1%
AEC	Support
AEB	Support
AGC	Support
Operating voltage	AVDD:3.0~3.6V DOVDD:1.7~3.6V DVDD:1.7~1.9V
Operating temperature	0～60℃
Storage temperature	-20～70℃
Dimensions	Customizable

Smart-Glasses-MIPI-Camera-NT99141
