OV9281 720P CMOS Camera Module - FPC+PCB, USB for Industrial Testing

OV9281 720P CMOS Camera Module - FPC+PCB, USB for Industrial Testing

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Sinoseen
Certification:	RoHS
Model Number:	XLS11558-V1.0

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	negotiable
Packaging Details:	Tray+Anti-static bag in carton box
Delivery Time:	2-3weeks
Payment Terms:	T/T
Supply Ability:	500000 pieces/month

Inquiry

Parameter
Related products
Inquiry

Detail Information

Type:	USB Camera Module	Sensor:	1/4" Omnivision OV9281 CMOS
Resolution:	1MP 1280(H) X 800(V)	Dimensions:	Customizable
Lens FOV:	60°(optional)	Focus Type:	Fixed Focus
Interface:	Type-C	Feature:	Global Shutter
High Light:	CMOS Compact Camera Module , FPC PCB Compact Camera Module , OV9281 1MP Camera Module

Product Description

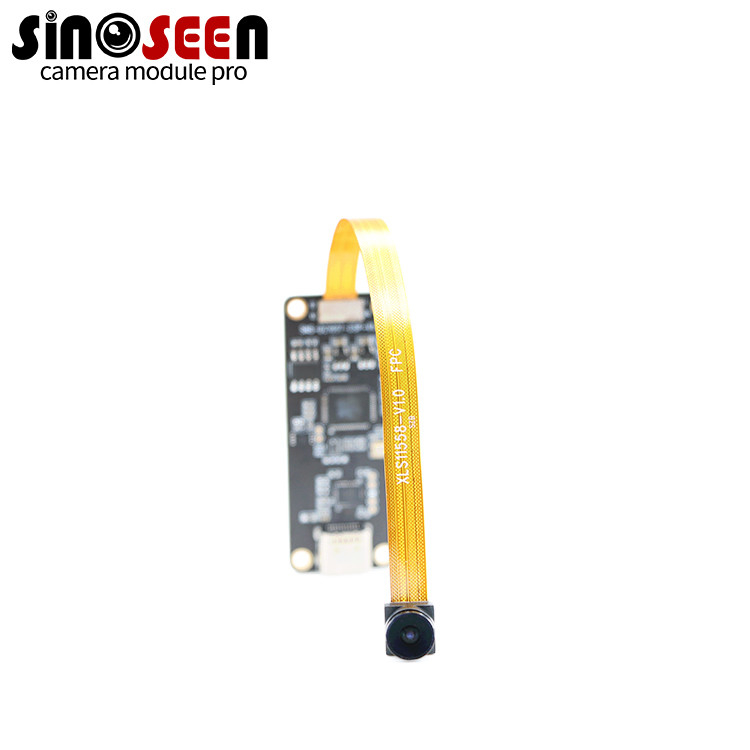

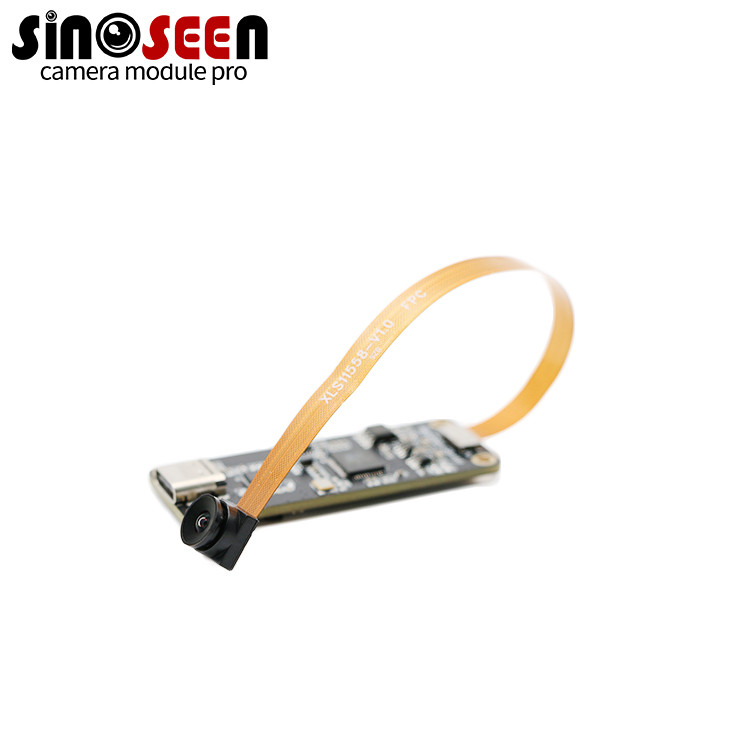

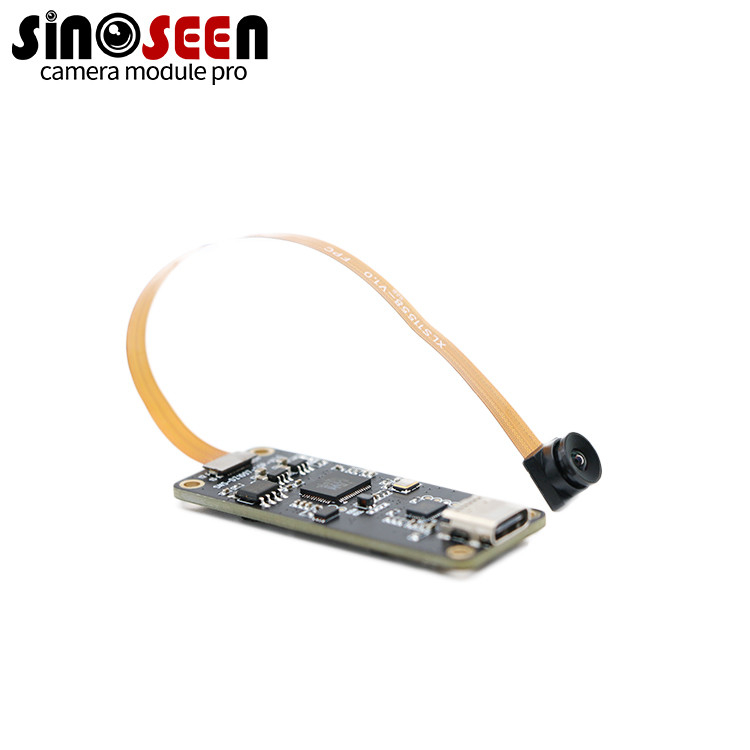

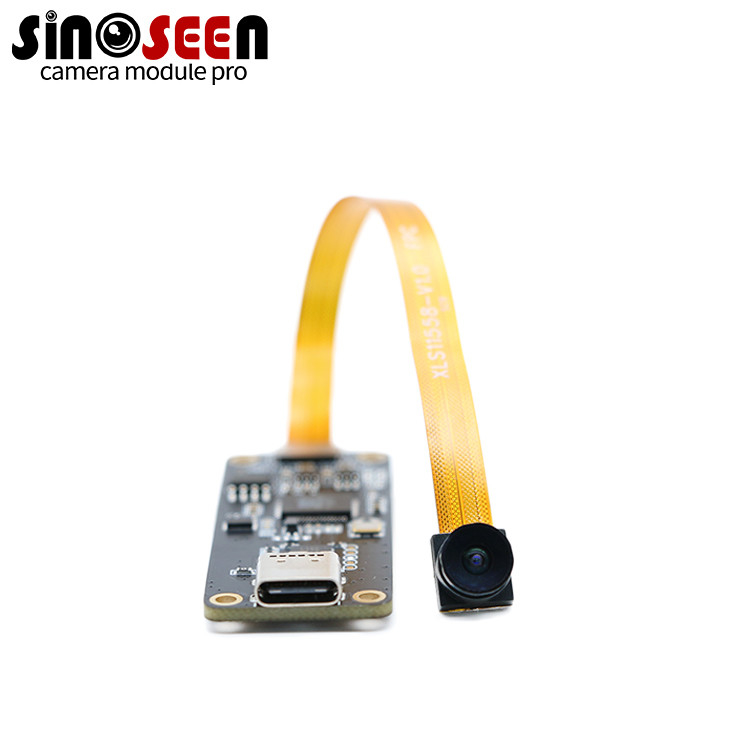

This Sinoseen OV9281 720P CMOS camera module is perfect for industrial testing. It features a 1MP sensor with a resolution of 1280x800 pixels. The FPC+PCB design ensures compactness and efficiency, making it suitable for monitoring systems and automotive applications. The global shutter mechanism captures precise images without distortion, while the USB2.0 interface provides easy connectivity. Choose this Sinoseen camera module for high performance and reliability in industrial environments.

Specification

Model No	XLS11558-V1.0
Sensor	1/4" Omnivision OV9281 CMOS
Pixel	1 Mega Pixel
Most effective pixels	1280(H) x 800(V)
Pixel Size	3.0µm x 3.0µm
Image area	3896um(H) x 2453um (V)
Compression format	MJPG / YUY2
Resolution & Frame rate	See above
Shutter Type	Global Shutter
Chroma	B&W, Monochrome
Focus type	Fixed focus
S/N ratio	38dB
Dynamic range	68dB
Dark current	80e-/sec
Interface type	High speed USB2.0
Adjustable parameter	Brightness/Contrast/Color saturation/Hue/Definition/ Gamma/White balance/Exposure
Lens	Focal length: 3.6mm
	Lens Size: 1/4 inch
	FOV: 60°
	Thread Size: M12*P0.5
Audio frequency	Optional
Power supply	USB BUS POWER
Power consumption	DC 5V, 180mW
Main chip	DSP/SENSOR/FLASH
Auto Exposure Control	Support
Auto White Balance	Support
Auto Gain Control	Support
Dimension	Customizable
Storage temperature	-20°C to 70°C
Operating temperature	0°C to 60°C
USB cable length	Default
Support OS	WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC
