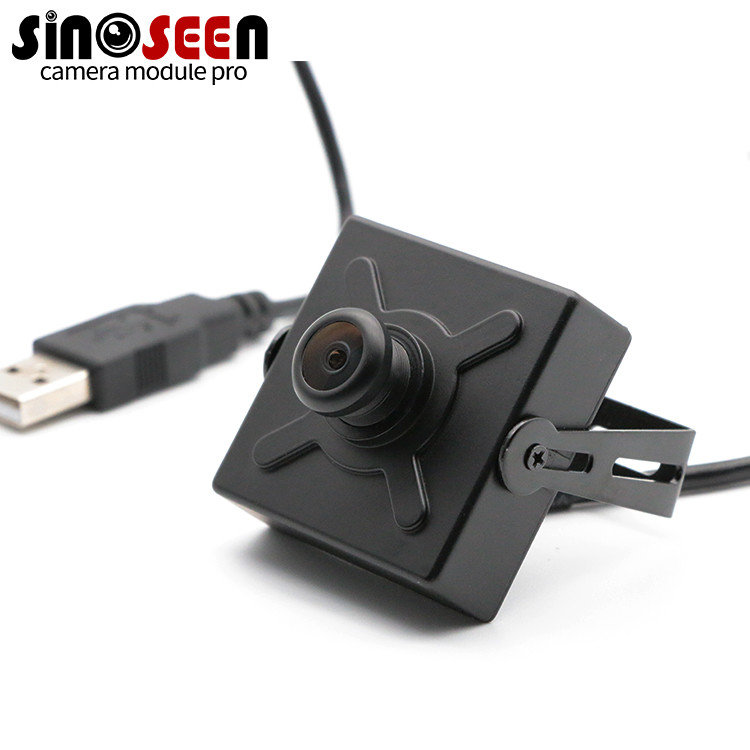

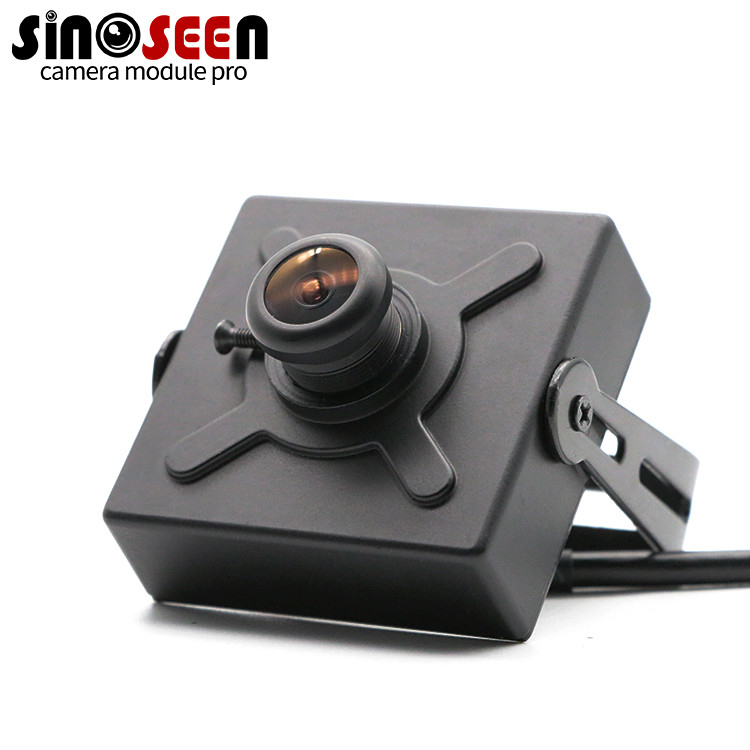

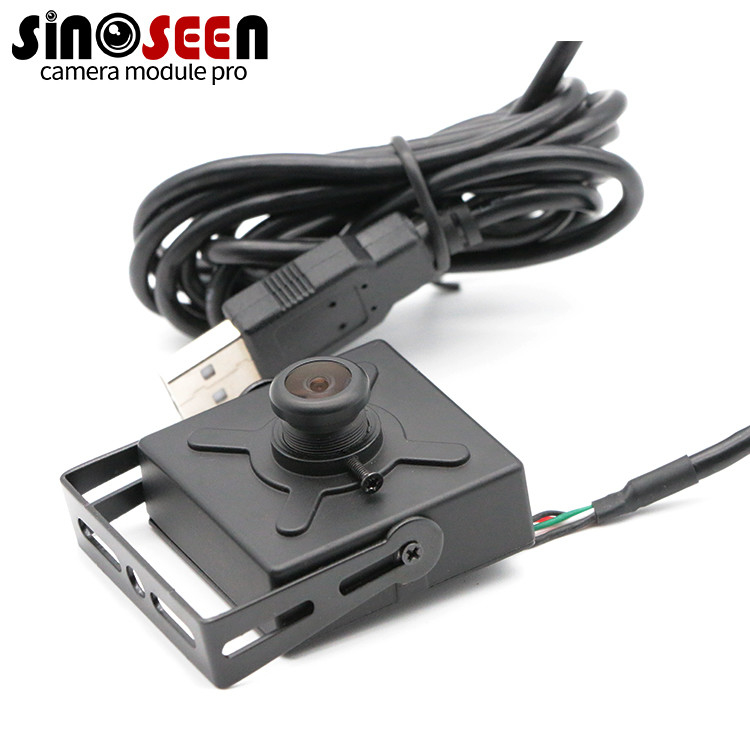

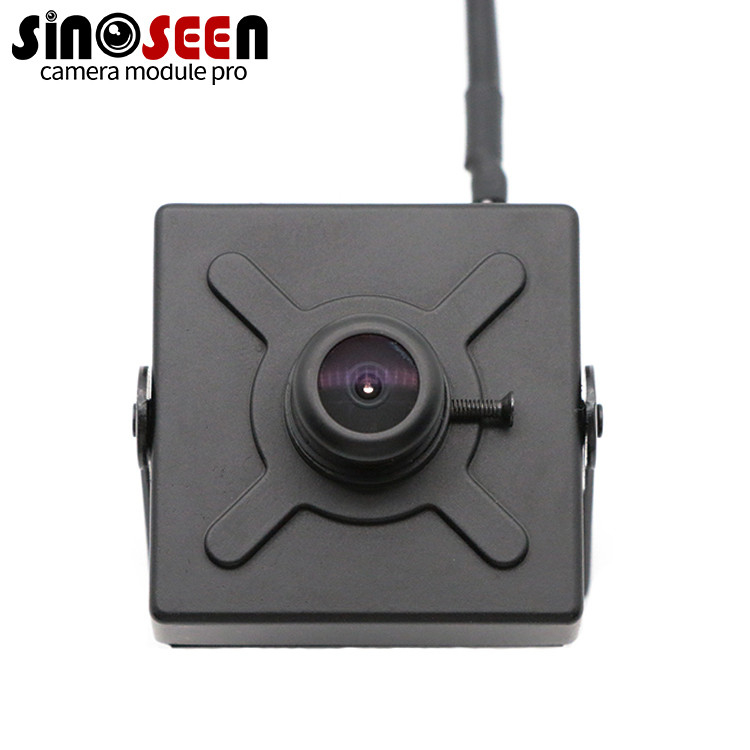

OEM High Frame Rate OV7725 0.3MP USB2.0 Camera Module for Machine Vision

OEM High Frame Rate OV7725 0.3MP USB2.0 Camera Module for Machine Vision

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Sinoseen
Certification:	RoHS
Model Number:	SNS-OV7725-1.0

Payment & Shipping Terms:

Minimum Order Quantity:	3
Price:	negotiable
Packaging Details:	Tray+Anti-static bag in carton box
Delivery Time:	2-3weeks
Payment Terms:	T/T
Supply Ability:	500000 pieces/month

Inquiry

Parameter
Related products
Inquiry

Detail Information

Type:	USB Camera Module	Sensor:	OV7725
Resolution:	0.3MP HD 640x480	Dimensions:	Customizable
Pixel Size:	6.0 µm X 6.0 µm	Focus Type:	Fixed Focus
Interface:	USB2.0	Feature:	Small FOV
High Light:	60fps USB 2.0 Camera Module , OV7725 Sensor USB 2.0 Camera Module , 0.3MP 60fps OEM Camera Modules

Product Description

The OV7725 camera chip, a low-voltage CMOS device, powers this module, capturing 640×480 8-bit grayscale or 16-bit RGB565 images at 60FPS, as well as 320×240 resolution images. Its compact design and versatile functionality make it perfect for embedding in a wide range of devices.

Key features of the SNS-OV7725-1.0 include automatic exposure control (AEC), automatic white balance (AWB), and automatic gain control (AGC), ensuring high-quality image capture under varying lighting conditions. The module's adjustable parameters, such as brightness, contrast, color saturation, hue, definition, gamma, and exposure, provide flexibility to meet specific application needs.

Specification

Module No	SNS-OV7725-1.0
Pixel Size	6.0 µm x 6.0 µm
Effective Pixels	HD 640 x 480
Video output	YUV2 MJPG
Active Array Size Video Rate	640x480 @30 fps 320x240 @ 30fps 240x180@ 30fps
Image Sensor	ov7725
SNR max	50dB
Dynamic range	60dB
OTG	USB2.0 OTG
AEC	Support
AEB	Support
AGC	Support
Adjustable parameter	Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure
Lens total ray angle	25° nonlinear
Interface	USB BUS POWER 5P-1.25mm
Operating Voltage	DC5V
Operating Current	MAX120MMA
Operating temperature	-20°C +70°C
Storage temperature	-40°C +125°C
Cable length	Defualt
OS	WinXP/Vista/Win7/Win8 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC
