Metal Waterproof Case Night Vision in Outdoor Surveillance 1MP With Bracket

Metal Waterproof Case Night Vision in Outdoor Surveillance 1MP With Bracket

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Sinoseen
Certification:	RoHS
Model Number:	SNS-1MP-H62-H2

Payment & Shipping Terms:

Minimum Order Quantity:	3
Price:	negotiable
Packaging Details:	Tray+Anti-static bag in carton box
Delivery Time:	2-3weeks
Payment Terms:	T/T
Supply Ability:	500000 pieces/month

Inquiry

Parameter
Related products
Inquiry

Detail Information

Type:	Night Vision Camera Module	Sensor:	1/4" SOI JX-H62
Resolution:	1MP 1296 (H) X 732 (V)	Dimensions:	Customizable
Lens FOV:	100°(optional)	Focus Type:	Fixed Focus
Interface:	USB2.0	Feature:	Waterproof
High Light:	1MP Car Security Camera Module JX-H62 Car Security Camera Module 1MP Car USB camera module

Product Description

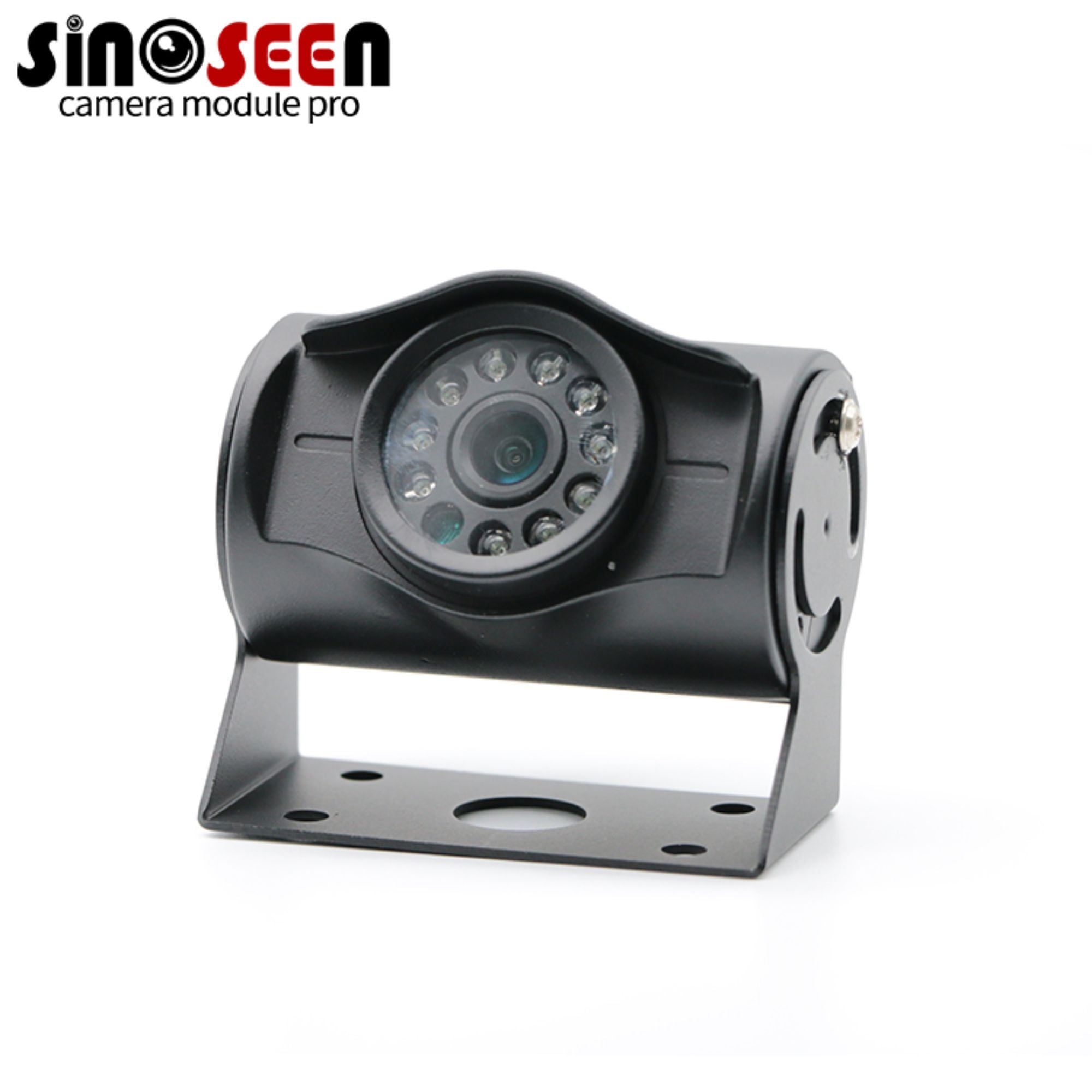

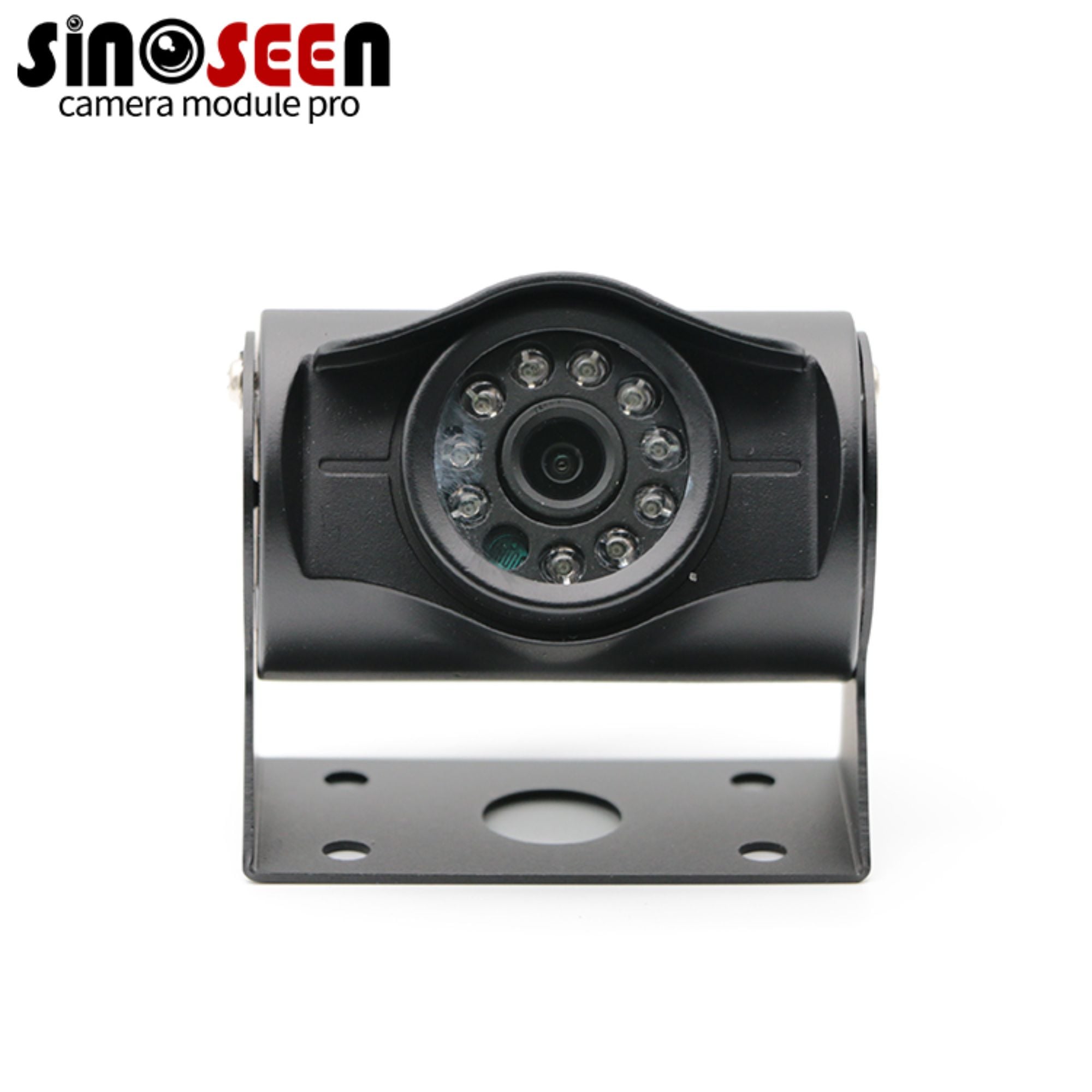

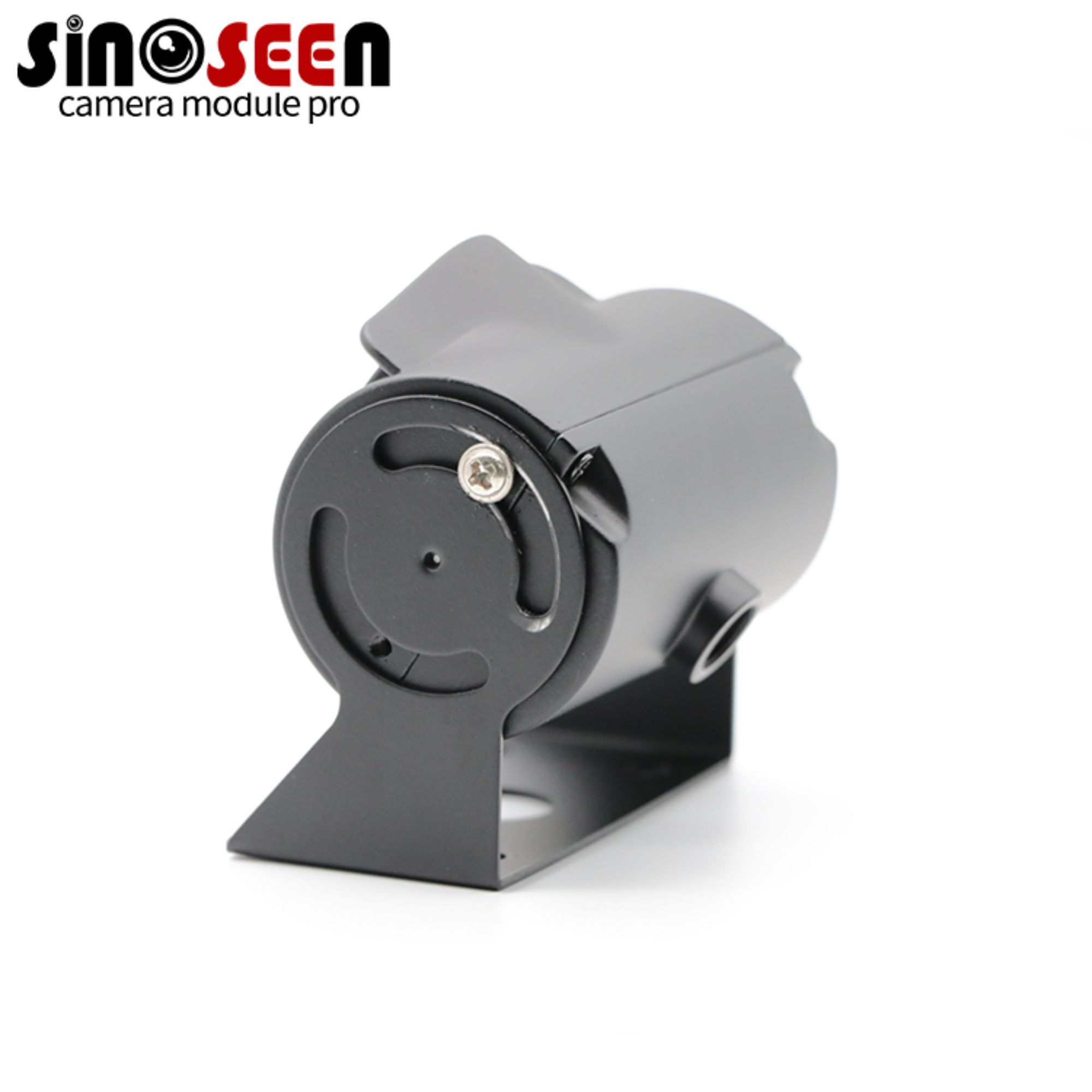

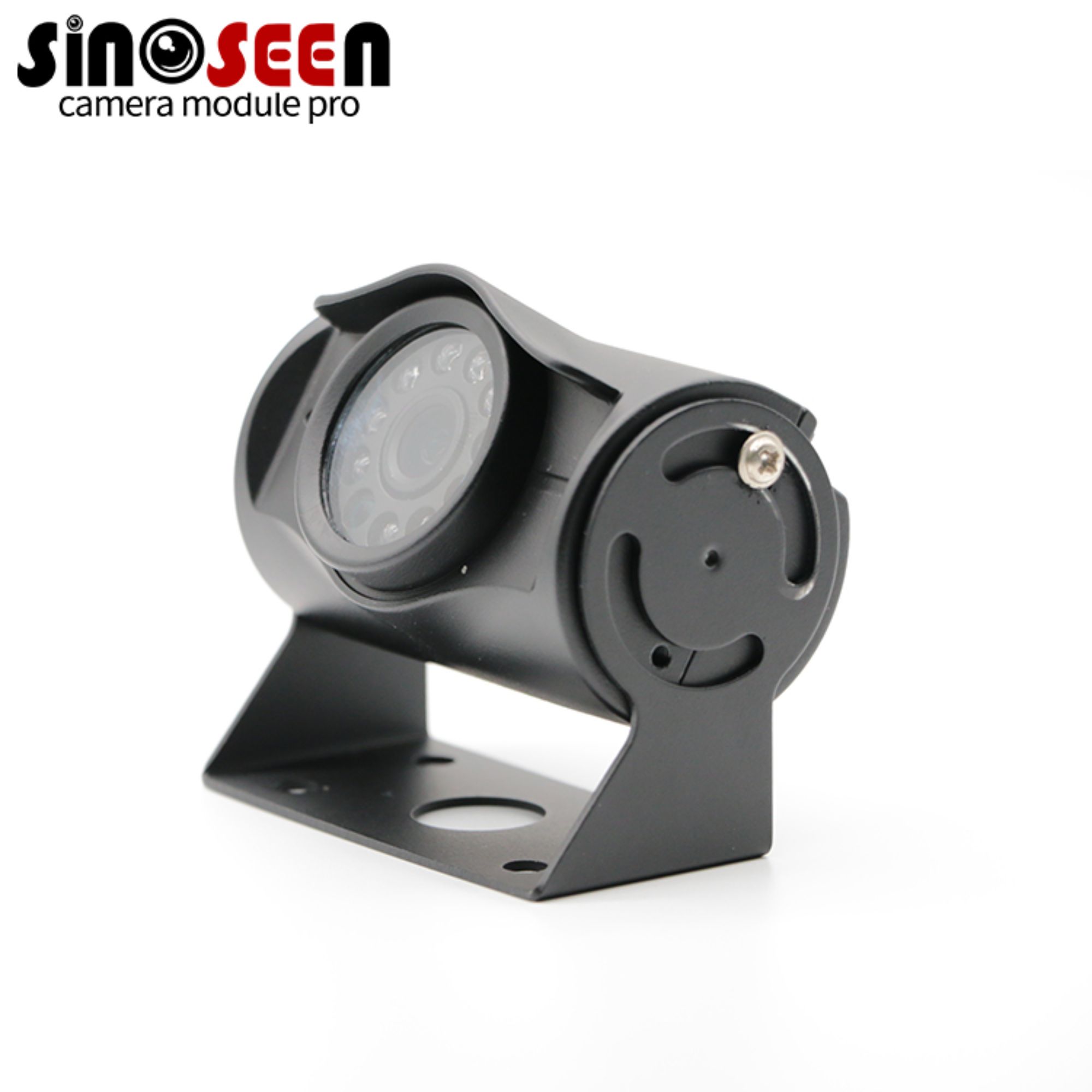

This is a USB car surveillance camera with a waterproof metal case and a 1MP image sensor (H62) that is both economical and effective. The bracket angle is adjustable up to 180° for added convenience.

The all-aluminum alloy shell and transparent glass panel are designed with a waterproof rubber gasket for outdoor use without worry of water damage.

Specification

Model No	SNS-1MP-H62-H2
Sensor	1/4’’ SOI JX-H62
Pixel	1 Mega Pixel
Most effective pixels	1296 (H) x 732 (V)
Pixel Size	3.0µm x 3.0µm
Resolution	1280x720; 640x480; 320x240;
Frame Rate	30fps
Compression format	MJPEG / YUV2 (YUYV)
Shutter Type	Electronic rolling shutter
Sensitivity	4300 mV/lux-sec
Focus type	Fixed focus/Manually adjustable
S/N ratio	37dB
Dynamic range	72dB
Interface type	USB 2.0
Adjustable parameter	Brightness/Contrast/Color saturation/Hue/Definition/ Gamma/White balance/Exposure
Lens	Focal length: 1.7mm
	Lens size: 1/2.5’’
	FOV: 100°
	Thread size: M12*P0.5
Power consumption	DC5V, 100mA
Main chip	DSP/SENSOR/FLASH
Auto Exposure Control	Support
Auto White Balance (AEB)	Support
Auto Gain Control (AGC)	Support
Dimension	Customizable
Operating temperature	-30°C to 85°C
USB cable length	Default
Support OS	WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC

Night-Vision-in-Outdoor-Surveillance

Shenzhen Sinoseen Technology Co., LTD

China top 10 camera module manufacturer

If you are struggling to find the right camera module solution, please contact us, we will customize all kinds of USB/MIPI/DVP interface camera modules according to your needs, and have a dedicated team to provide you with the most suitable solution.

Camera module customizationsuggestion

According to the actual application scenarios and functional goals, the camera module needs to comprehensively consider the product structure size, image clarity, frame rate, lens angle, lighting scene and other factors to select the appropriate sensor, lens and solution. needs customization. These products are only used for customer testing DEMO,please contact our customer service to inform you which product you want to use the camera module on? What function is implemented? Are there any special requirements? According to cost targets and other comprehensive factors, we help you choose the right sensor+ lens solution, and then design the product PCB or FPC according to the structural requirements.

examples: the customer is going to make a person recognition and comparison machine. If it is used in a well-lit indoor environment, we recommend that customers use ordinary lenses and sensors. If the light or backlight is not good, we recommend customers to use WDR wide dynamic sensor. If customers have high requirements for safety, we recommend that customers use WDR and black and white infrared binocular recognition camera modules. When determining the sensor and lens plan, the customer should adjust the color, white balance and saturation parameters according to the actual environment to achieve the target effect.
