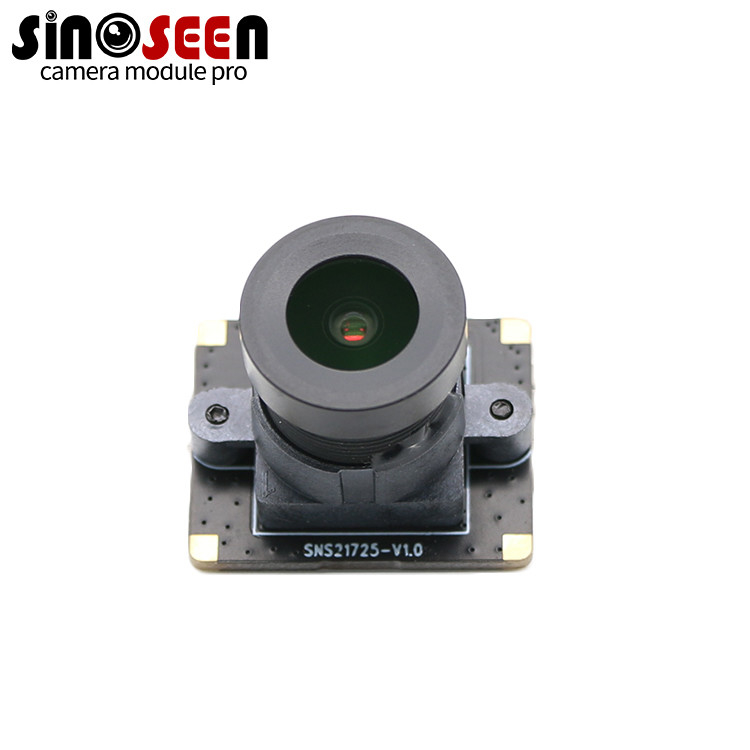

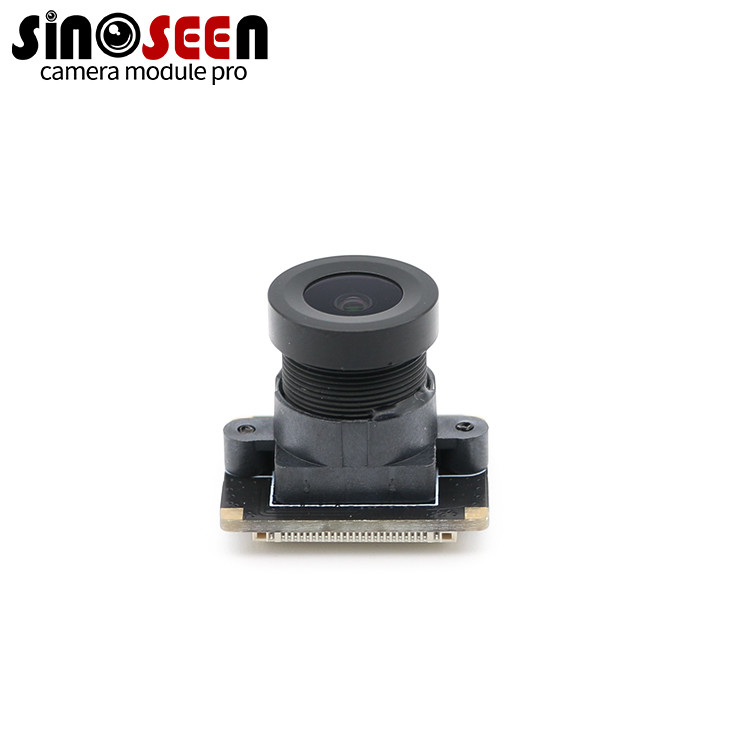

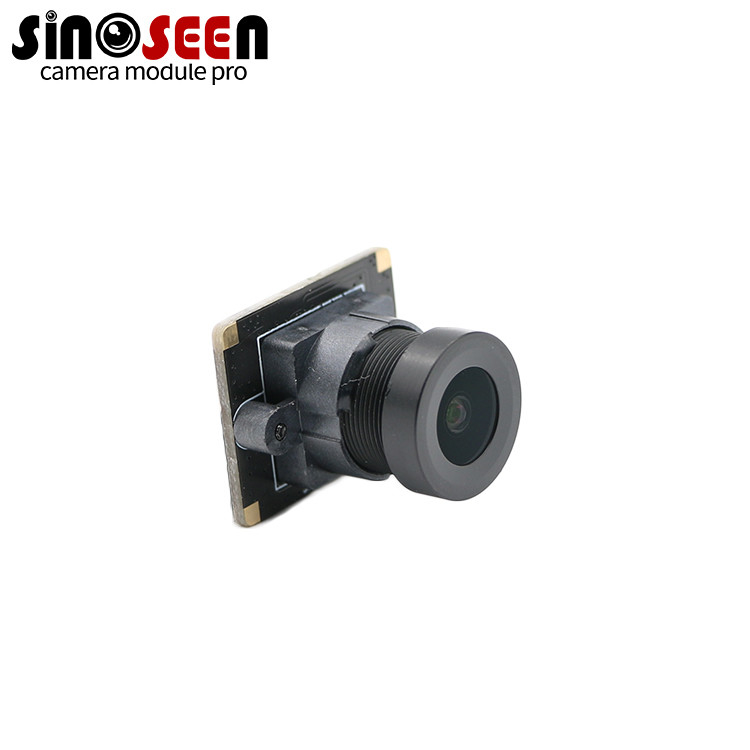

IMX323 2MP CMOS Compact MIPI Camera Module with Variable Speed Shutter

IMX323 2MP CMOS Compact MIPI Camera Module with Variable Speed Shutter

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Sinoseen
Certification:	RoHS
Model Number:	SNS21725-V1.0

Payment & Shipping Terms:

Minimum Order Quantity:	3
Price:	negotiable
Packaging Details:	Tray+Anti-static bag in carton box
Delivery Time:	2-3weeks
Payment Terms:	T/T
Supply Ability:	500000 pieces/month

Inquiry

Parameter
Related products
Inquiry

Detail Information

Type:	Camera Module	Sensor:	1/2.9"
Resolution:	H1985*V1105	Dimensions:	(customizable)
Lens FOV:	180°(optional)	Focus Type:	Fixed Focus
Interface:	MIPI	Feature:	Variable Speed Shutter
High Light:	Compact IMX323 Camera Module , Compact 2MP Camera Module , CMOS MIPI Camera Module

Product Description

The IMX323 2MP CMOS Compact MIPI Camera Module is a high-quality, full HD camera module designed for a range of applications including mobile phones and other digital devices. Featuring the IMX323 image sensor, this module delivers excellent image quality with low power consumption and fast readout speeds. Its compact design makes it ideal for integration into small and slim devices, ensuring a sleek form factor for modern portable products.

One of the standout features of this camera module is its variable speed shutter. This functionality allows users to adjust the shutter speed, enabling optimal exposure in various lighting conditions—from bright outdoor scenes to low-light environments. By controlling the shutter speed, users can capture well-exposed images, eliminating issues of over- or underexposure.

Specification

Sensor	1/2.9"
Most effective pixels	H1985*V1105
Pixel Size	2.8μm x 2.8μm
Compression format	MJPG / YUY2
Resolution	see above
Frame rate	see above
Shutter Type	Electronic rolling shutter
Focus type	Fixed focus
S/N ratio	TdB
Dynamic range	TdB
Interface type	mipi
Adjustable parameter	Brightness/Contrast/Color saturation/Hue/Definition/ Gamma/White balance/Exposure
Lens	Focal length: 3.6mm
	FOV:D180° H180°V180°F/N(2.0)
	Thread Size: M12*P0.5
Audio frequency	Support
microphone	Built-in
Power supply	USB BUS POWER
Power consumption	DC 5V, 200mA
Main chip	DSP/SENSOR/FLASH
Auto Exposure Control (AEC)	Support
Auto White Balance (AEB)	Support
Auto Gain Control (AGC)	Not Supported
Storage temperature	-20～80℃
Operating temperature	0～60℃
USB cable length	Default
Support OS	WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC
