GC2145 2MP Advanced Colonoscopy Gastroscopy Endoscope Imaging Module

GC2145 2MP Advanced Colonoscopy Gastroscopy Endoscope Imaging Module

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Sinoseen
Certification:	RoHS
Model Number:	SNS-2MP-GC2145-V1

Payment & Shipping Terms:

Minimum Order Quantity:	3
Price:	negotiable
Packaging Details:	Tray+Anti-static bag in carton box
Delivery Time:	2-3weeks
Payment Terms:	T/T
Supply Ability:	500000 pieces/month

Inquiry

Parameter
Related products
Inquiry

Detail Information

Type:	Endoscope Camera Module	Sensor:	1/5" GalaxyCore GC2145
Resolution:	2MP (1600*1200)	Dimensions:	Customizable
Lens FOV:	60°(optional)	Focus Type:	Fixed Focus
Interface:	USB2.0	Feature:	Endoscope Camera
High Light:	Endoscopic Microcontroller Camera Module GC2145 Microcontroller Camera Module GC2145 Camera Module

Product Description

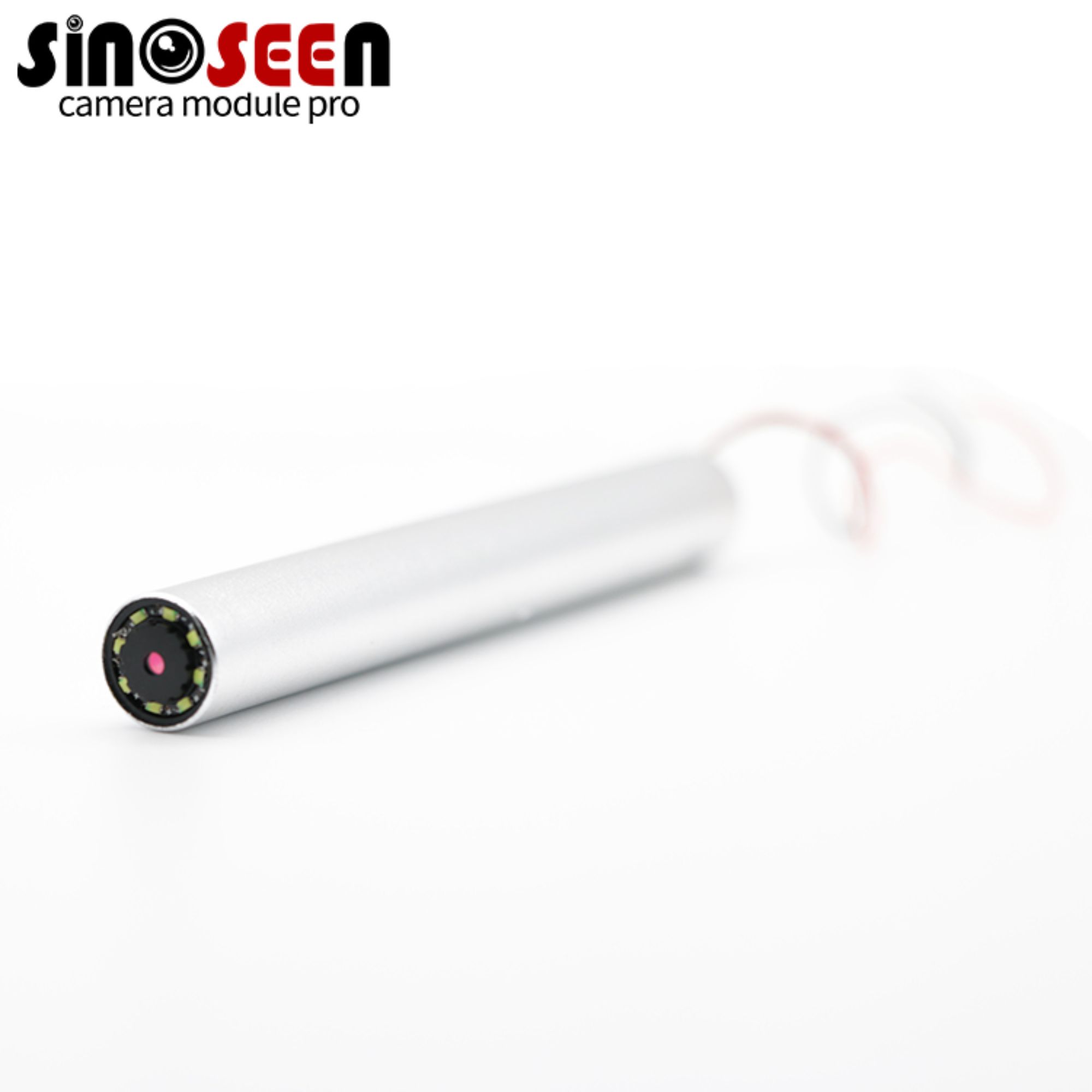

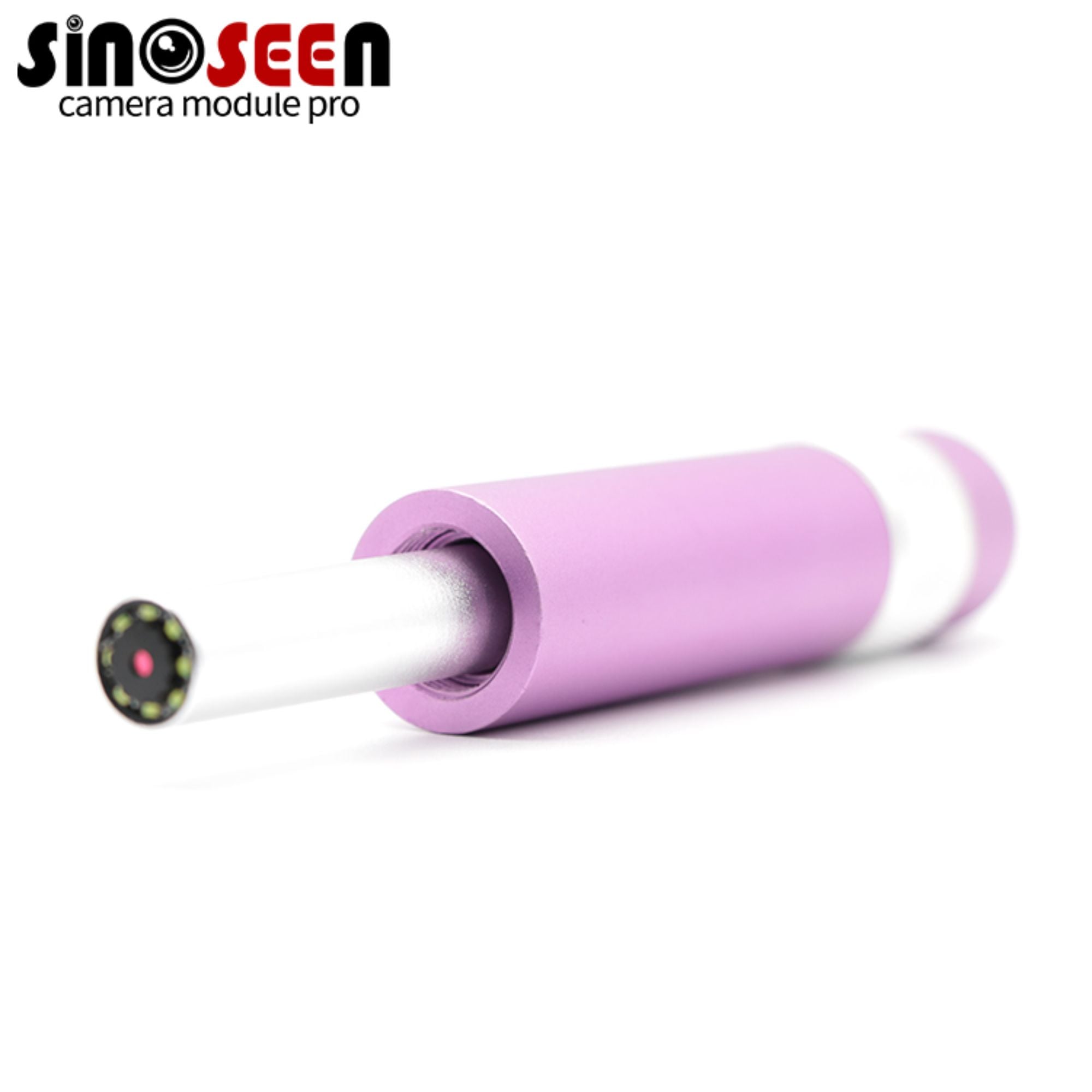

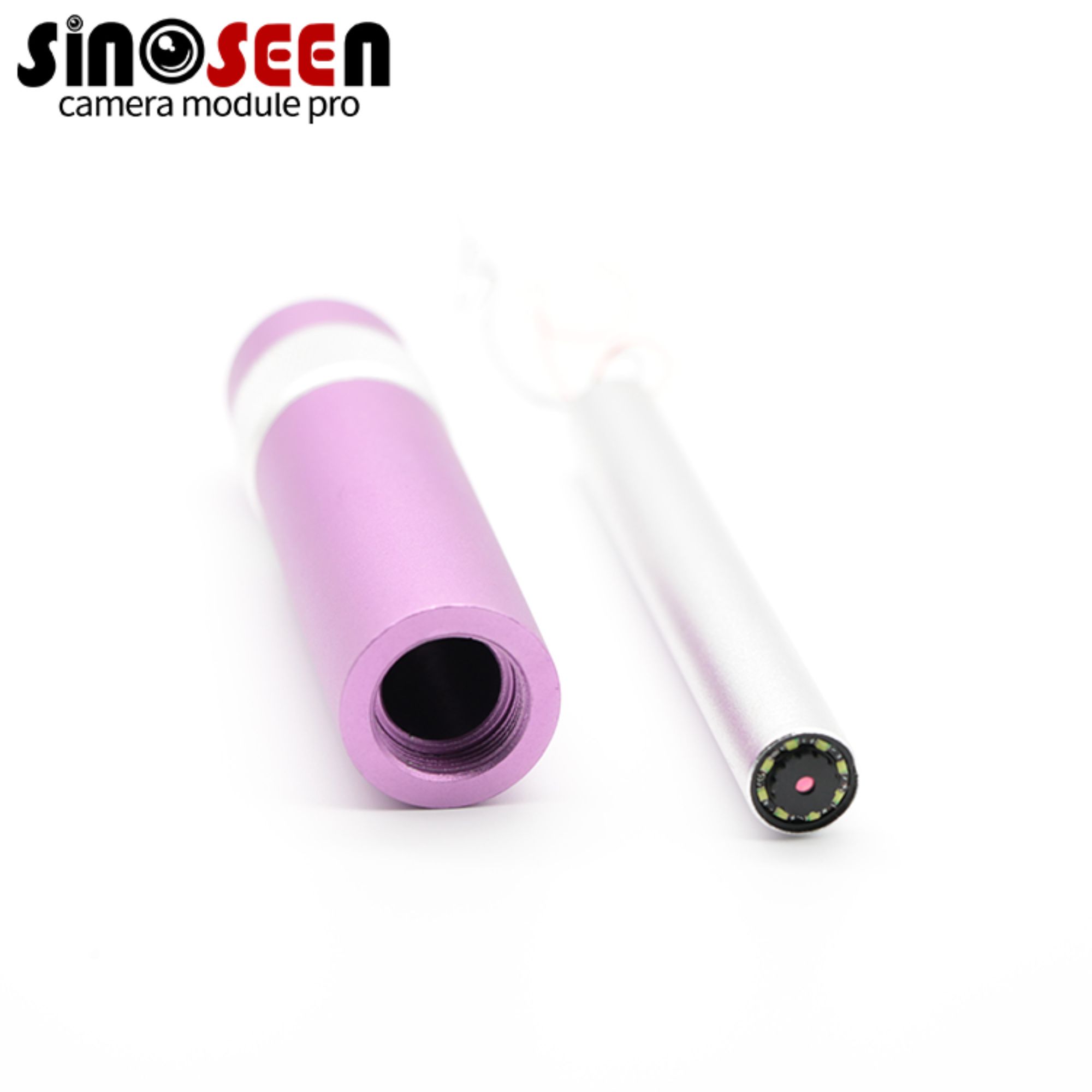

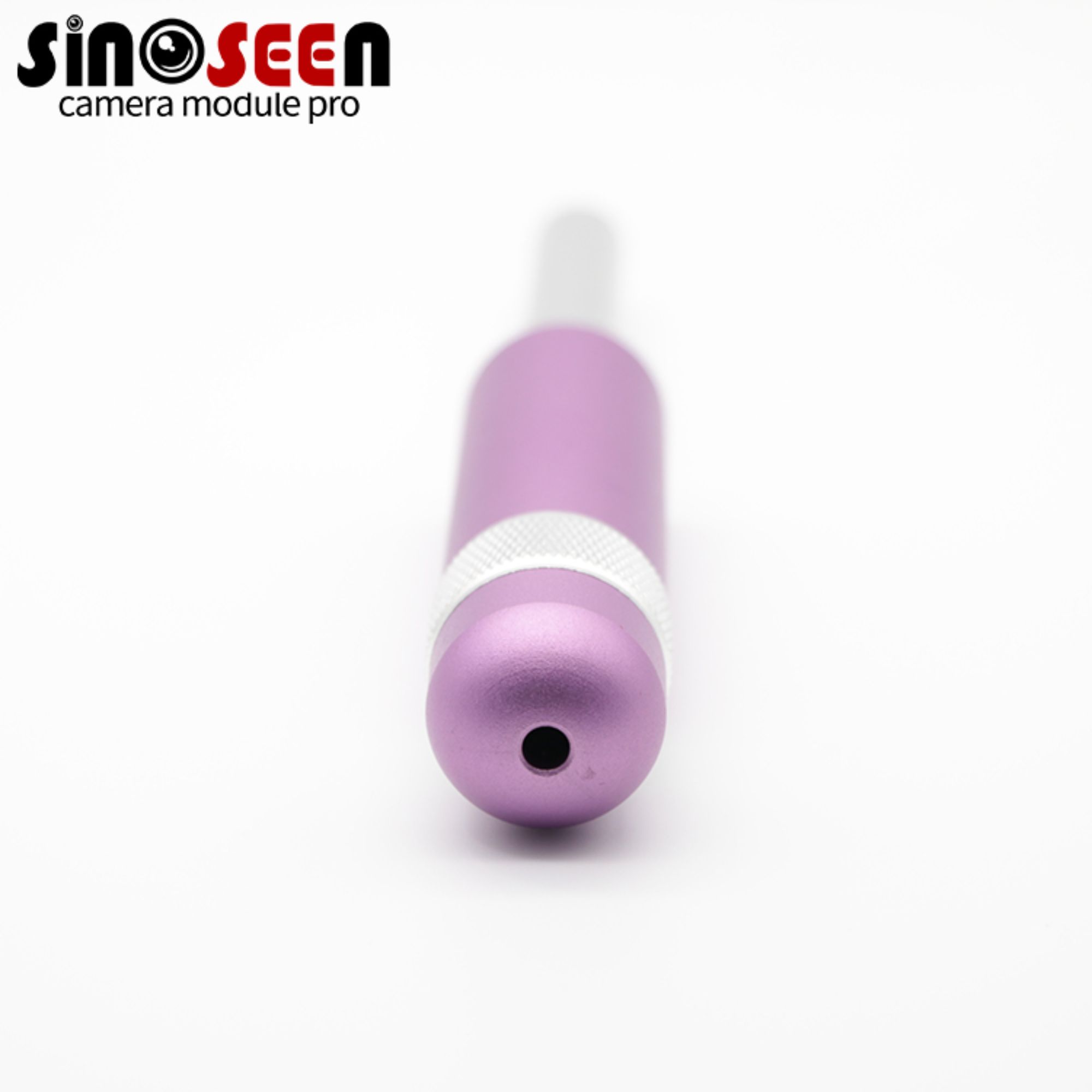

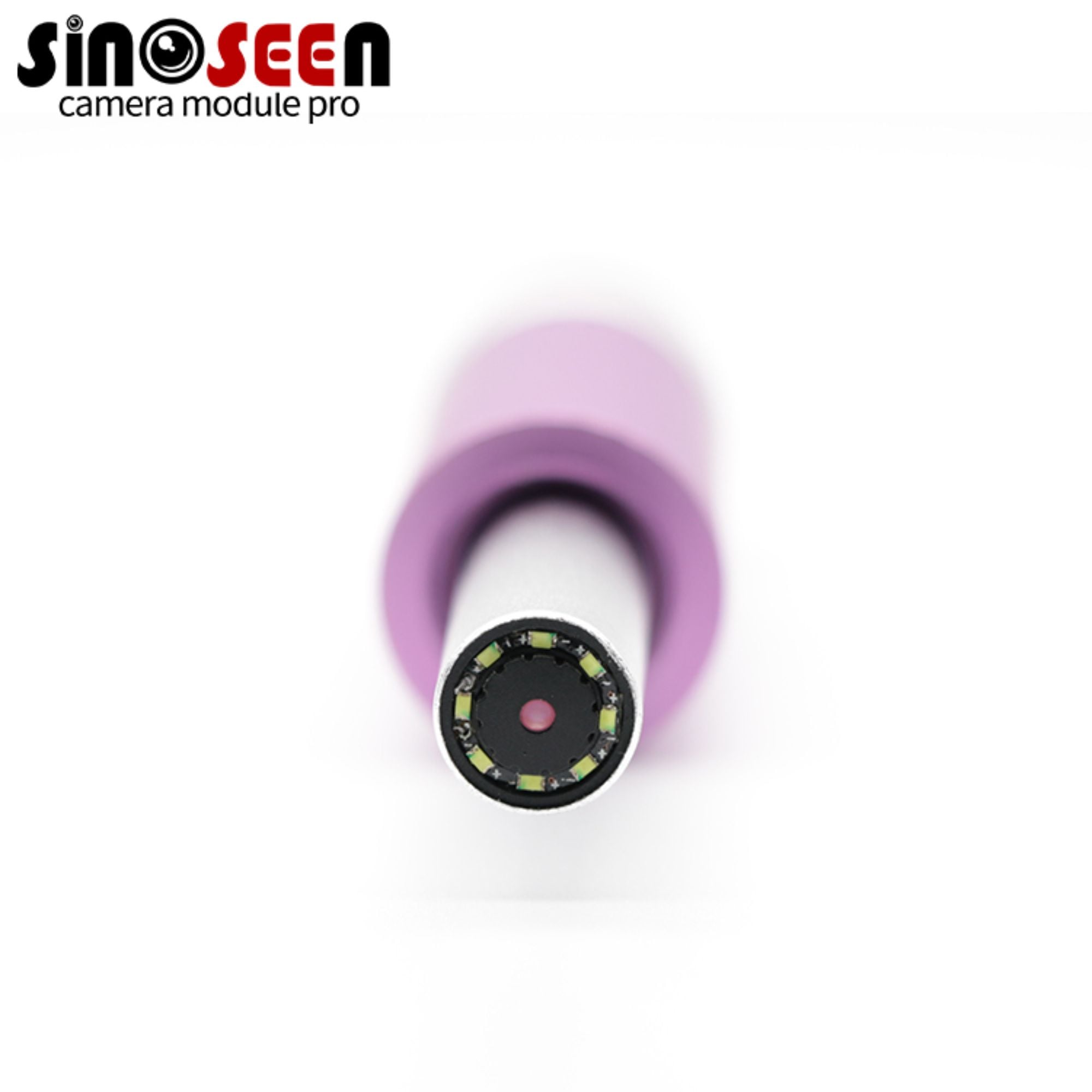

This is a customisable 2MP USB camera module featuring GC2145. Its compact design makes it suitable for use in female vaginal examinations. The camera module is housed in an environmentally friendly aluminium alloy casing, with LED lights surrounding the lens to provide illumination. The lens head is also waterproof, as is typical of endoscopes.

The size and lens options can be customized to meet your specific needs, including large or small lenses and angles. Cable length can also be tailored to your requirements during mass production. Our team can assist you in achieving all of your customization needs.

Specification

Module No	SNS-2MP-GC2145-V1
Pixel Size	1.75μm x 1.75μm
Effective Pixels	1600(H)X1200(V)
Video output	YUV2 MJPG
Active Array Size Video Rate	1600x1200 @15fps 1280x720 @ 15fps 640x480 @ 30 fps 320x240 @30fps
Image Sensor	1/5" GC2145
SNR max	TBDdB
Dynamic range	TBDdB
OTG	USB2.0 OTG
Drive free	USB Video Class(UVC)
AEC	Support
AEB	Support
AGC	Support
Adjustable parameters	Brightness/Contrast/Color saturation/Hue/Definition/ Gamma/White balance/Exposure
Lens view	FOV60°(optional),F/N(optional)
Interface	USB BUS POWER 5P-1.0mm
Working voltage	DC5V
Working current	120mA~220mA
Operating temperature	0～60℃
Storage temperature	-20～70℃
Cable length	Defualt
OS	WinXP/Vista/Win7/Win8 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC
