GC0312 6 LED Lights Endoscope Camera Applications Flexible PCB Visual Ear Picker Tiny

GC0312 6 LED Lights Endoscope Camera Applications Flexible PCB Visual Ear Picker Tiny

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Sinoseen
Certification:	RoHS
Model Number:	SNS-0.3MP-GC0312-E1

Payment & Shipping Terms:

Minimum Order Quantity:	3
Price:	negotiable
Packaging Details:	Tray+Anti-static bag in carton box
Delivery Time:	2-3weeks
Payment Terms:	T/T
Supply Ability:	500000 pieces/month

Inquiry

Parameter
Related products
Inquiry

Detail Information

Name:	Endoscope Camera Module	Sensor:	1/10" GalaxyCore GC0312
Resolution:	0.3MP 640(H) X 480(V)	Dimensions:	Customizable
Lens FOV:	40°(optional)	Focus Type:	Fixed Focus
Interface:	USB2.0	Feature:	Endoscope Camera Module
High Light:	USB2.0 Tiny Camera Module GC0312 Tiny Camera Module GC0312 endoscope camera Module

Product Description

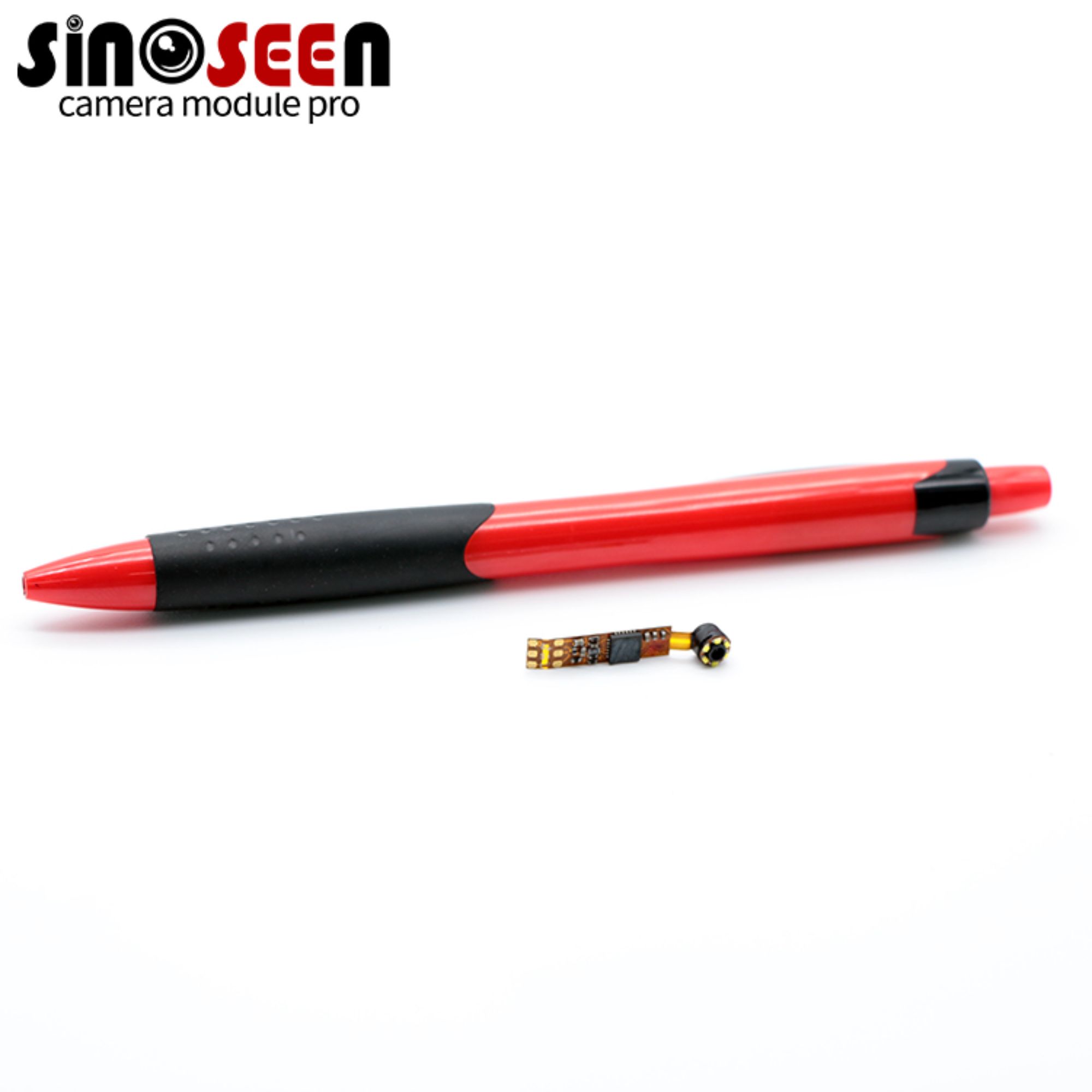

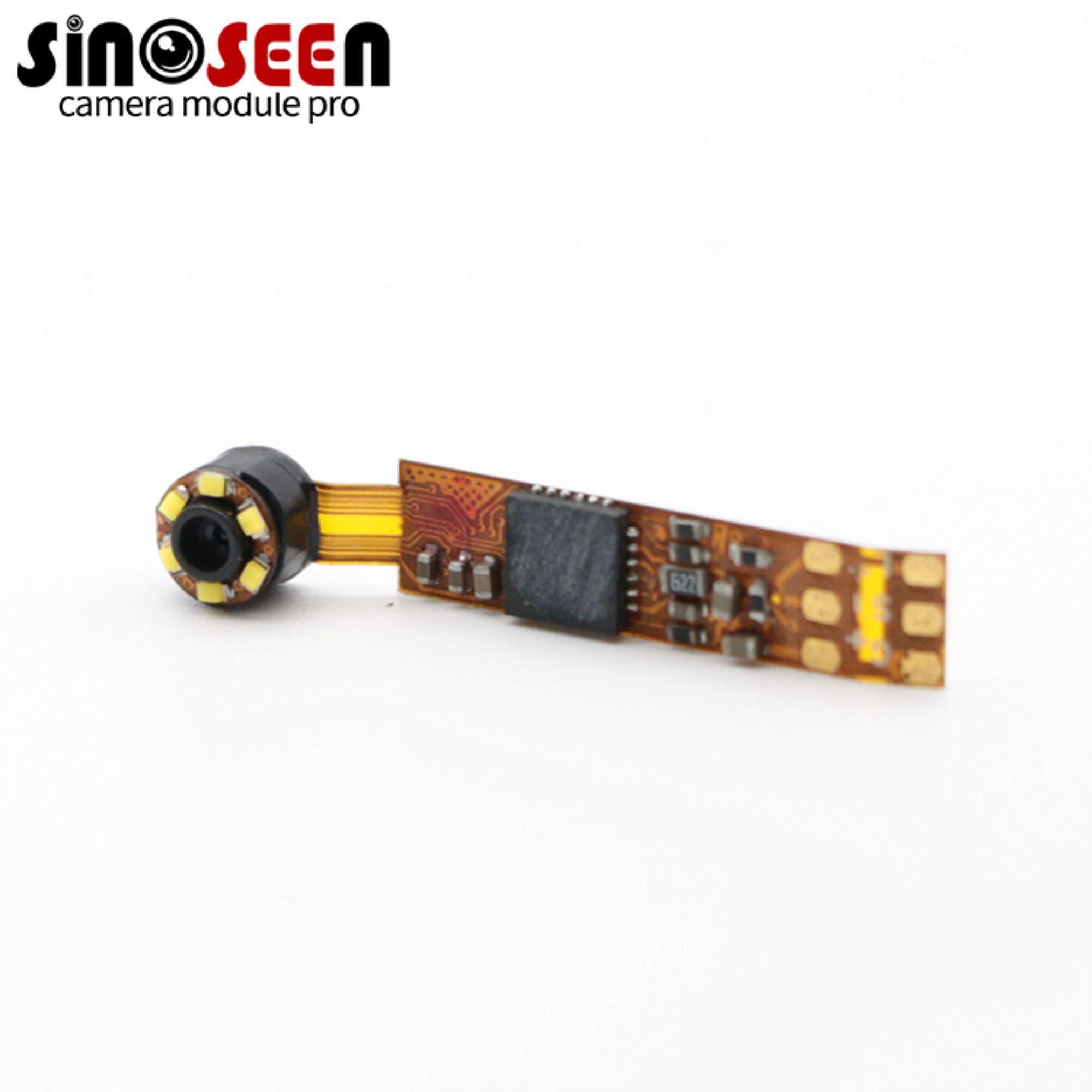

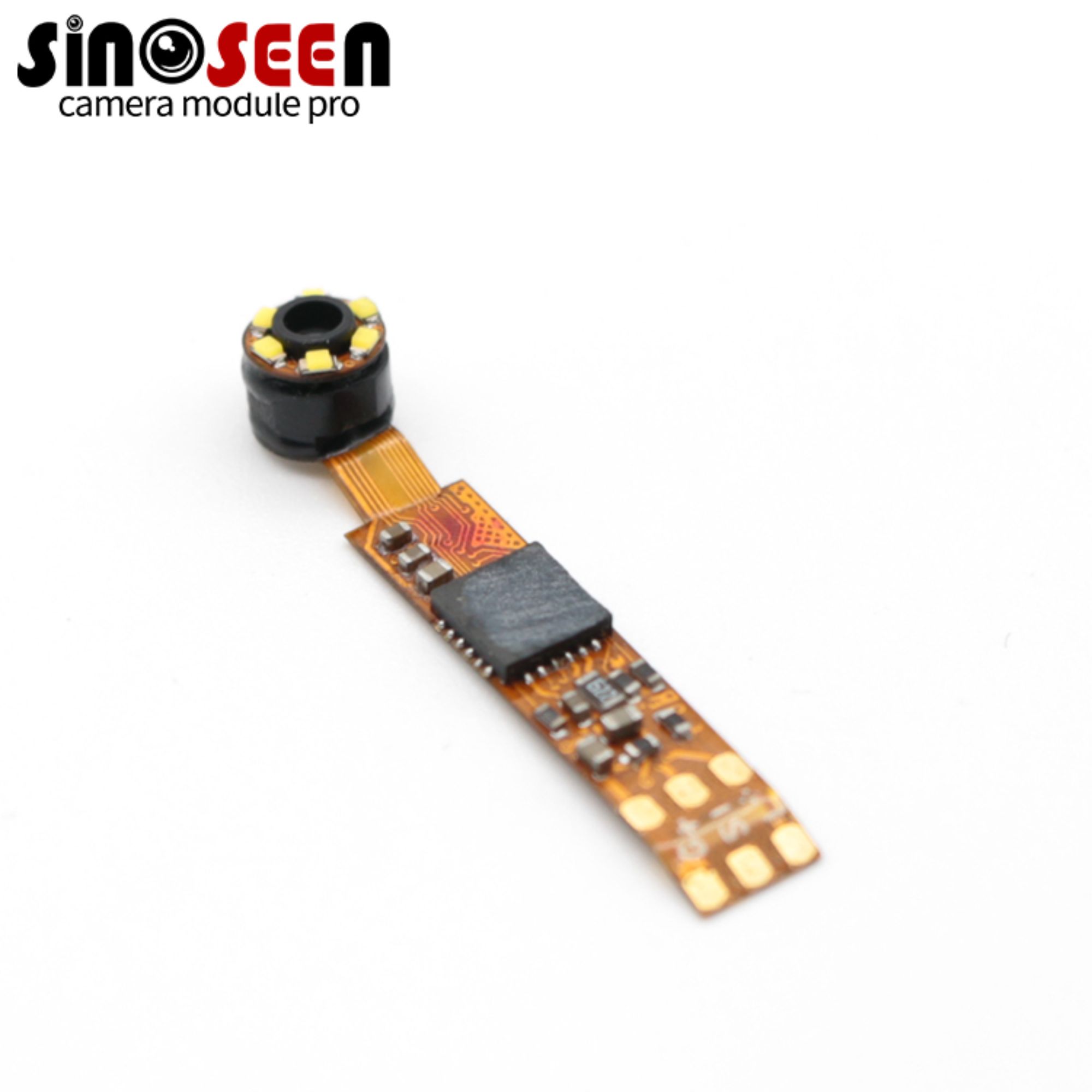

The Tiny Camera Module is a USB camera module that has been customized by the customer for use as a visual ear pick. It features GalaxyCore's GC0312 chip, which is only 1/10 inch in size, allowing for a very small and flexible module. To increase light intensity, a group of 6 LED lights have been added around the lens, providing clear visibility when inserted into the ear.

Please refer to the following excerpt from the GC0312 datasheet for more information:

The GC0312 has a 640V x 480H resolution with a 1/10-inch optical format and a 4-transistor pixel structure, resulting in high image quality and low noise variations. Its on-chip design includes a 10-bit ADC and embedded image signal processor, which contribute to its superior image quality. The device also integrates high-performance and low-power functions.

The GC0312 is ideal for design, reducing implementation processes, and extending the battery life of mobile devices such as cell phones, PDAs, and other applications. The on-chip Image Signal Processor (ISP) provides smooth Auto Exposure (AE) and accurate Auto White Balance (AWB) control. The sensor supports various data formats, including Bayer RGB, RGB565, and YCbCr 4:2:2. It uses a commonly used two-wire serial interface for the host to control the sensor's operation.

Specification

Module No	SNS-0.3MP-GC0312-E1
Pixel Size	2.25μm x 2.25μm
Effective Pixels	0.3MP 640(H) x 480(V)
Video output	Raw Bayer10bit/8bit
Active Array Size Video Rate	30FPS
Image Sensor	1/10"
Sensor Type	GalaxyCore GC0312
Lens view	FOV40°(optional),F/N(optional)
TV Distortion	<1%
AEC	Support
AEB	Support
AGC	Support
Operating voltage	AVDD:3.0~3.6V DOVDD:1.7~3.6V DVDD:1.7~1.9V
Operating temperature	-20～70℃
Storage temperature	0～50℃
Dimensions	Customizable

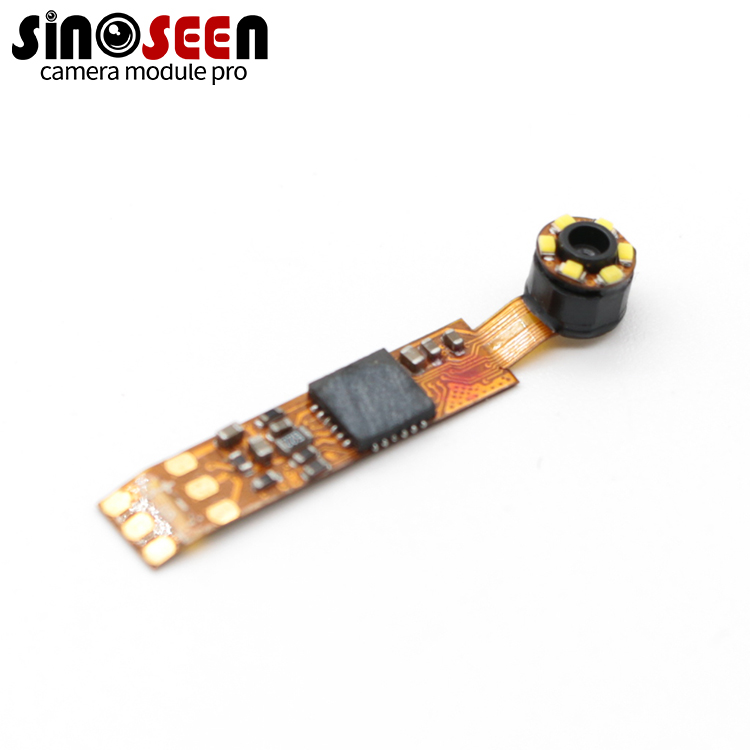

GC0312-6-LED-Lights-Endoscope-Camera

Shenzhen Sinoseen Technology Co., LTD

China top 10 camera module manufacturer

If you are struggling to find the right camera module solution, please contact us, we will customize all kinds of USB/MIPI/DVP interface camera modules according to your needs, and have a dedicated team to provide you with the most suitable solution.
