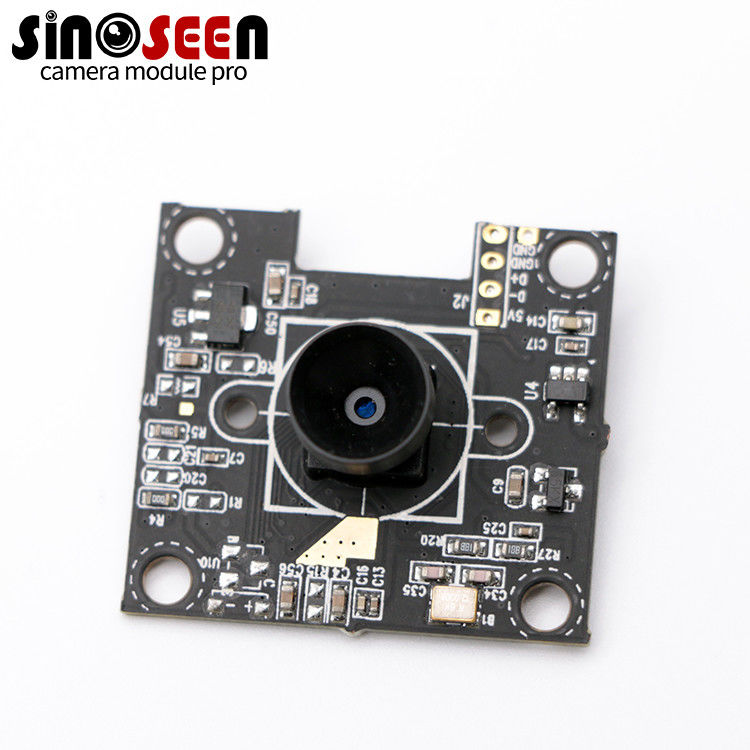

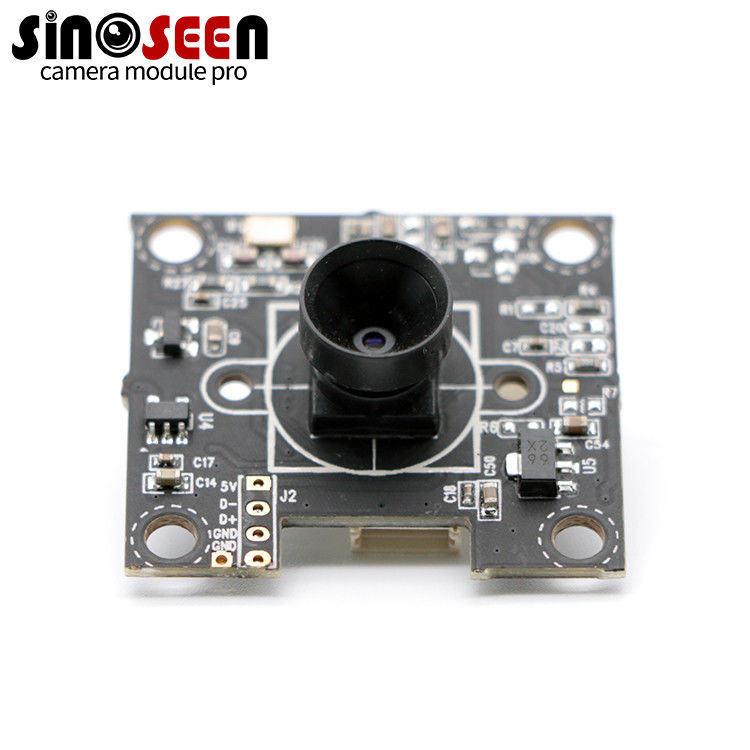

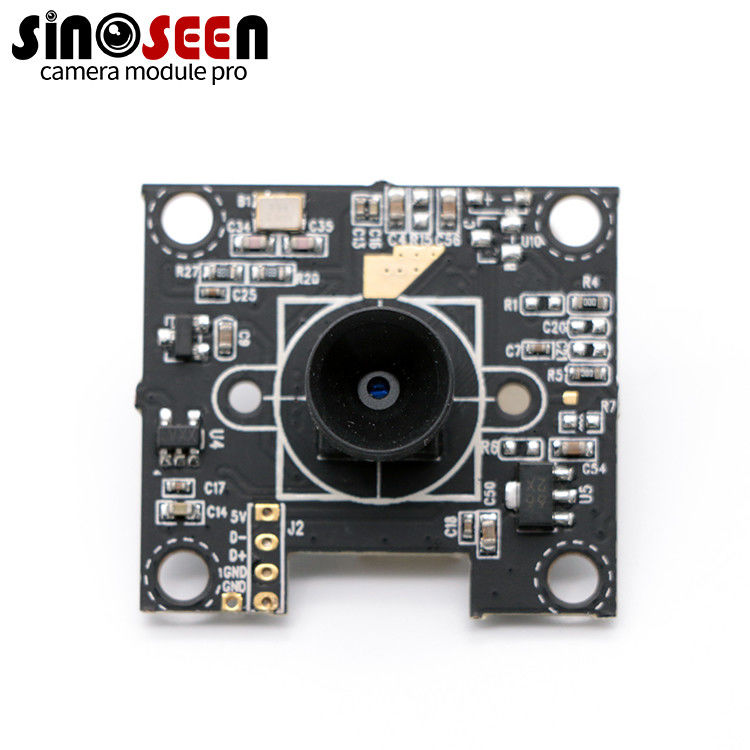

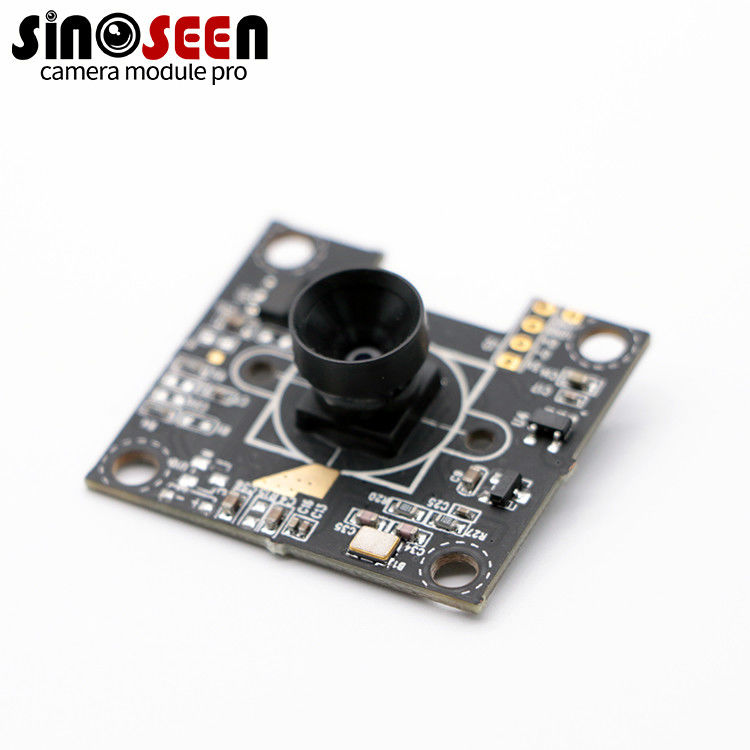

Drive Free 2MP USB Parallel Camera Module with GalaxyCore GC2145 Sensor | Sinoseen
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-YDD10F2M-V2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
- Parameter
- Related products
- Inquiry
Product Description
Sinoseen has introduced a custom 2MP GC2145 USB camera module that supports plug and play without drivers. The module is capable of outputting 1600x1200 images and is suitable for scenes requiring a 4:3 aspect ratio. You can customize the required size, choose different lenses (large, small, large Angle, small Angle), and customize the required cable length for mass production. In short, everything can be customized to your needs and we can help you achieve all your needs.
Specification
|
Module No |
SNS-YDD10F2M-V2 |
|
Pixel Size |
1.75μm x 1.75μm |
|
Effective Pixels |
1600(H)X1200(V) |
|
Video output |
YUV2 MJPG |
|
Active Array Size Video Rate |
1600x1200 @15fps 1280x720 @ 15fps 640x480 @ 30 fps 320x240 @30fps |
|
Image Sensor |
1/5" GC2145 |
|
SNR max |
TBDdB |
|
Dynamic range |
TBDdB |
|
OTG |
USB2.0 OTG |
|
Drive free |
USB Video Class(UVC) |
|
AEC |
Support |
|
AEB |
Support |
|
AGC |
Support |
|
Adjustable parameters |
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Lens view |
FOV90°(optional),F/N(optional) |
|
Interface |
USB BUS POWER 5P-1.0mm |
|
Working voltage |
DC5V |
|
Working current |
120mA~220mA |
|
Operating temperature |
0～60℃ |
|
Storage temperature |
-20～70℃ |
|
Cable length |
Defualt |
|
OS |
WinXP/Vista/Win7/Win8 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC |
