Type: |
1MP Camera Module |
Sensor: |
1/4 GC1054 |
Resolution: |
1280(H) X 720(V) |
Dimensions: |
(customizable) |
Max Frame Rate: |
30fps@36MHz,DCLK |
Focus Type: |
Fixed Focus |
Interface: |
USB2.0 |
Feature: |
Low Power Consumption |
High Light: |
1MP 720P USB 2.0 Camera Module
,
GC1054 Sensor USB 2.0 Camera Module
,
Custom GC1054 Sensor 1MP Camera Module
|
Product Description

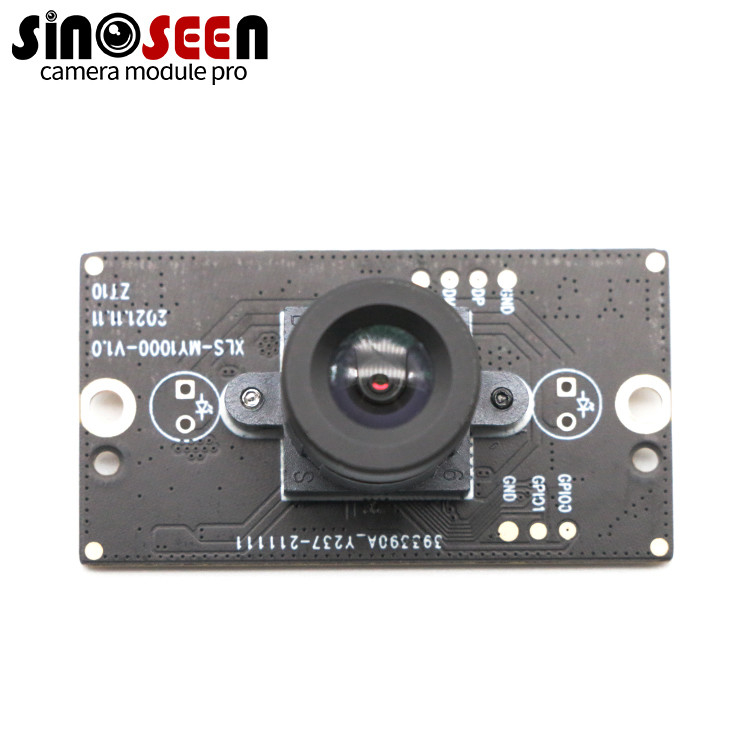

Sinoseen 1MP low power camera module with GC1054 sensor and USB 2.0 interface is designed for video doorbells and surveillance. Offering a 720P resolution at 30fps, it delivers high-quality images with low power consumption (110mW@30fps, 720p). Ideal for applications like cat-eye cameras, motion cameras, and security systems. Our engineering team can customize this module to fit your specific needs, including structure size and function. Trust Sinoseen for reliable, cost-effective camera solutions.
Parameter |
Typical value |
Optical Format |
1/4inch |
Pixel Size |
3.0um*3.0um |
Active pixel array |
1280*720 |
ADC resolution |
10bit ADC |
Max Frame rate |
30fps@36MHz,DCLK |
|
AVDD:3.15-3.45V(Typ.3.3V) |
Power Supply |
DVDD:1.4-1.6(Typ.1.5V) |
|
IOVDD:1.7-3.45V(Typ.1.8V) |
Power Consumption |
110mW@30fps,720p |
SNR |
41.4dB |
Dart Current |
200e-/s(60) |
Sensitivity |
18000e-/lux-sec |
Dynamic range |
70.7dB |
Operating temperature |
-30-80 |
Stable Image temperature |
0-50 |
Optimal Lens chief ray angle(CRA) |
12(linear) |
Package type |
CSP/PLCC |
Input clock frequency |
6-27MHz |
