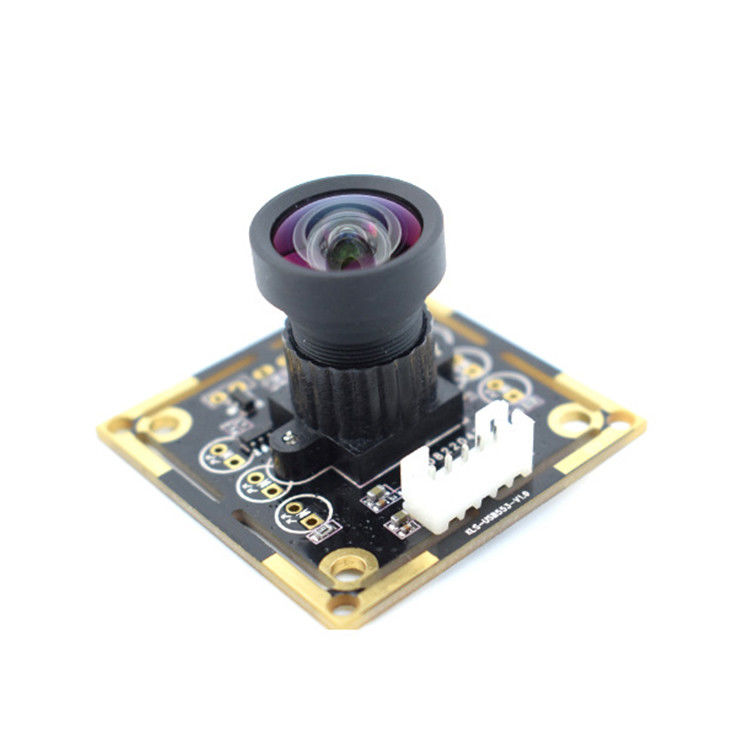

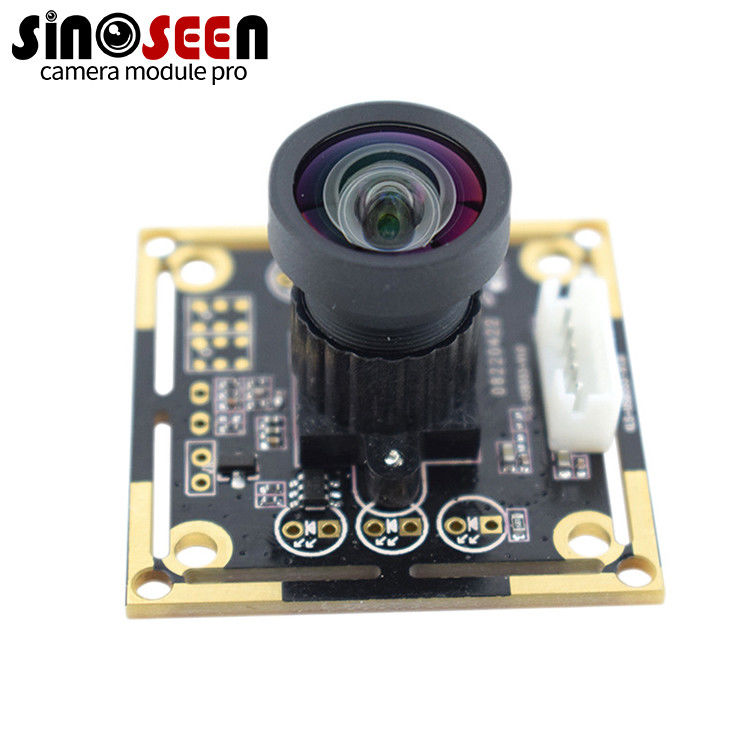

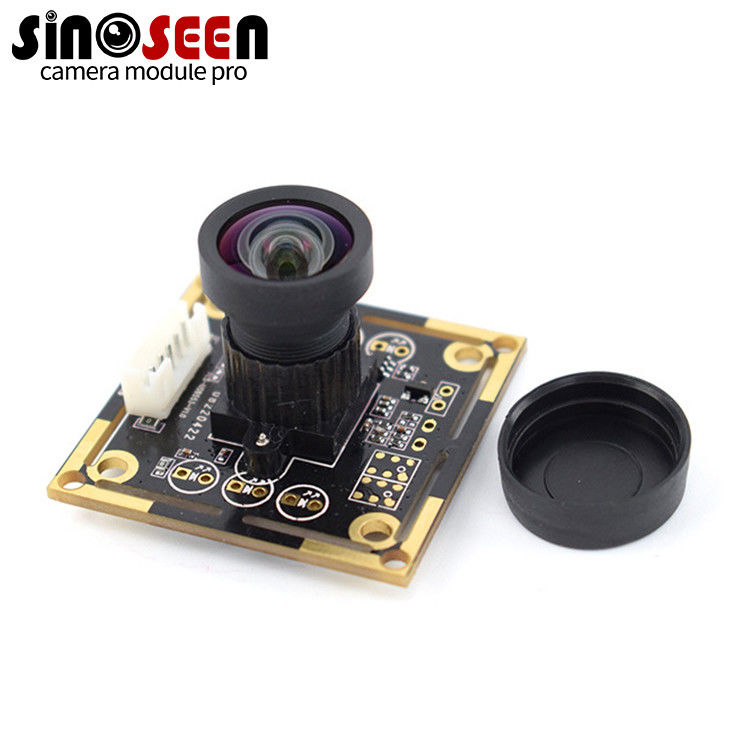

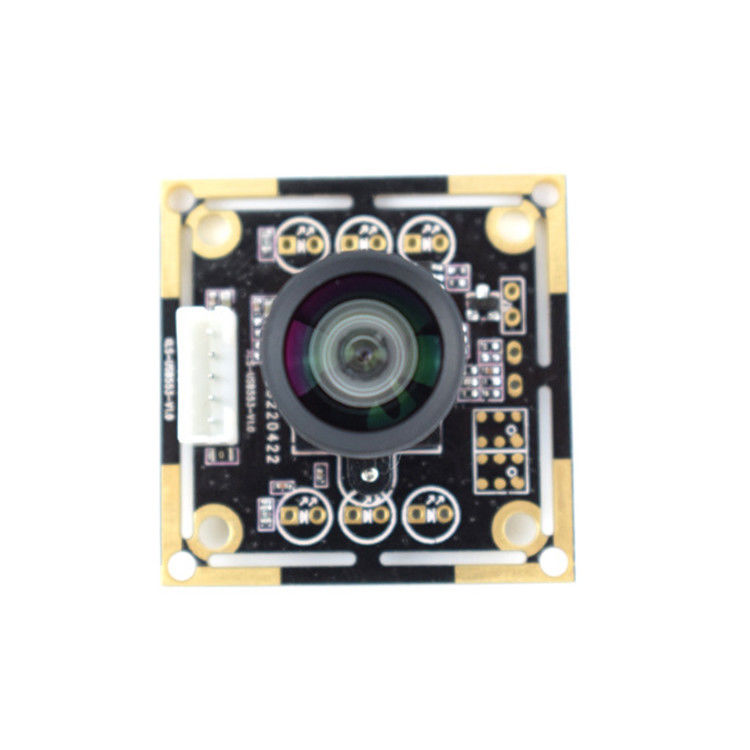

Customizable 38x38mm 5.5MP Himax HM5532 USB Camera Module with HDR for Precision Imaging
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-USB553-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
- Parameter
- Related products
- Inquiry
Product Description
Our HDR industrial grade 5.5MP USB camera module, featuring the Himax HM5532 sensor, is designed for high-performance imaging in various industrial applications. Capable of operating up to 30FPS at full resolution, this module delivers impressive imaging performance. With a standard size of 38x38mm, compatible with 32x32mm, and customizable dimensions to fit your specific needs, this camera module is the ideal choice for businesses seeking a compact and reliable imaging solution. Experience the quality and flexibility of our industrial camera module today.
Specification
|
Model No |
SNS-USB553-V1.0 |
|
Sensor |
1/2.6" Himax HM5532 |
|
Pixel |
5.5 Mega Pixel |
|
Most effective pixels |
2720 (H) x 2080 (V) |
|
Pixel Size |
2.0µm x 2.0µm |
|
Compression format |
YUYV/MJPEG |
|
Resolution & Frame rate |
See above |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
Object distance |
5CM-infinity |
|
S/N ratio |
TBDdB |
|
Dynamic range |
TBDdB |
|
Sensitivity |
TBDmV / lux-sec |
|
Interface type |
USB2.0 high speed |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue |
|
Lens FOV |
80° |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 150mA |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control |
Support |
|
Auto White Balance |
Support |
|
Auto Gain Control |
Support |
|
Dimension |
38x38MM |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default 0.5M |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10
|
Shenzhen Sinoseen Technology Co., LTD
China top 10 camera module manufacturer
If you are struggling to find the right camera module solution, please contact us,
we will customize all kinds of USB/MIPI/DVP interface camera modules according to your needs,
and have a dedicated team to provide you with the most suitable solution.
FAQ:
Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.
Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.
Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.
Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.
Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
