Custom IR AR0144 Sensor Smart Devices Shutter Imaging Camera Module 60FPS
Product Details:
Place of Origin: | Shenzhen,China |
Brand Name: | Sinoseen |
Certification: | RoHS |
Model Number: | SNS-GB331M-V1.0 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 |
Price: | negotiable |
Packaging Details: | Tray+Anti-static bag in carton box |
Delivery Time: | 2-3weeks |
Payment Terms: | T/T |
Supply Ability: | 500000 pieces/month |
- Parameter
- Related products
- Inquiry
- Detail Information
Type: | Global Shutter Camera Module | Sensor: | 1/4-Inch 1.0 Mp CMOS AR0144 |
Resolution: | 1MP 1280(H) X 800(V) | Dimensions: | Customizable |
Pixel Size: | 3.0um | Focus Type: | Fixed Focus |
Interface: | USB2.0 | Feature: | Global Shutter |
High Light: | AR0144 Sensor USB Camera Module Global Shutter USB Camera Module 720P 60fps Global Shutter Camera Module | ||
Product Description
This is a custom infrared USB camera module with a 720P 60fps multi-function global shutter and an AR0144 sensor. It features HD video at 1280x800 and a fixed focus infrared fill light camera module. It supports day and night switching and is suitable for identification, monitoring, and other functions.
feature:
1. Excellent low light and infrared performance
2.HD video (720p60) 2-lane MIPI or parallel data interface
3. Programmable Control of the Region of Interest (ROI)
4. Horizontal and vertical mirroring, windowing and pixel binning
5. On-chip automatic exposure control for any programmable ROI
6.5x5 statistical engine for any programmable ROI
7. Flexible control of row and column skip mode
8. On-chip slave or synchronous trigger mode
9. Built-in strobe control
10. On-chip Phase Locked Loop (PLL)
If you have similar requirements, you can use this design to customize your own USB camera module. Our professional engineering team can discuss various requirements with you, such as structure size and function. You can define the PINOUT, FOV, and size yourself.
Specification
Model No | SNS-GB331M-V1.0 |
Sensor | 1/4-Inch 1.0 Mp CMOS AR0144 |
Pixel | 1 Mega Pixel |
Most effective pixels | 1280H x 800V |
Pixel Size | 3.0µm x 3.0µm |
Chroma | COLOR Image |
Compression format | MJPG/YUY2 |
Resolution & Frame rate | See above |
Shutter Type | Global shutter |
Focus type | Auto focus |
S/N ratio | 38dB |
Dynamic range | 63.9dB |
Protocol | Plug-&-Play (UVC compliant) |
Interface type | USB2.0 high speed |
Lens | Lens Size: 1/4 inch |
FOV: 90° | |
Thread Size: M12*P0.5 | |
Audio frequency | Optional |
Power supply | USB BUS POWER |
Power consumption | DC 5V, 180mW |
Main chip | DSP/SENSOR/FLASH |
Dimension | customizable |
Storage temperature | –40°C to +85°C |
Operating temperature | –40°C to +105°C |
USB cable length | Default |
Adjustable parameter | Brightness/Contrast/Color saturation/Hue/ Definition/Gamma/White balance |
Support OS | WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |

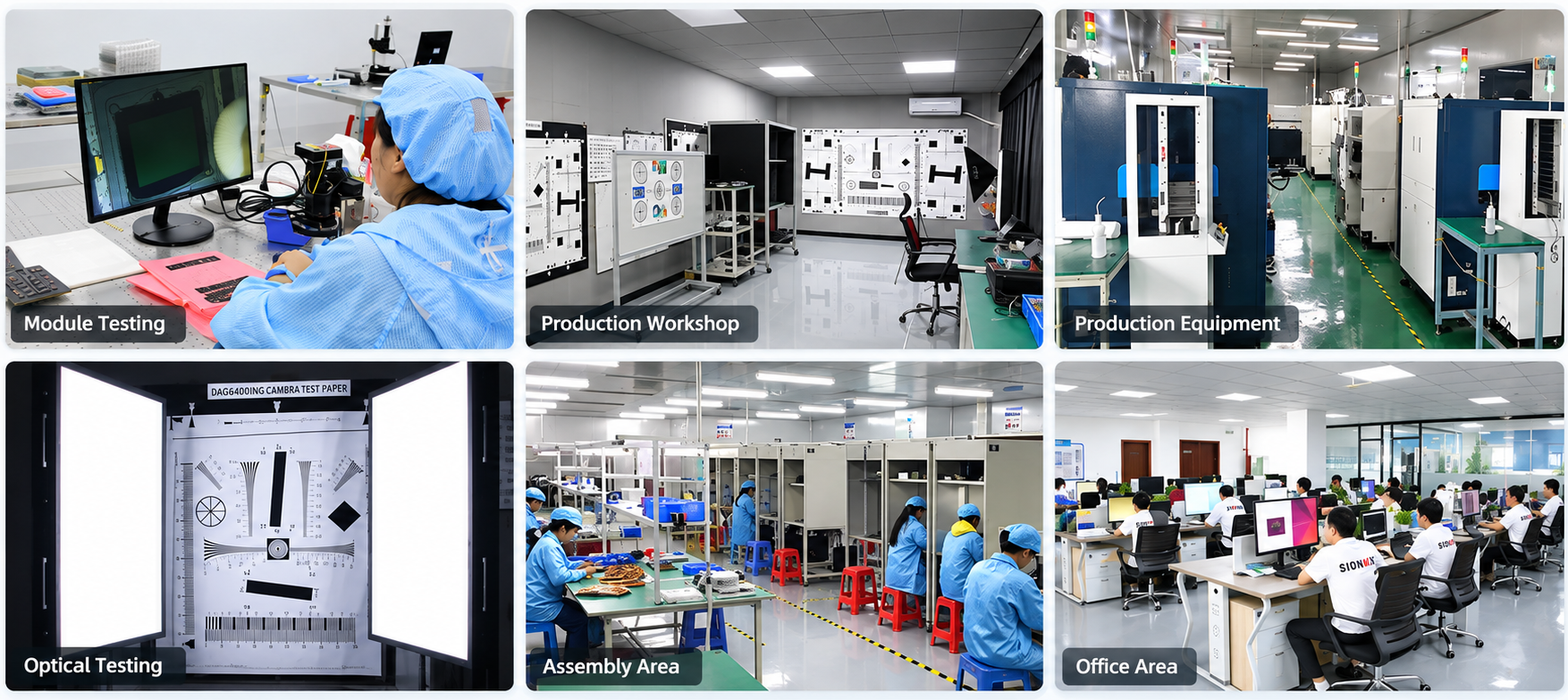

Shenzhen Sinoseen Technology Co., LTD
China top 10 camera module manufacturer
If you are struggling to find the right camera module solution, please contact us, we will customize all kinds of USB/MIPI/DVP interface camera modules according to your needs, and have a dedicated team to provide you with the most suitable solution.
Current avaliable global shutter USB camera module
Omnivision OV7251 0.3MP Monochrome(black and white)
Omnivision OV9281 1MP Monochrome(black and white)
ON Semiconductor AR0144 1MP Monochrome(black and white) or RGB color
Omnivision OG02B1B 2MP Monochrome(black and white)
Omnivision OG02B10 2MP RGB color
