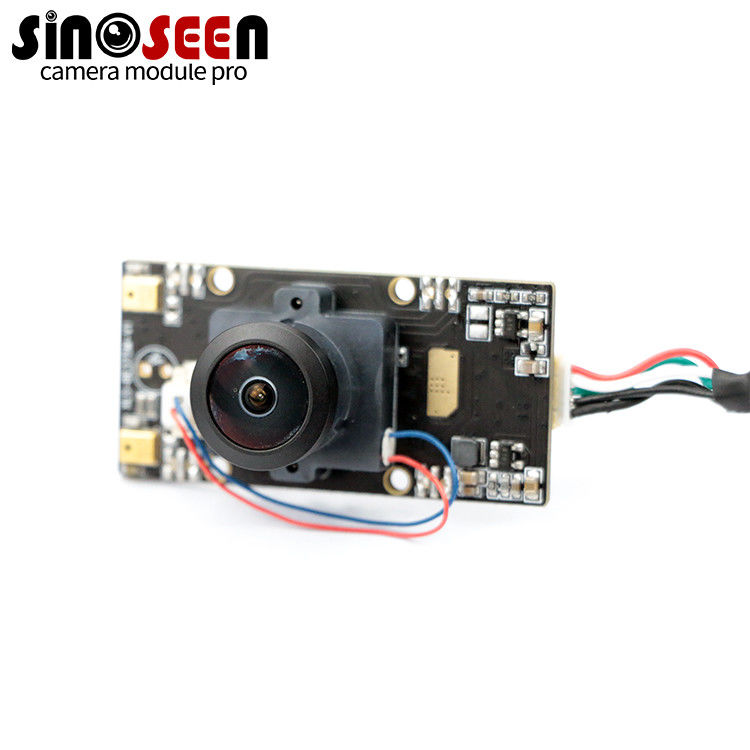

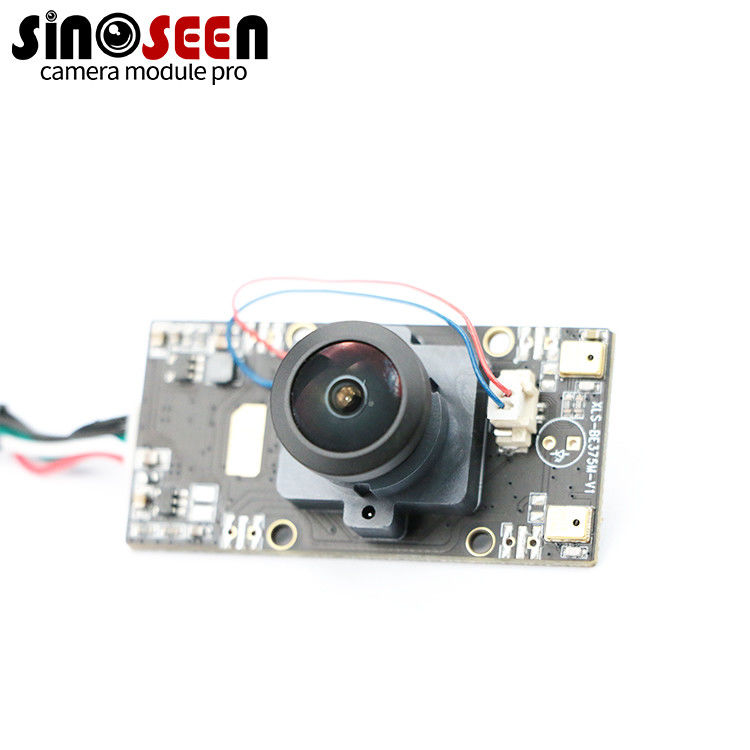

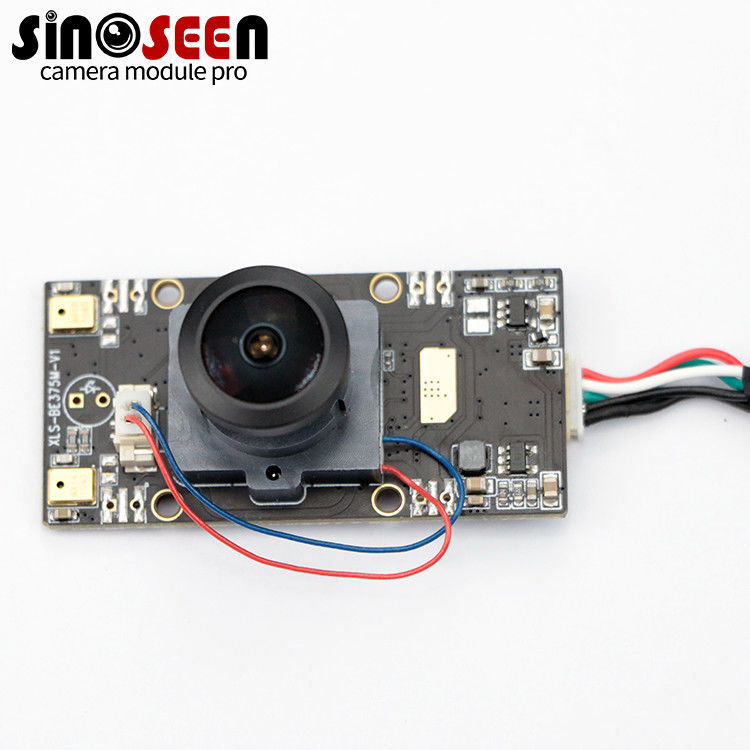

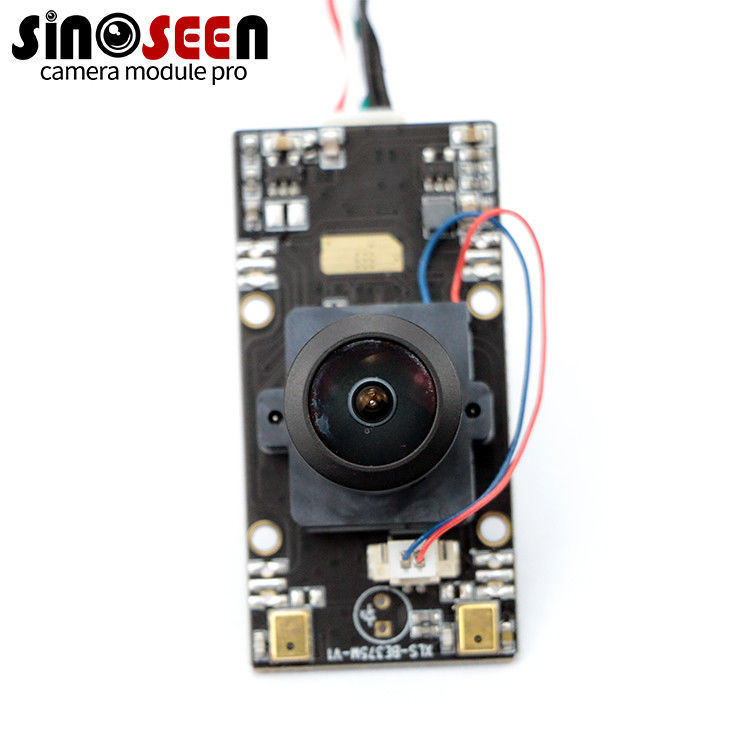

Compact 45MMx20MM 5MP OV5648 CMOS USB Camera Module with IR Cut and Dual Microphones for Video Conferencing

Compact 45MMx20MM 5MP OV5648 CMOS USB Camera Module with IR Cut and Dual Microphones for Video Conferencing

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Sinoseen
Certification:	RoHS
Model Number:	XLS-BE375M-V1.0

Payment & Shipping Terms:

Minimum Order Quantity:	3
Price:	negotiable
Packaging Details:	Tray+Anti-static bag in carton box
Delivery Time:	2-3weeks
Payment Terms:	T/T
Supply Ability:	500000 pieces/month

Inquiry

Parameter
Related products
Inquiry

Detail Information

Type:	USB Camera Module	Sensor:	1/4"Omnivision OV5648
Resolution:	5MP (2592*1944)	Dimensions:	45x20mm(customizable)
Lens FOV:	80°(optional)	Focus Type:	Fixed Focus
Interface:	USB2.0	Feature:	HD
Highlight:	OV5648 CMOS Camera Module , CMOS 5MP Camera Module , IR OV5648 Camera Module

Product Description

Sinoseen's 5MP camera module, featuring the Omnivision OV5648 CMOS sensor, offers exceptional image quality and stability, making it a best-seller in the field of webcams and video conferencing. With a compact size of 45MMx20MM, this module provides more design flexibility for your device housing. Unlike other small camera modules, this model comes with 2 built-in microphones, perfect for applications demanding superior sound quality. Customize your module with your choice of chip, focus type, and additional features like LEDs. Sinoseen's comprehensive customization services ensure your specific needs are met.

Specification

Model No	XLS-BE375M-V1.0
Sensor	1/4’’ Omnivision OV5648
Pixel	5 Mega Pixel
Most effective pixels	2592(H) x 1944(V)
Pixel Size	1.4µm x 1.4µm
Image area	3673.6µm x 2738.4µm
Compression format	MJPG/YUY2
Resolution & Frame rate	See above
Shutter Type	Electronic rolling shutter
Focus type	Fixed focus
S/N ratio	36dB
Dynamic range	72 dB @ 8x gain
Sensitivity	690mV / lux-sec
Interface type	USB2.0 high seepd
Adjustable parameter	Brightness/Contrast/Color saturation/Hue/Definition/ Gamma/White balance/Exposure
Lens	TTL: 23.89MM
	Lens Size: 1/3 inch
	DFOV: 80°
	Thread Size: M12*P0.5
Audio frequency	Optional
Power supply	USB BUS POWER
Power consumption	DC 5V, 200mW
Main chip	DSP/SENSOR/FLASH
Auto Exposure Control (AEC)	Support
Auto White Balance (AEB)	Support
Auto Gain Control (AGC)	Support
Dimension	45MMx20MM
Storage temperature	-20°C to 70°C
Operating temperature	0°C to 60°C
USB cable length	Default
Support OS	WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC


Shenzhen Sinoseen Technology Co., LTD

China top 10 camera module manufacturer

If you are struggling to find the right camera module solution, please contact us,

we will customize all kinds of USB/MIPI/DVP interface camera modules according to your needs,

and have a dedicated team to provide you with the most suitable solution.

FAQ:

Q1. How to choose the right camera module?

A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.

Q2. How to start proofing?

A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.

Q3: How do I send the payment?

A: Currently we accept T/T bank transfer and Paypal.

Q4: How long does it take to make a sample?

A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.

Q5: How long will it take to receive the sample after it is ready?

A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
