AI Vision DVP Camera Module With OV2718 HDR FOV160° Wide Angle 2MP
Product Details:
Place of Origin: |
Shenzhen,China |
Brand Name: |
Sinoseen |
Certification: |
RoHS |
Model Number: |
SNS-21262-V1 |
Payment & Shipping Terms:
Minimum Order Quantity: |
3 |
Price: |
negotiable |
Packaging Details: |
Tray+Anti-static bag in carton box |
Delivery Time: |
2-3weeks |
Payment Terms: |
T/T |
Supply Ability: |
500000 pieces/month |
- Parameter
- Related products
- Inquiry
- Detail Information
Type: |
DVP Camera Module |
Sensor: |
1/2.9" Omnivision OV2718 |
Resolution: |
2MP 1920x1080 |
Dimensions: |
Customizable |
Lens FOV: |
160°(optional) |
Focus Type: |
Fixed Focus |
Interface: |
DVP |
Feature: |
HDR |
High Light: |
2MP DVP Camera Module 30FPS DVP Camera Module 30FPS 1080P Camera Module |
||
Product Description

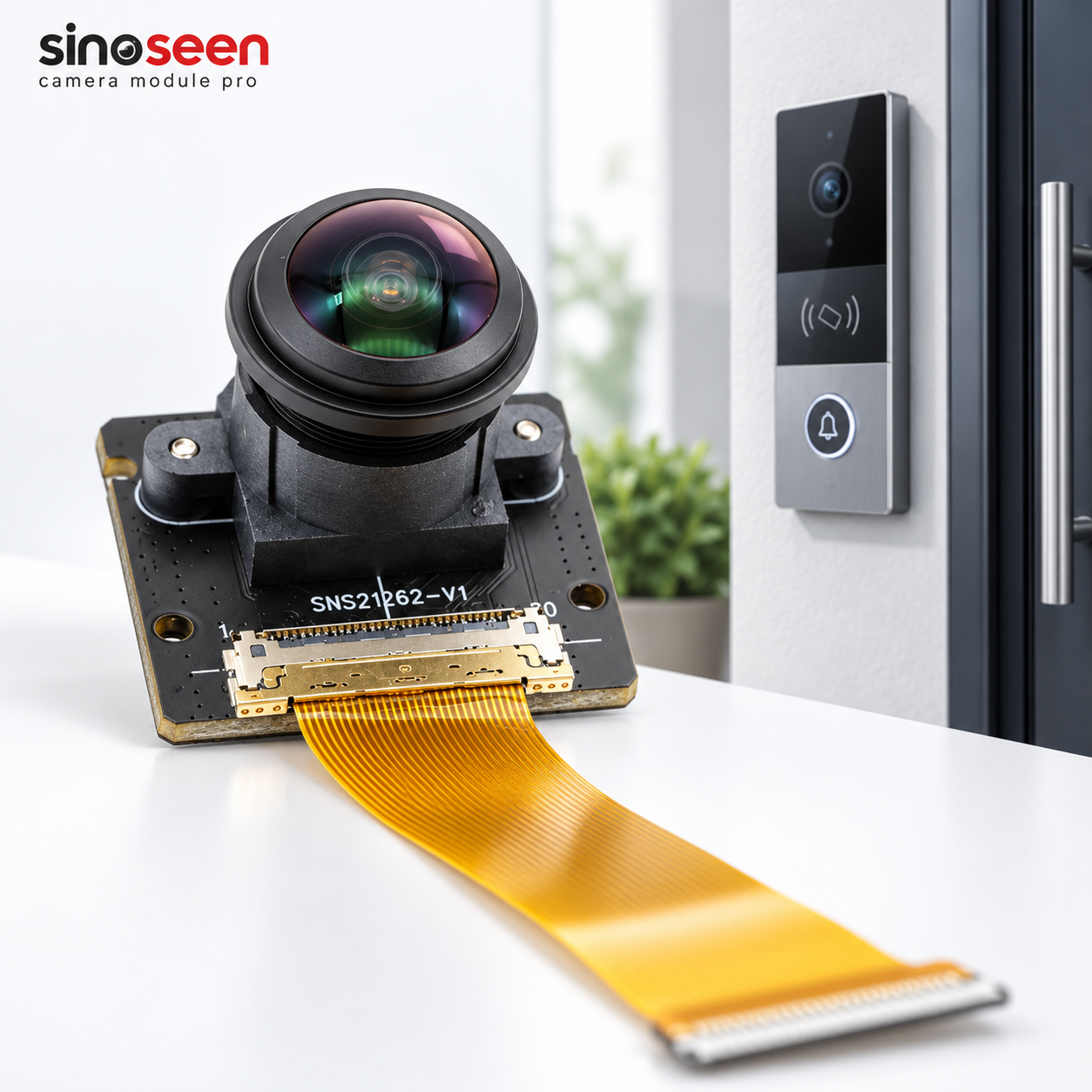

The module uses 1/2.9" Omnivision OV2718 sensor, image resolution is 1920*1080, pixel up to 2MP, with HDR, Fixed Focus and other functions, lens FOV size up to 160°, with a broad Angle of view, you can capture any beautiful moment for you.
At the same time, the module uses the DVP interface, which can maintain the stability of image transmission, and OV2718 is also a low-power sensor, which shows that the main use of the module is in all kinds of small devices, such as mobile phones, digital cameras, cat eye access control, etc., of course, the current hot AI, intelligent recognition and other fields can also be.

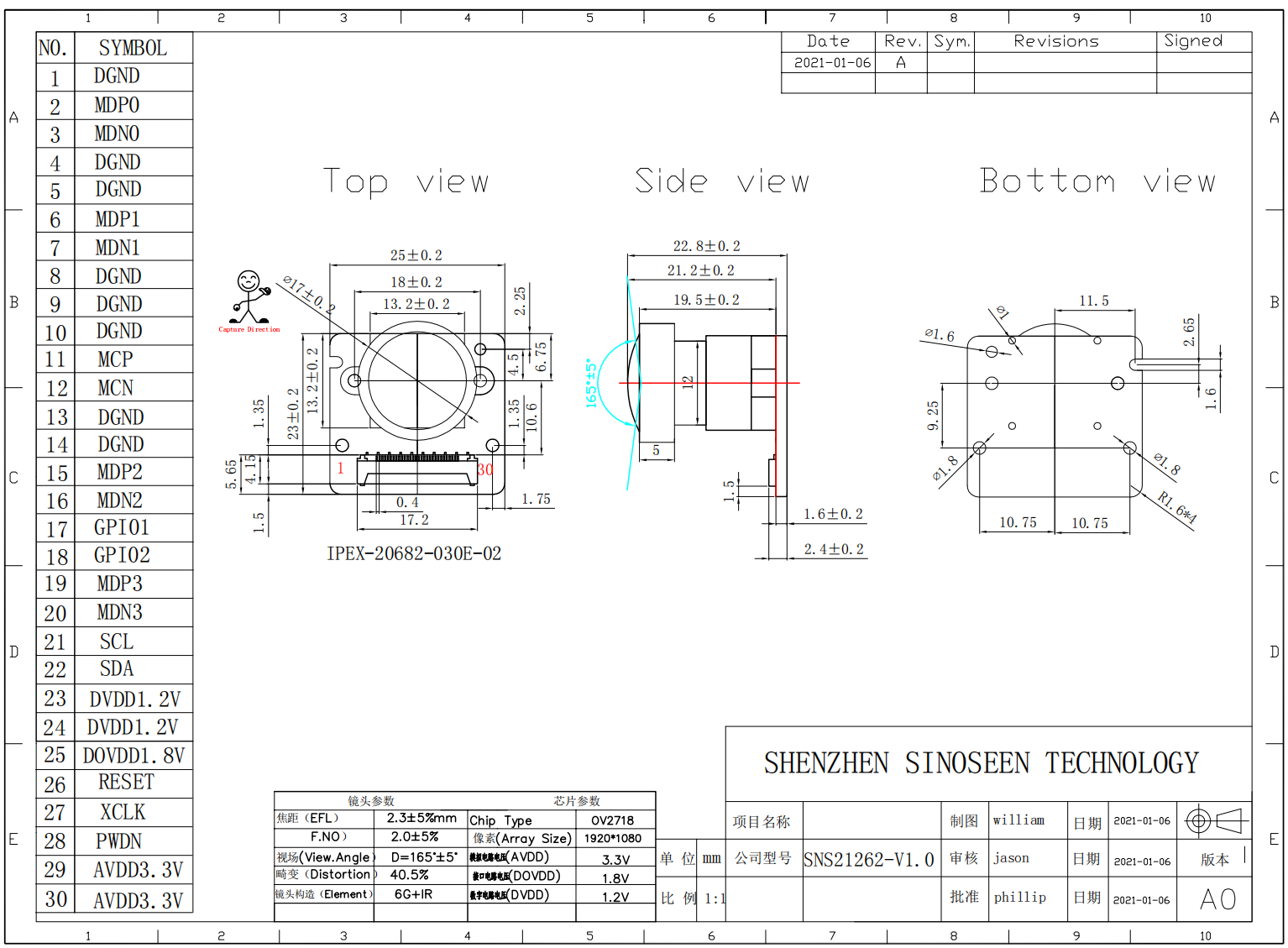

Specification
Module No |
SNS-21262-V1 |
Pixel Size |
2.8μm x 2.8μm |
Effective Pixels |
1920×1080 |
Video output |
Raw Bayer10bit/8bit |
Active Array Size Video Rate |
1080P@30FPS |
Image Sensor |
1/2.9" |
Sensor Type |
Omnivision OV2718 |
Lens view |
FOV160°(optional),F/N(optional) |
TV Distortion |
<1% |
AEC |
Support |
AEB |
Support |
AGC |
Support |
Operating voltage |
AVDD:3.0~3.6V DOVDD:1.7~3.6V DVDD:1.7~1.9V |
Operating temperature |
-40～80℃ |
Storage temperature |
-30～85℃ |
Dimensions |
Customizable |
Shenzhen Sinoseen Technology Co., LTD
China top 10 camera module manufacturer
If you are struggling to find the right camera module solution, please contact us, we will customize all kinds of USB/MIPI/DVP interface camera modules according to your needs, and have a dedicated team to provide you with the most suitable solution.
FAQ:
Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.
Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.
Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.
Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.
Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
