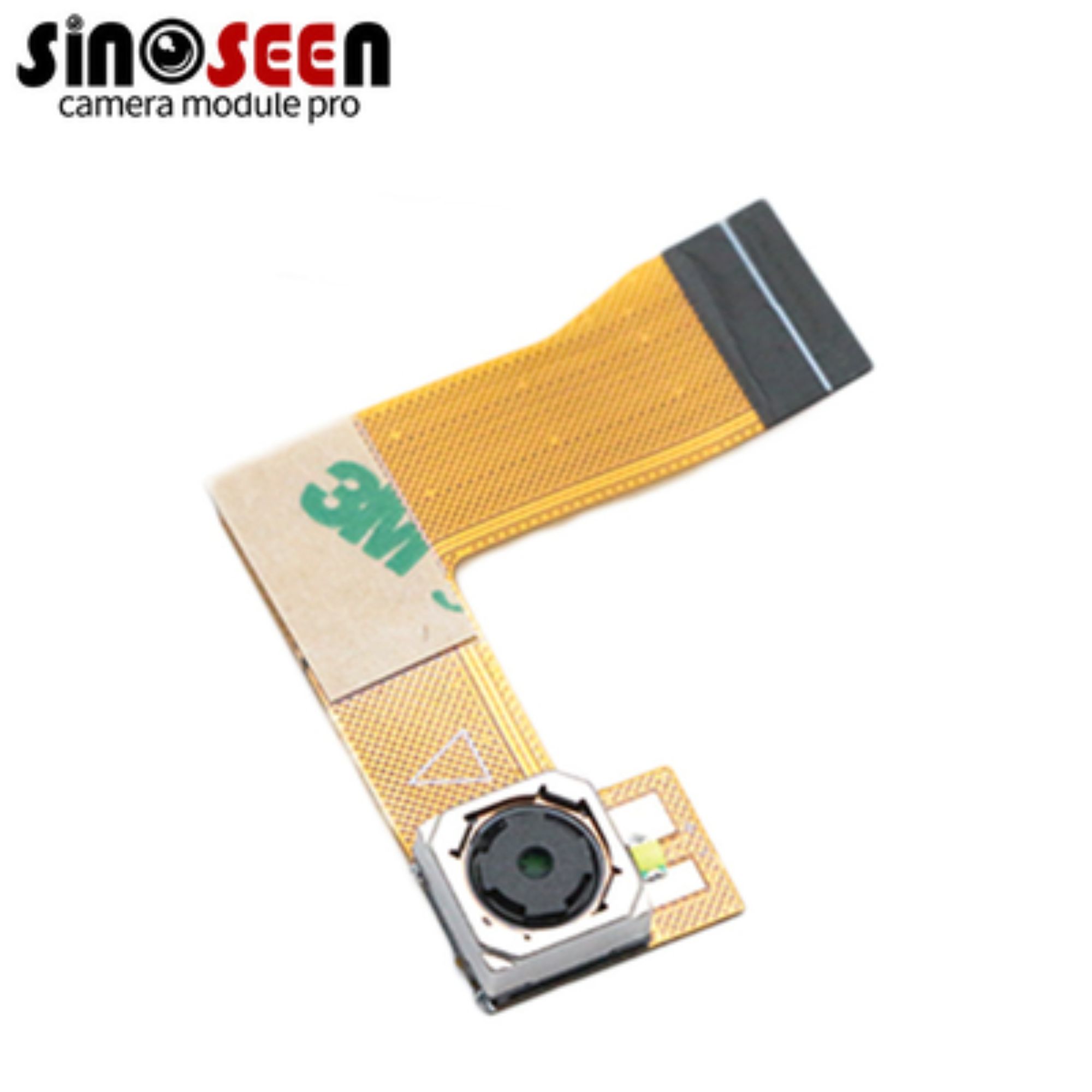

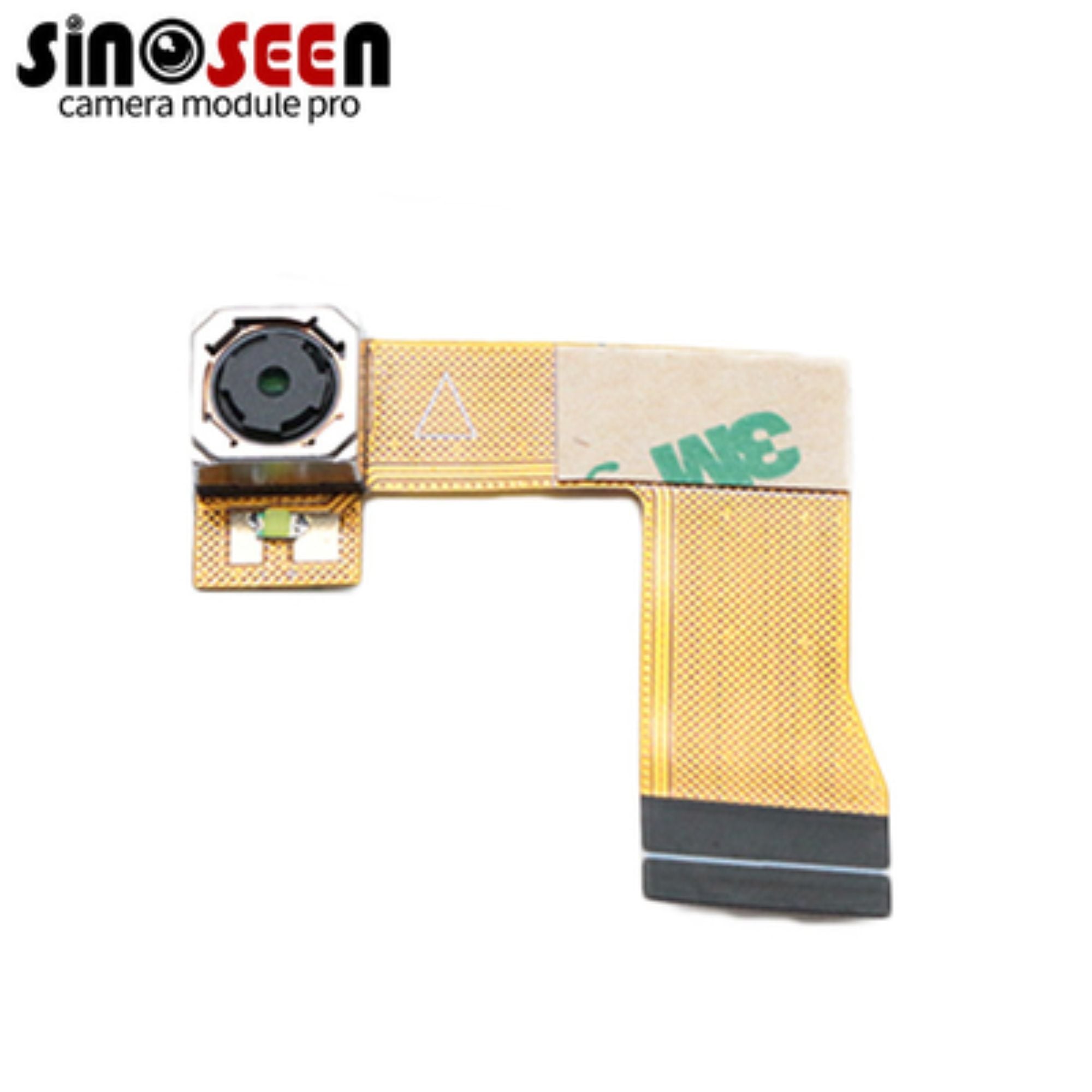

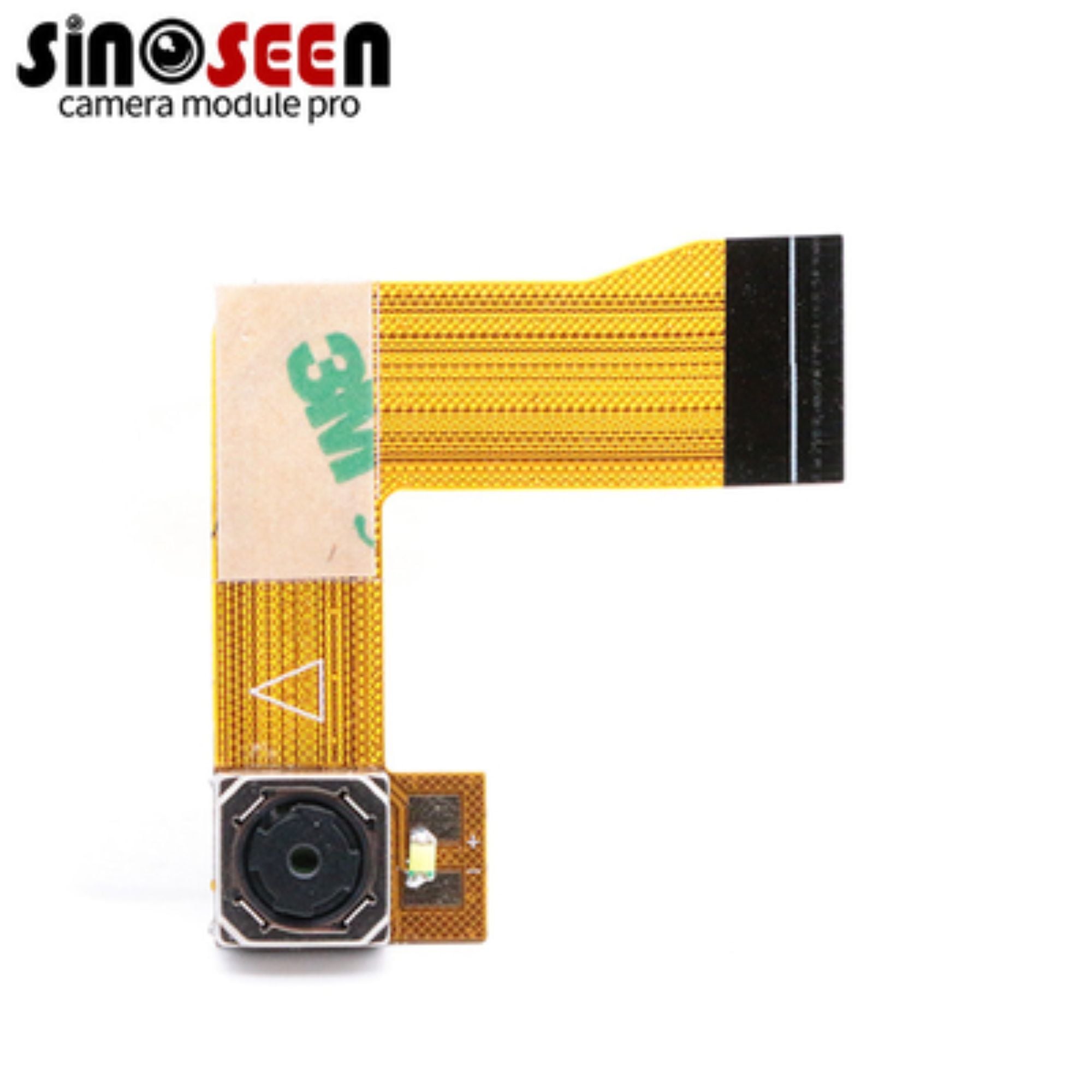

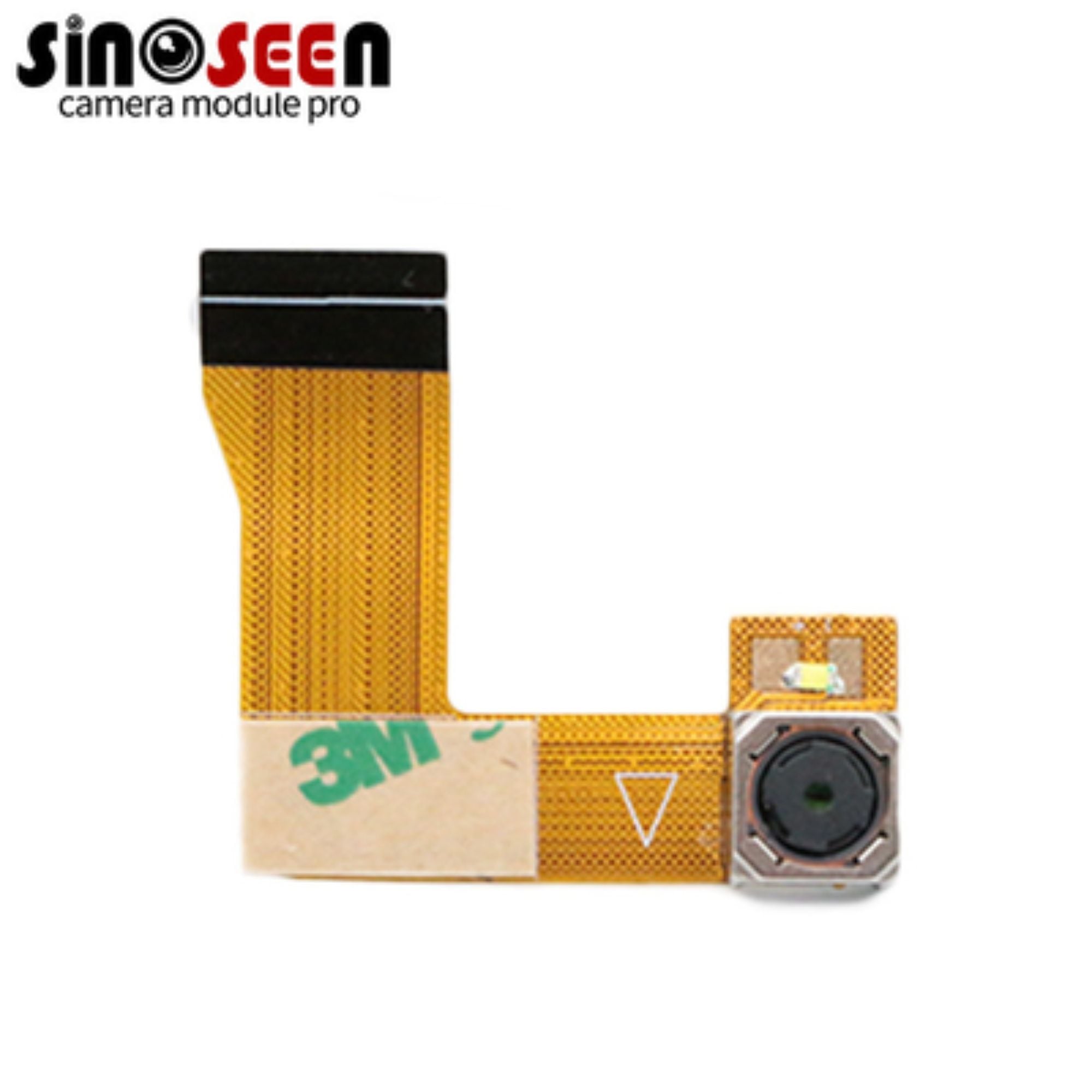

8MP HDR Cell Phone Compact Face Recognition Camera Module 1080p 60fps
Product Details:
Place of Origin: |
Shenzhen,China |
Brand Name: |
Sinoseen |
Certification: |
RoHs |
Model Number: |
SNS-8856-V1.0 |
Payment & Shipping Terms:
Minimum Order Quantity: |
200 |
Price: |
negotiable |
Packaging Details: |
Tray+Anti-static bag in carton box |
Delivery Time: |
2-3weeks |
Payment Terms: |
T/T |
Supply Ability: |
500000 pieces/month |
- Parameter
- Related products
- Inquiry
- Detail Information
Type: |
Face RecognitionCamera Module |
Sensor: |
1/4" Omnivision OV8858 |
Resolution: |
8MP (3264*2448) |
Dimensions: |
Customizable |
Lens FOV: |
76°(optional) |
Focus Type: |
Auto Focus |
Interface: |
MIPI |
Feature: |
Low Power Consumption |
High Light: |
1080p Compact Camera Module 60fps Compact Camera Module Mipi Scan Face Recognition Camera Module |
||
Product Description
The camera module uses a compact design, equipped with 1/4" Omnivision OV8858 sensor, up to 8MP pixels, and 3264*2448 image resolution, can achieve ultra-high quality imaging, with MIPI interface, often used in mobile phone cameras, face recognition and other areas requiring high image quality.
Specification
Model No |
SNS-8856-V1.0 |
Sensor |
1/4’’ Omnivision OV8858 |
Pixel |
8 Mega Pixel |
Most effective pixels |
3264 (H) x 2448 (V) |
Pixel Size |
1.12µm x 1.12µm |
Shutter Type |
Electronic rolling shutter |
Focus type |
auto focus |
S/N ratio |
TBDdB |
Dynamic range |
TBDdB |
Sensitivity |
TBDmV/Lux-sec |
Lens FOV |
Default 76° (Optional) |
Dimension |
Customizable |
Storage temperature |
-30°C to 85°C |
Operating temperature |
0°C to 60°C |
Shenzhen Sinoseen Technology Co., LTD
China top 10 camera module manufacturer
If you are struggling to find the right camera module solution, please contact us, we will customize all kinds of USB/MIPI/DVP interface camera modules according to your needs, and have a dedicated team to provide you with the most suitable solution.
FAQ:
Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.
Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.
Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.
Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.
Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
