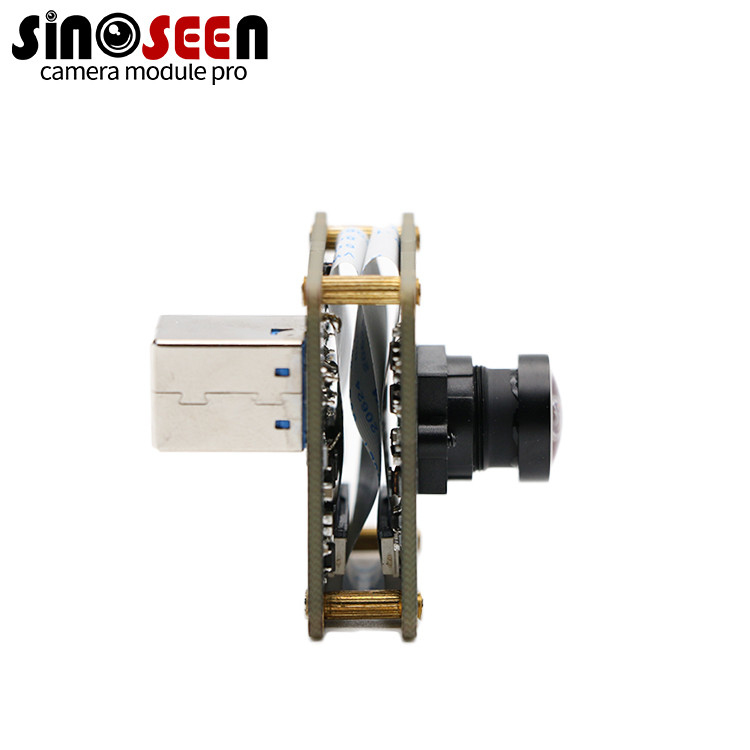

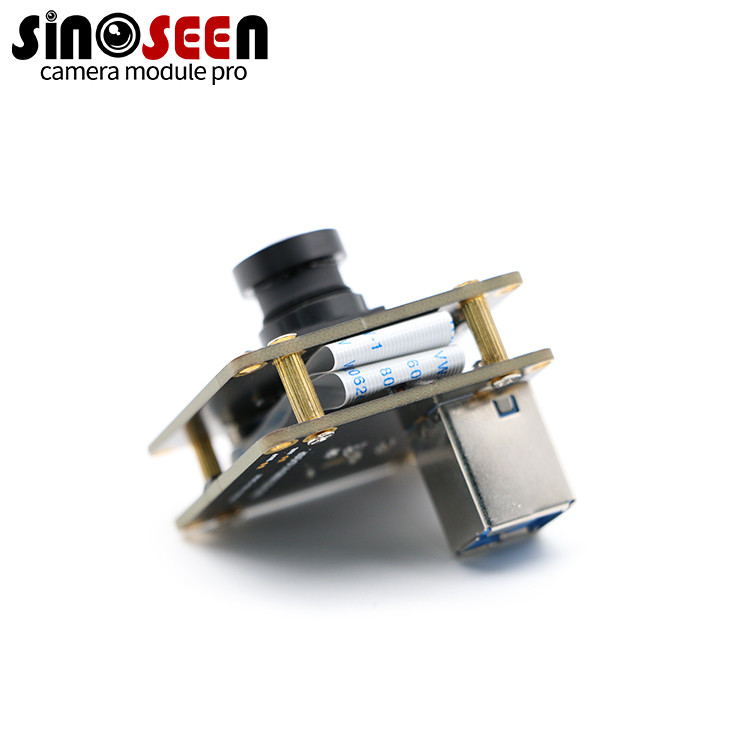

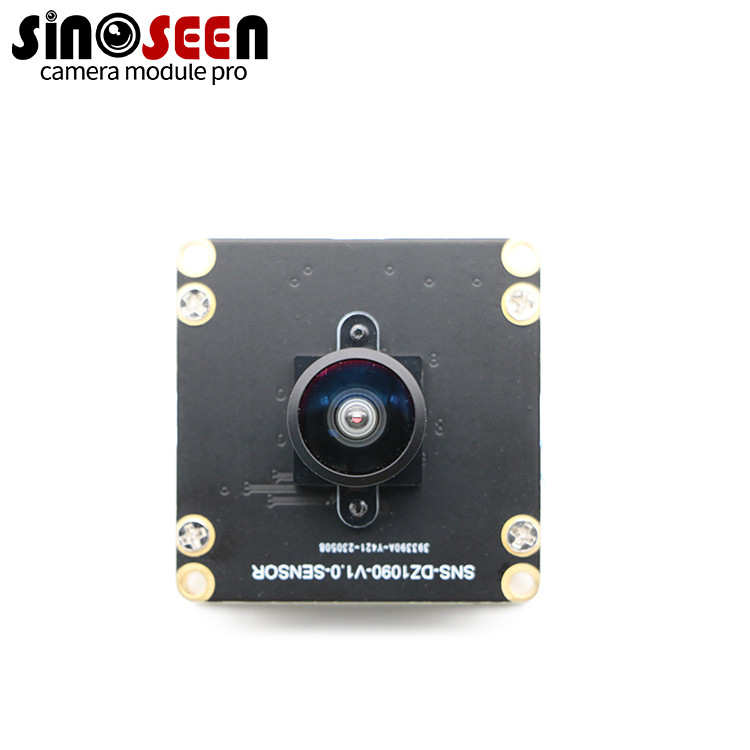

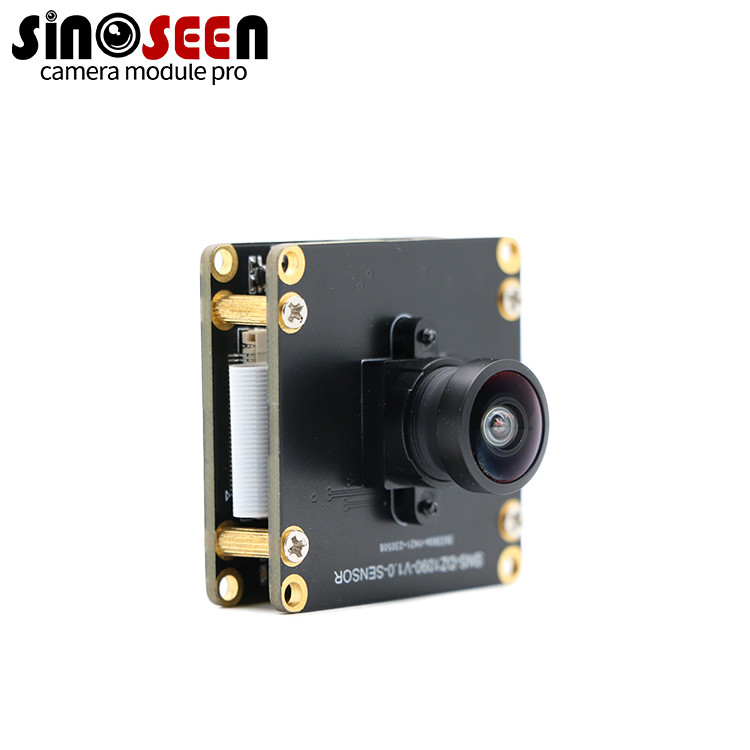

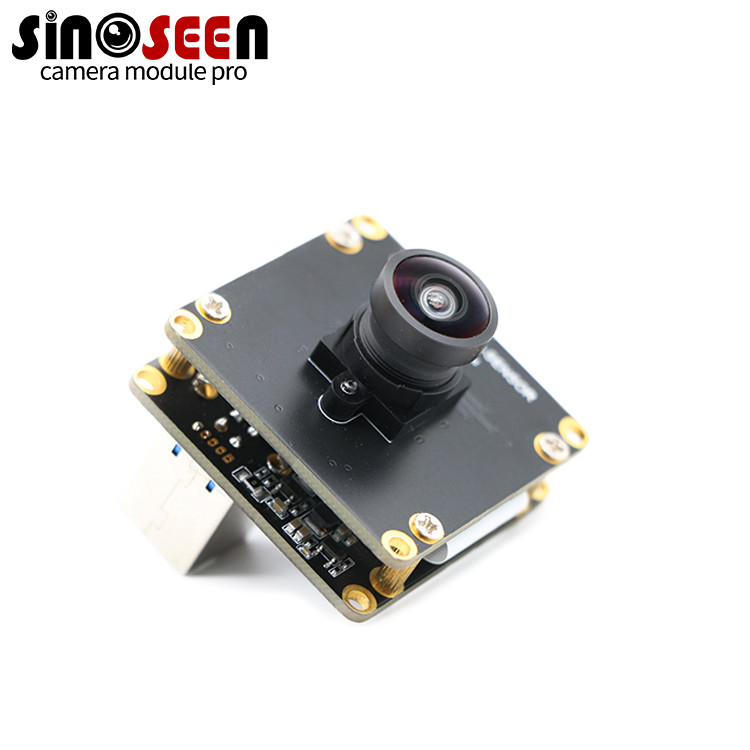

720P OV9281 30FPS B&W USB Camera Module for Machine Vision
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-DZ1090-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
- Parameter
- Related products
- Inquiry
Product Description
This Sinoseen 720P OV9281 B&W USB camera module is perfect for machine vision applications. It features a 1MP sensor with 720P resolution and captures smooth video at 30FPS. The monochrome sensor offers high light sensitivity and contrast, crucial for accurate object detection and quality control. The global shutter mechanism ensures distortion-free imaging, while the USB2.0 interface allows easy integration with various systems. Enhance your machine vision projects with this high-performance Sinoseen camera module.
Specification
|
Model No |
SNS-DZ1090-V1.0 |
|
Sensor |
1/4" Omnivision OV9281 CMOS |
|
Pixel |
1 Mega Pixel |
|
Most effective pixels |
1280(H) x 800(V) |
|
Pixel Size |
3.0µm x 3.0µm |
|
Image area |
3896um(H) x 2453um (V) |
|
Compression format |
MJPG / YUY2 |
|
Resolution & Frame rate |
See above |
|
Shutter Type |
Global Shutter |
|
Chroma |
B&W, Monochrome |
|
Focus type |
Fixed focus |
|
S/N ratio |
38dB |
|
Dynamic range |
68dB |
|
Dark current |
80e-/sec |
|
Interface type |
High speed USB2.0 |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Lens |
Focal length: 3.6mm |
|
|
Lens Size: 1/4 inch |
|
|
FOV: 60° |
|
|
Thread Size: M12*P0.5 |
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 180mW |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control |
Support |
|
Auto White Balance |
Support |
|
Auto Gain Control |
Support |
|
Dimension |
Customizable |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
