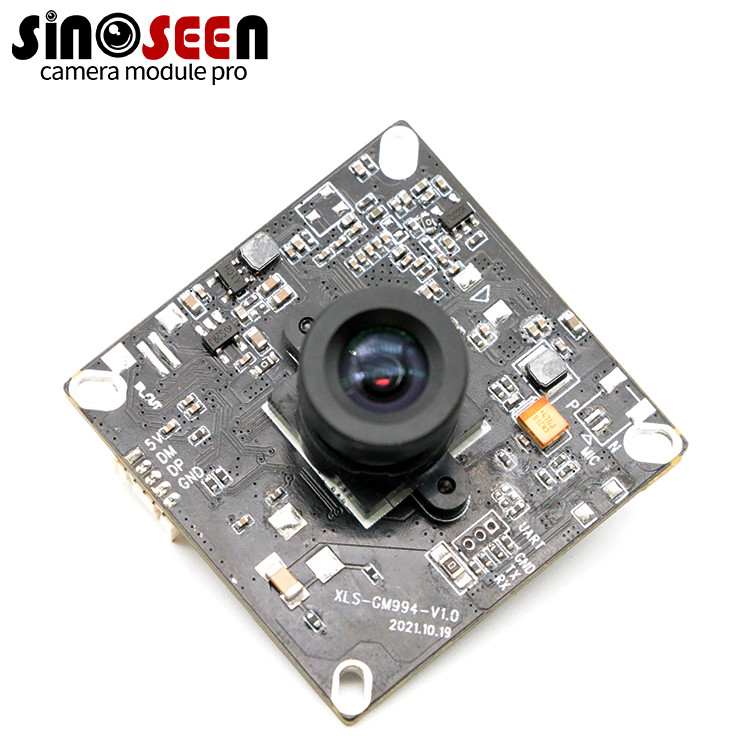

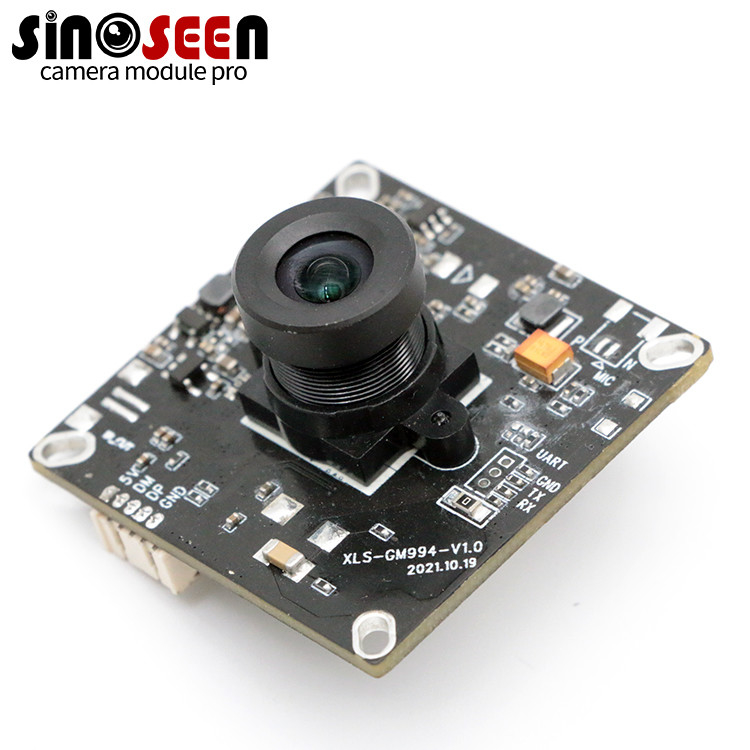

38x38mm 2MP USB Camera Module 1080P 30FPS with WiFi and GC2053 Sensor Fixed Focus
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-2MP-GC2053-iop |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
- Parameter
- Related products
- Inquiry
Product Description
Sinoseen 38x38mm 2MP USB Camera Module is an ideal solution for wireless high-quality imaging applications. Equipped with the GC2053 sensor, this module captures crisp 1080P video at 30FPS with high sensitivity and low power consumption, perfect for battery-powered devices. The integrated WiFi module allows seamless wireless connectivity, eliminating the need for cables and simplifying system integration. Designed with a fixed focus lens, it is particularly suited for consistent distance applications like video conferencing and surveillance.
Choose the Sinoseen 2MP USB Camera Module for a reliable, power-efficient wireless imaging solution.
Specification
| Parameter | Typical value |
| Optical Format | 1/2.9inch |
| Active pixel array | 1920*1080 |
| Pixel Size | 2.8um*2.8um |
| Shutter type | Electonic rolling shutter |
| ADC resolution | 10 bit ADC |
| Max Frame rate | 30fps@full size |
| Power Supply | AVDD28:2.8V |
| DVDD:1.2V | |
| IOVDD:1.8V | |
| Power Consumption | TBD |
| SNR | TBD |
| Dark Current | TBD |
| Sensitivity | TBD |
| Dynamic range | TBD |
| Operating temperature: | -20°C to 80°C |
| Stable Image temperature | 0°C to 60°C |
| Optimal Lens chief ray angle(CRA) | 12(linear) |
| Package type | CSP |
| Input clock frequency | 6-27MHz |
