1080P 30FPS Fixed Focus 2MP Camera Module 38x38mm with OV2735 Sensor | Sinoseen
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-GM872-V1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
- Parameter
- Related products
- Inquiry
Product Description

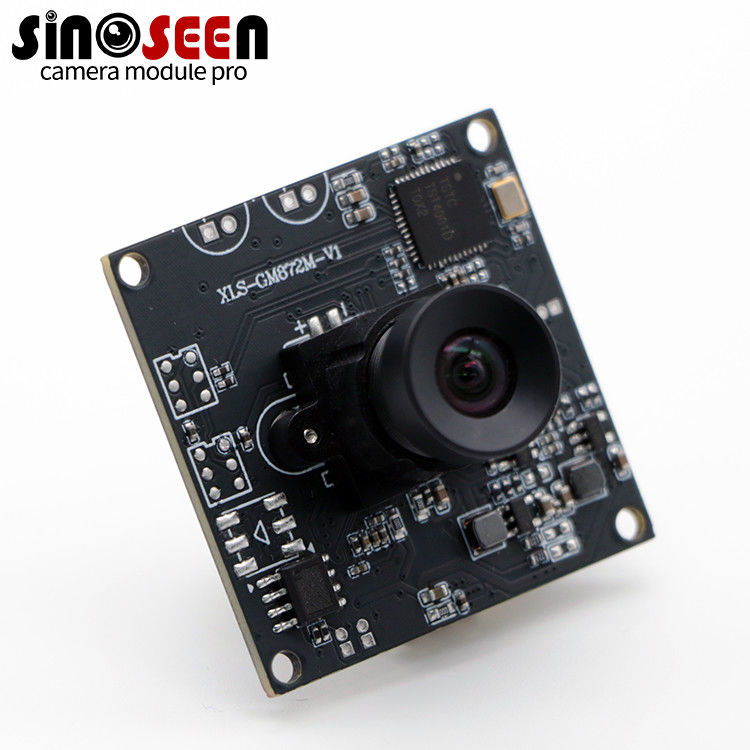

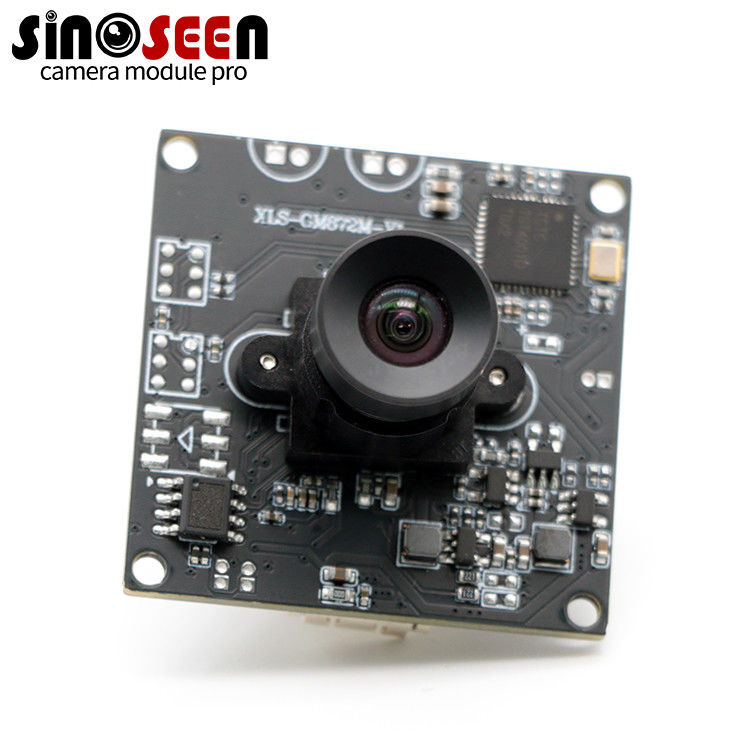

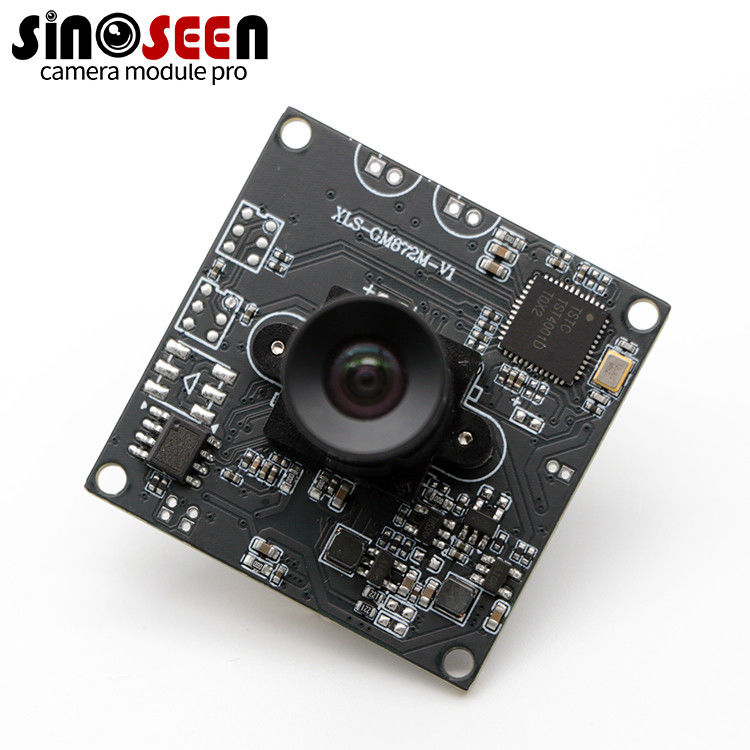

Sinoseen's 2MP USB camera module uses Omnivision's OV2735 sensor. The OV2735 sensor supports 30FPS at 1920x1080 resolution and 60FPS at 720P resolution. Its picture quality is excellent and stable, widely used in network cameras, video conferencing machines, advertising machines and commercial display machines and other daily applications.
The current size of the module is standard 38x38mm, with a fixed focal length lens and a field of view (DFOV) of 95 degrees. If you need another size or other lens Angle, please let us know your requirements and we will customize the camera module for you according to each of your requirements.
Specification
|
Model No |
SNS-GM872-V1 |
|
Sensor |
1/2.7’’ Omnivision OV2735 CMOS |
|
Pixel |
2 Mega Pixel |
|
Most effective pixels |
1920(H) x 1080(V) |
|
Pixel Size |
3.0µm x 3.0µm |
|
Image Area |
5808µm x 3288µm |
|
Compression format |
YUV2 / MJPG |
|
Resolution |
See above |
|
Frame rate |
See above |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
S/N ratio |
TBDdB |
|
Dynamic range |
TBDdB |
|
Sensitivity |
3700 mV/lux-sec |
|
Interface type |
USB2.0 |
|
|
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Lens |
Focal length: 3.6mm |
|
IR Cut filter: 850nm |
|
|
FOV: 95° |
|
|
Thread Size: M12*P0.5 |
|
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 200mA |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Dimension |
38x38MM |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 55°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
