1/2.75 Inch OV32A1Q Sensor ABLC Full HD MIPI Camera Module
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-OV32A1Q-GHU |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
- Parameter
- Related products
- Inquiry
Product Description

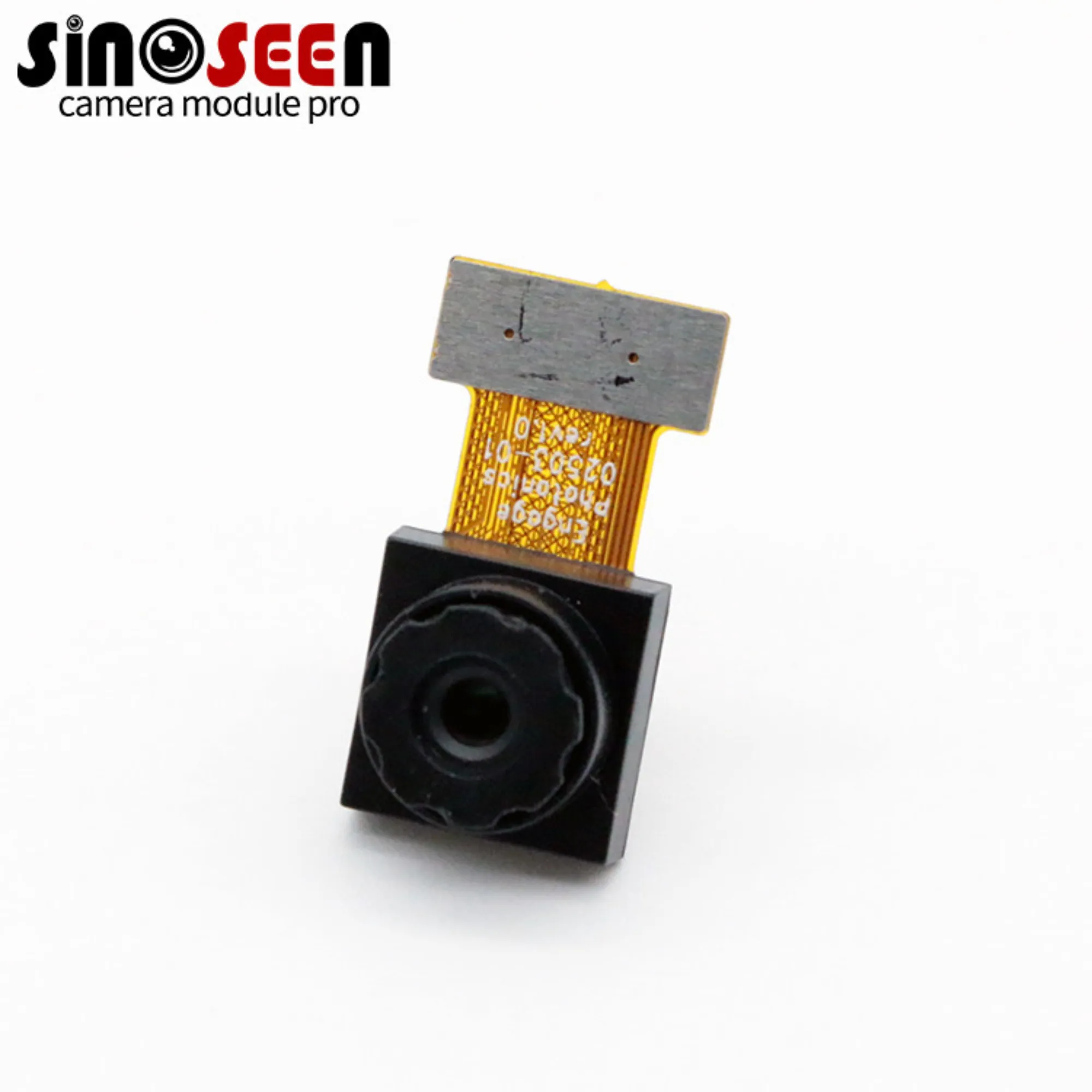

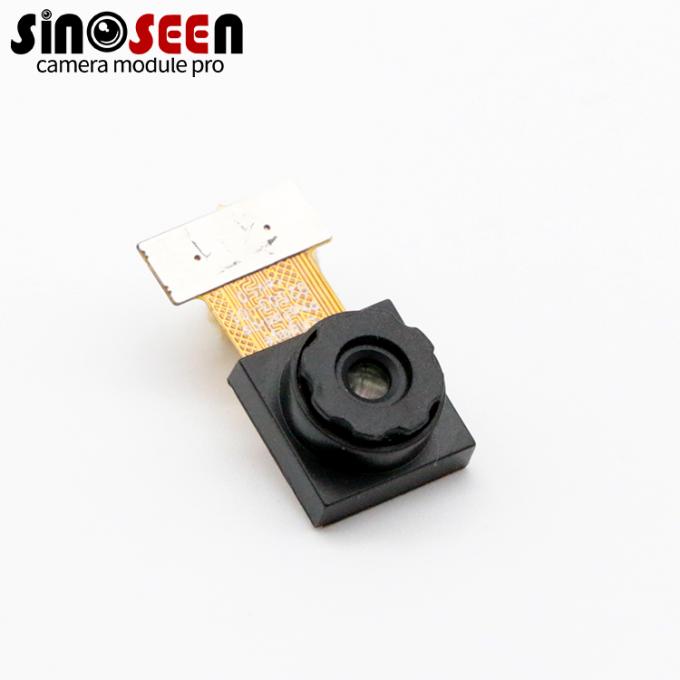

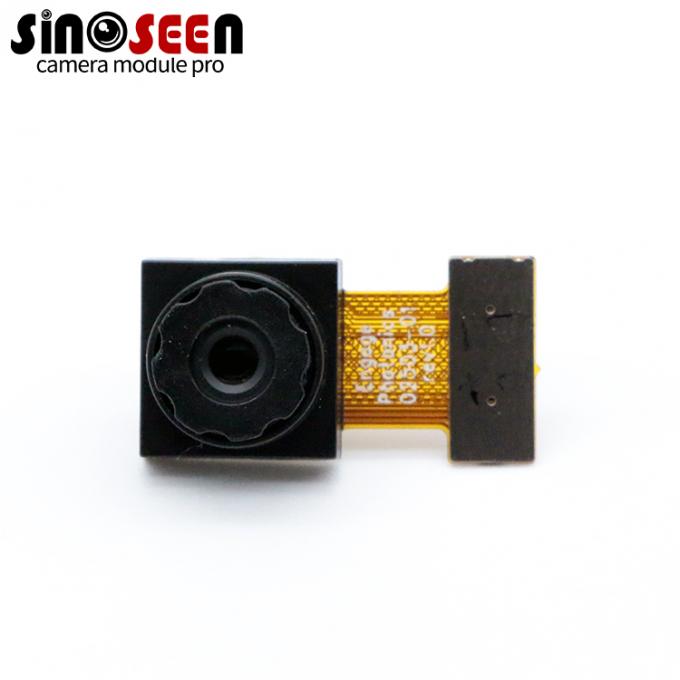

Introducing our new full HD Low Power Consumption 1/2.75 Inch MIPI Camera Module equipped with the OV32A1Q sensor, designed to deliver high-quality imaging with efficiency and precision.
With a maximum resolution of 6528 x 4896 and a pixel size of 0.8µm x 0.8µm, this camera module offers exceptional clarity and detail. Its features include automatic black level calibration (ABLC), programmable controls for frame rate, mirror and flip, binning, cropping, and windowing, along with support for dynamic DPC cancellation and horizontal and vertical subsampling.
Ideal for mobile smartphones, security cameras, and smart home/IoT devices, this camera module provides versatility and reliability. The compact size and low power consumption make it suitable for various applications, while the electronic rolling shutter ensures smooth and accurate image capture.
Experience enhanced imaging capabilities with our Low Power Consumption Full HD MIPI Camera Module, offering superior performance and flexibility for your imaging needs.
|
Model No |
SNS-OV32A1Q-GHU |
|
Sensor |
1/ 2.75’’ OV32A1Q |
|
Lens size |
1/2.75 inch |
|
Most effective pixels |
6528 (H) x 4896 (V) |
|
Pixel Size |
0.8µm x 0.8µm |
|
Video output |
YUV2/MJPG |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
Lens view |
FOV100°(optional),F/N(optional) |
|
Operating Voltage |
DC5V |
|
Operating Current |
MAX120MMA |
|
Storage temperature |
-30°C to 85°C |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
Shenzhen Sinoseen Technology Co., LTD
China top 10 camera module manufacturer
If you are struggling to find the right camera module solution, please contact us,
we will customize all kinds of USB/MIPI/DVP interface camera modules according to your needs,
and have a dedicated team to provide you with the most suitable solution.
Current avaliable global shutter USB camera module
Omnivision OV7251 0.3MP Monochrome(black and white)
Omnivision OV9281 1MP Monochrome(black and white)
ON Semiconductor AR0144 1MP Monochrome(black and white) or RGB color
Omnivision OG02B1B 2MP Monochrome(black and white)
Omnivision OG02B10 2MP RGB color
