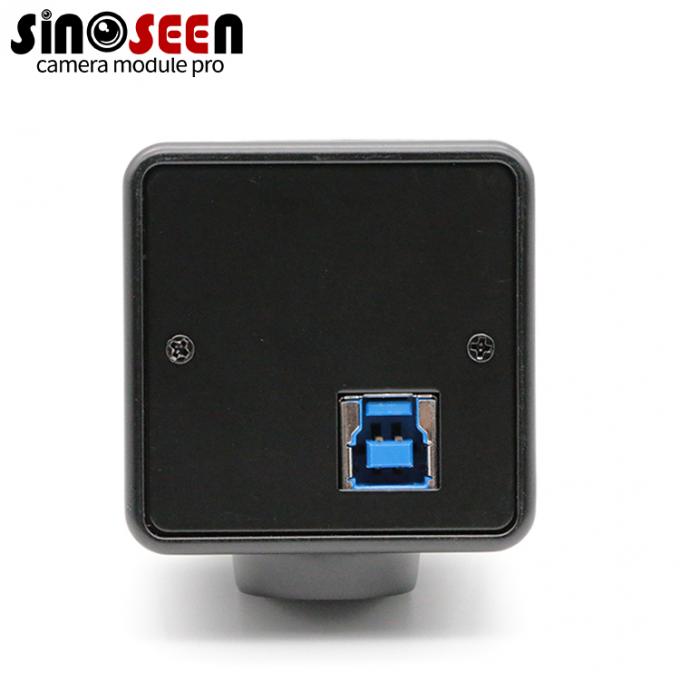

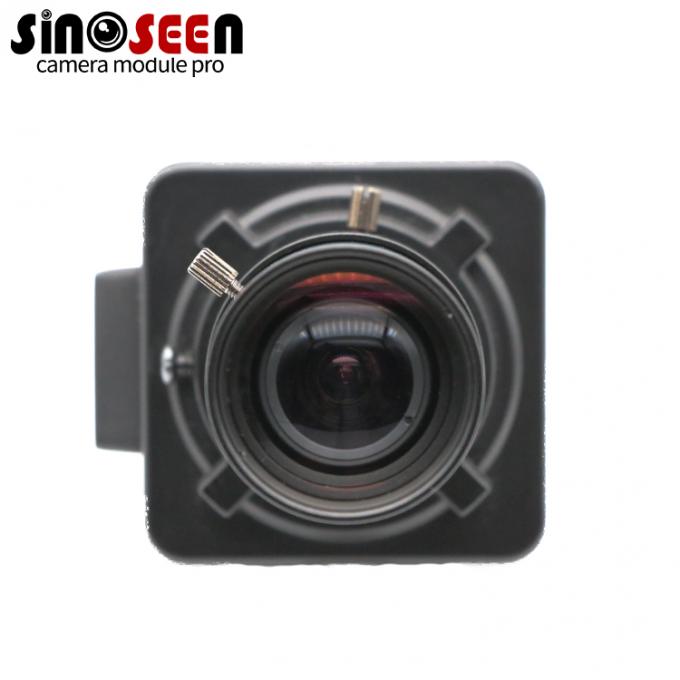

Sony IMX577 4K USB Sensor Camera Module For Robot vision
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-WK577-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
- Parameter
- Related products
- Inquiry
- Detail Information
Product Description
The HDR 4K USB Camera Module features a high-end Sony IMX577 sensor with 12 million pixels, high frame rate, and high resolution. The HDR 4K USB Camera Module features a high-end Sony IMX577 sensor with 12 million pixels, high frame rate, and high resolution. The interface is USB2.0 and compatible with USB3.0. Additionally, this product has low power consumption, making it ideal for use in surveillance, such as security cameras, 360 panoramic driving recorders, consumer cameras, high-definition video, drones, sports DV, and other imaging fields.
| Effective Pixels | 3840(H)X2880(V) |
| Image Sensor | (Type 1/2.3)12.3 Mega-pixel CMOS |
| Sensor Type | Sony IMX577 |
| Chip size | 7.564 mm (H) × 5.476 mm (V) |
Substrate material | Silicon |
operating temperature | 0～60℃ |
storage temperature | -20～80℃ |
Input frequency range | 27.0 MHz |
| Dimensions | Customizable |
Shenzhen Sinoseen Technology Co., LTD
China top 10 camera module manufacturer
If you are struggling to find the right camera module solution, please contact us,
we will customize all kinds of USB/MIPI/DVP interface camera modules according to your needs,
and have a dedicated team to provide you with the most suitable solution.
Current avaliable global shutter USB camera module
Omnivision OV7251 0.3MP Monochrome(black and white)
Omnivision OV9281 1MP Monochrome(black and white)
ON Semiconductor AR0144 1MP Monochrome(black and white) or RGB color
Omnivision OG02B1B 2MP Monochrome(black and white)
Omnivision OG02B10 2MP RGB color
