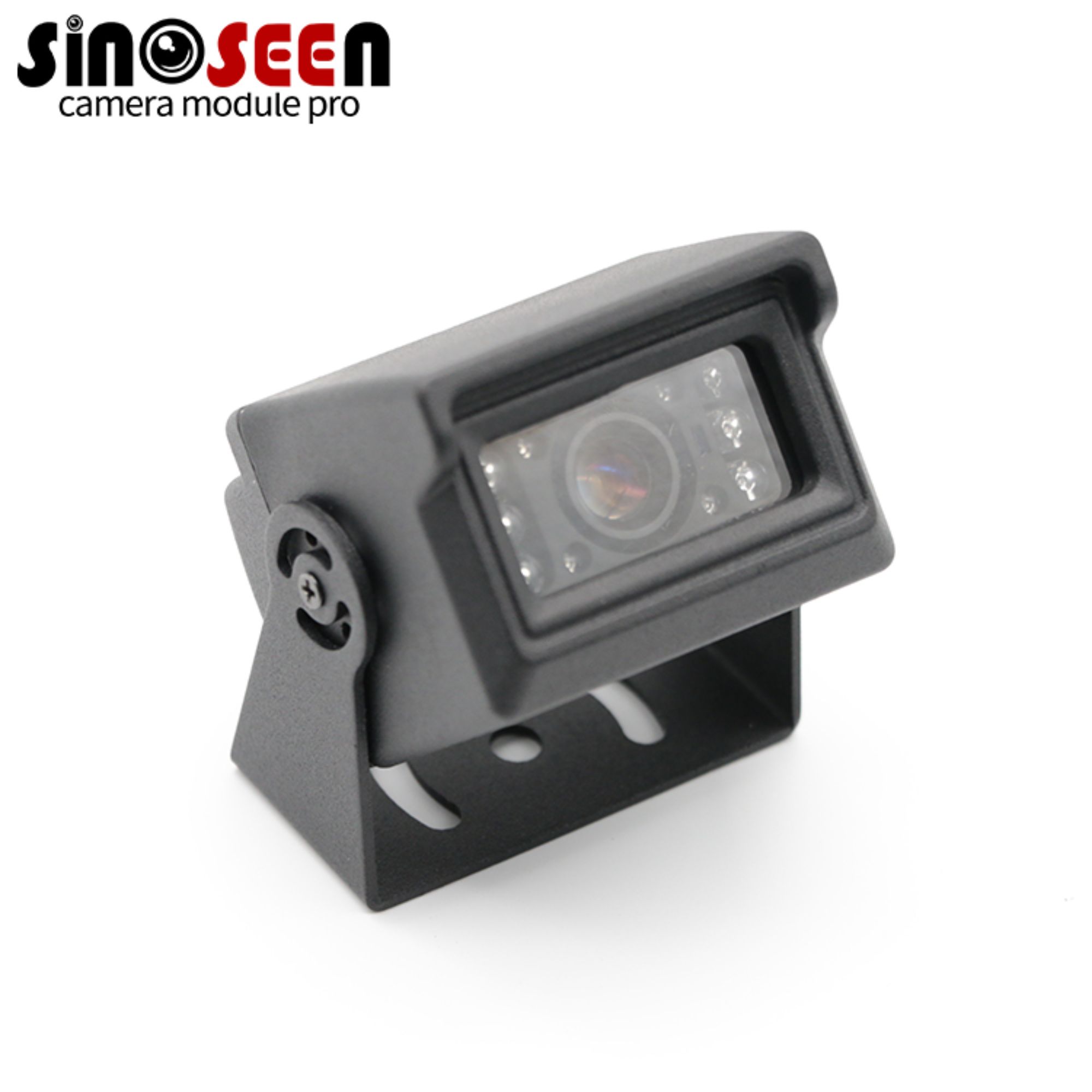

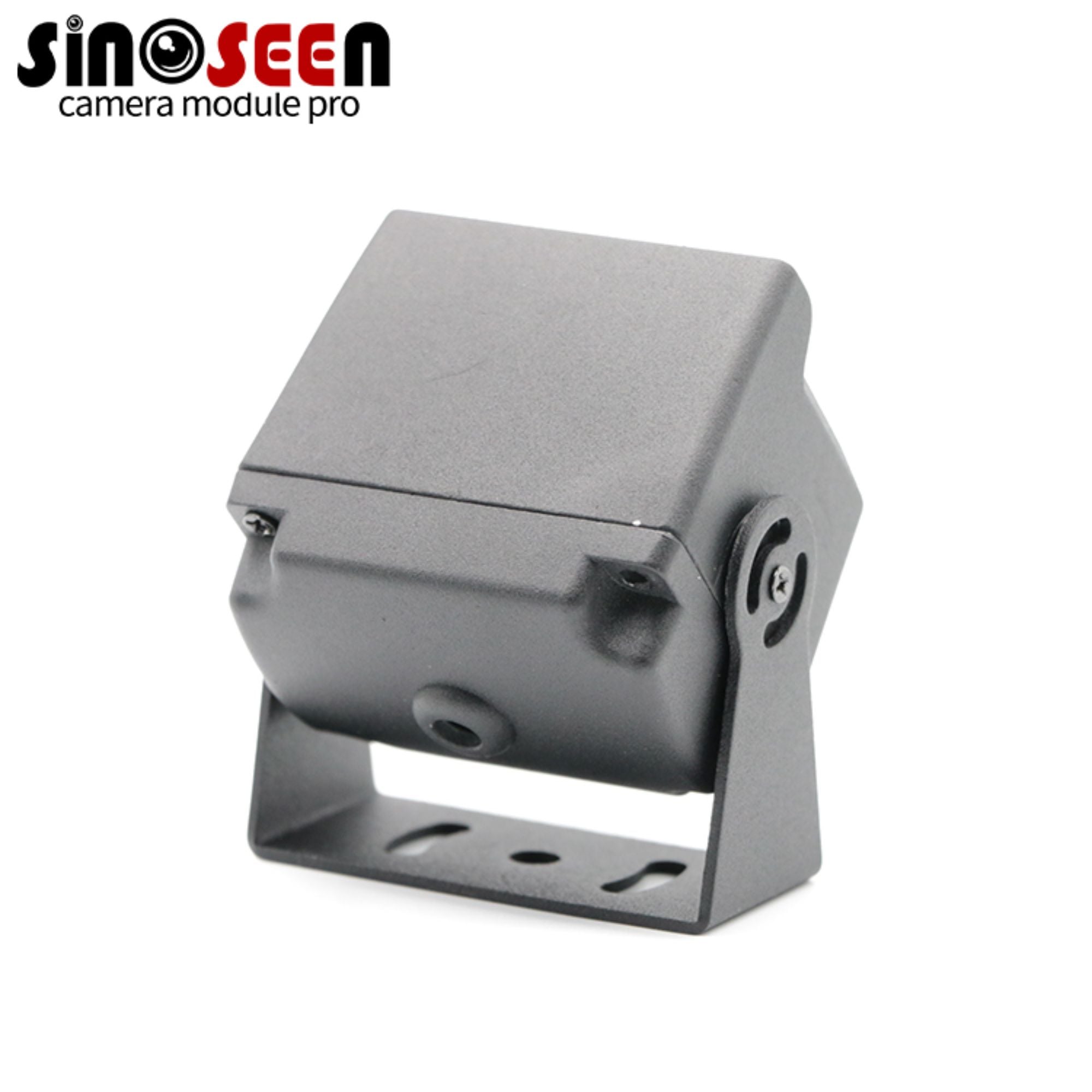

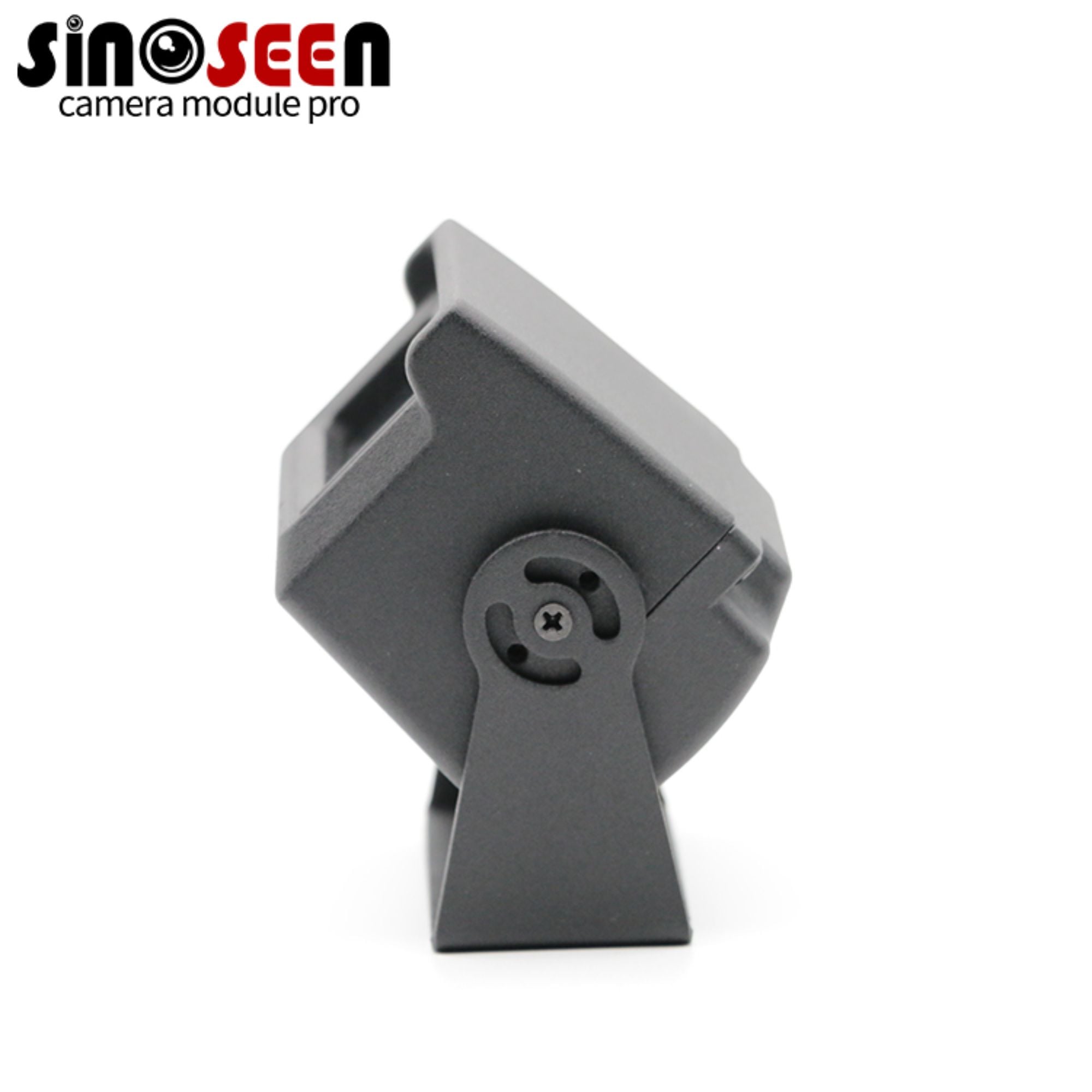

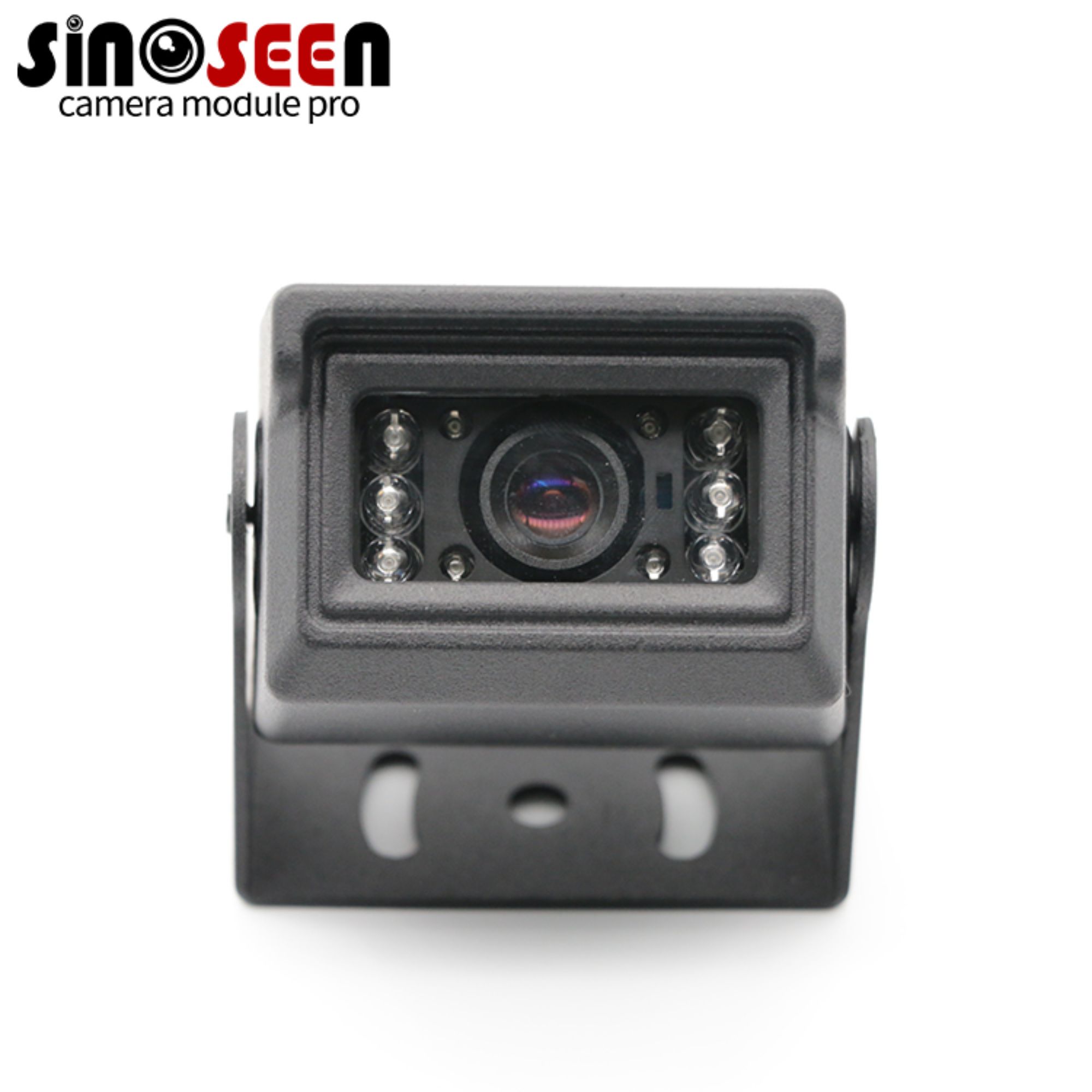

High-Speed Imaging Night Vision Camera for Industrial And Vehicle Surveillance Use OV9712

Product Details:

Place of Origin:

Shenzhen,China

Brand Name:

Sinoseen

Certification:

RoHS

Model Number:

SNS-1MP-OV9712-H1

Payment & Shipping Terms:

Minimum Order Quantity:

3

Price:

negotiable

Packaging Details:

Tray+Anti-static bag in carton box

Delivery Time:

2-3weeks

Payment Terms:

T/T

Supply Ability:

500000 pieces/month

  • Parameter
  • Related products
  • Inquiry
  • Detail Information

Type:

Night Vision Camera Module

Sensor:

1/4" OV9712

Resolution:

1MP 1280(H)X800(V)

Dimensions:

49MMx19.5MM(customizable)

Lens FOV:

100°(optional)

Focus Type:

Fixed Focus

Interface:

USB2.0

Feature:

HD

High Light:

ODM Night Vision Camera Module

1MP ov9712 Night Vision Camera Module

1MP ov9712 camera module



Product Description

This is one of our car camera modules. Although its appearance and structure are similar to other models, the difference lies in the chip function and lens angle.

The camera has a resolution of 1280x720 and uses a 1/4-inch Omnivision OV9712 CMOS sensor with low sensitivity of 3700mV/lux-sec. It can provide clear images in various lighting conditions, from bright daylight to almost complete darkness.





Specification

Model No

SNS-1MP-OV9712-H1

Sensor

1/4’’ Omnivision OV9712 Sensor

Pixel

1 Mega Pixel

Most effective pixels

1280(H) x 720(V)

Pixel Size

3.0µm x 3.0µm

Image area

3888µm x 2430µm

Compression format

MJPEG / YUV2 (YUYV)

Resolution & Frame rate

See above

Shutter Type

Electronic rolling shutter

Focus type

Fixed focus

S/N ratio

40dB

Dynamic range

69dB

Sensitivity

3700mV / lux-sec

CRA (chief ray angle)

25°

Interface type

USB2.0

Lens FOV

100°



Adjustable parameter

Brightness/Contrast/Color saturation/Hue/Definition/

Gamma/White balance/Exposure

Audio frequency

Optional

Power supply

USB BUS POWER

Power consumption

DC 5V, 120mW

Main chip

DSP/SENSOR/FLASH

Auto Exposure Control (AEC)

Support

Auto White Balance (AEB)

Support

Auto Gain Control (AGC)

Support

Dimension

Customizable

Storage temperature

-20°C to 70°C

Operating temperature

0°C to 60°C

USB cable length

Default





Support OS

WinXP/Vista/Win7/Win8/Win10

Linux with UVC(above linux-2.6.26)

MAC-OS X 10.4.8 or later

Android 4.0 or above with UVC

High-Speed-Imaging-Night-Vision-Camera-OV9712 High-Speed-Imaging-Night-Vision-Camera-OV9712-02



Shenzhen Sinoseen Technology Co., LTD

China top 10 camera module manufacturer

If you are struggling to find the right camera module solution, please contact us, we will customize all kinds of USB/MIPI/DVP interface camera modules according to your needs, and have a dedicated team to provide you with the most suitable solution.



Camera module customizationsuggestion



According to the actual application scenarios and functional goals, the camera module needs to comprehensively consider the product structure size, image clarity, frame rate, lens angle, lighting scene and other factors to select the appropriate sensor, lens and solution. needs customization. These products are only used for customer testing DEMO,please contact our customer service to inform you which product you want to use the camera module on? What function is implemented? Are there any special requirements? According to cost targets and other comprehensive factors, we help you choose the right sensor+ lens solution, and then design the product PCB or FPC according to the structural requirements.



examples: the customer is going to make a person recognition and comparison machine. If it is used in a well-lit indoor environment, we recommend that customers use ordinary lenses and sensors. If the light or backlight is not good, we recommend customers to use WDR wide dynamic sensor. If customers have high requirements for safety, we recommend that customers use WDR and black and white infrared binocular recognition camera modules. When determining the sensor and lens plan, the customer should adjust the color, white balance and saturation parameters according to the actual environment to achieve the target effect.
