Edge AI Devices MIPI Camera Module With Omnivision OV10635 HDR

Edge AI Devices MIPI Camera Module With Omnivision OV10635 HDR

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Sinoseen
Certification:	RoHS
Model Number:	SNS-1MP-OV10635-M1.0

Payment & Shipping Terms:

Minimum Order Quantity:	3
Price:	negotiable
Packaging Details:	Tray+Anti-static bag in carton box
Delivery Time:	2-3weeks
Payment Terms:	T/T
Supply Ability:	500000 pieces/month

Inquiry

Parameter
Related products
Inquiry

Detail Information

Type:	MIPI Camera Module	Sensor:	1/2.7" Omnivision OV10635
Resolution:	1MP 1280Hx800V	Dimensions:	Customizable
Lens FOV:	90°(optional)	Focus Type:	Fixed Focus
Interface:	MIPI	Feature:	HDR
High Light:	WXGA MIPI Camera Module OV10635 MIPI Camera Module MIPI ov10635 camera module

Product Description

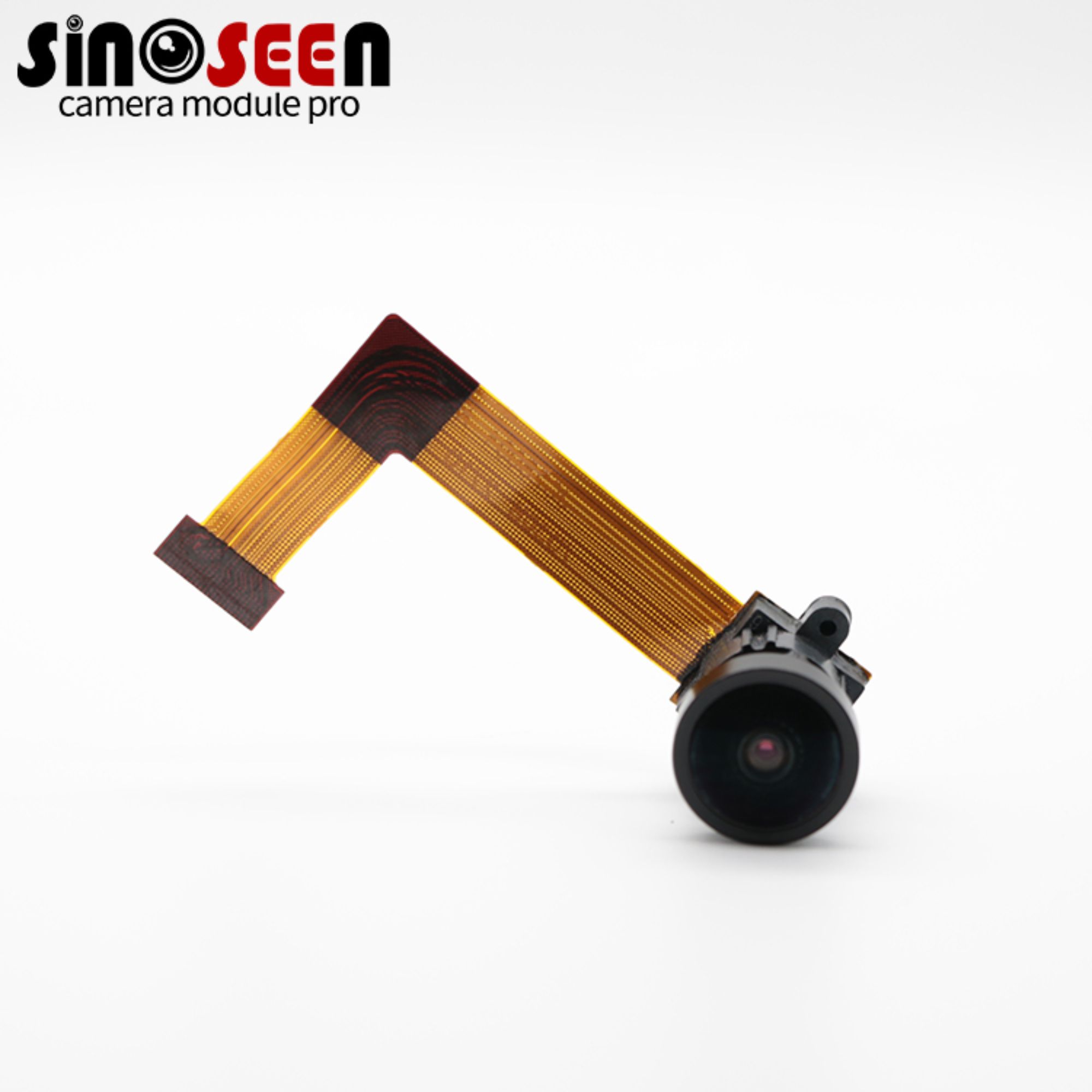

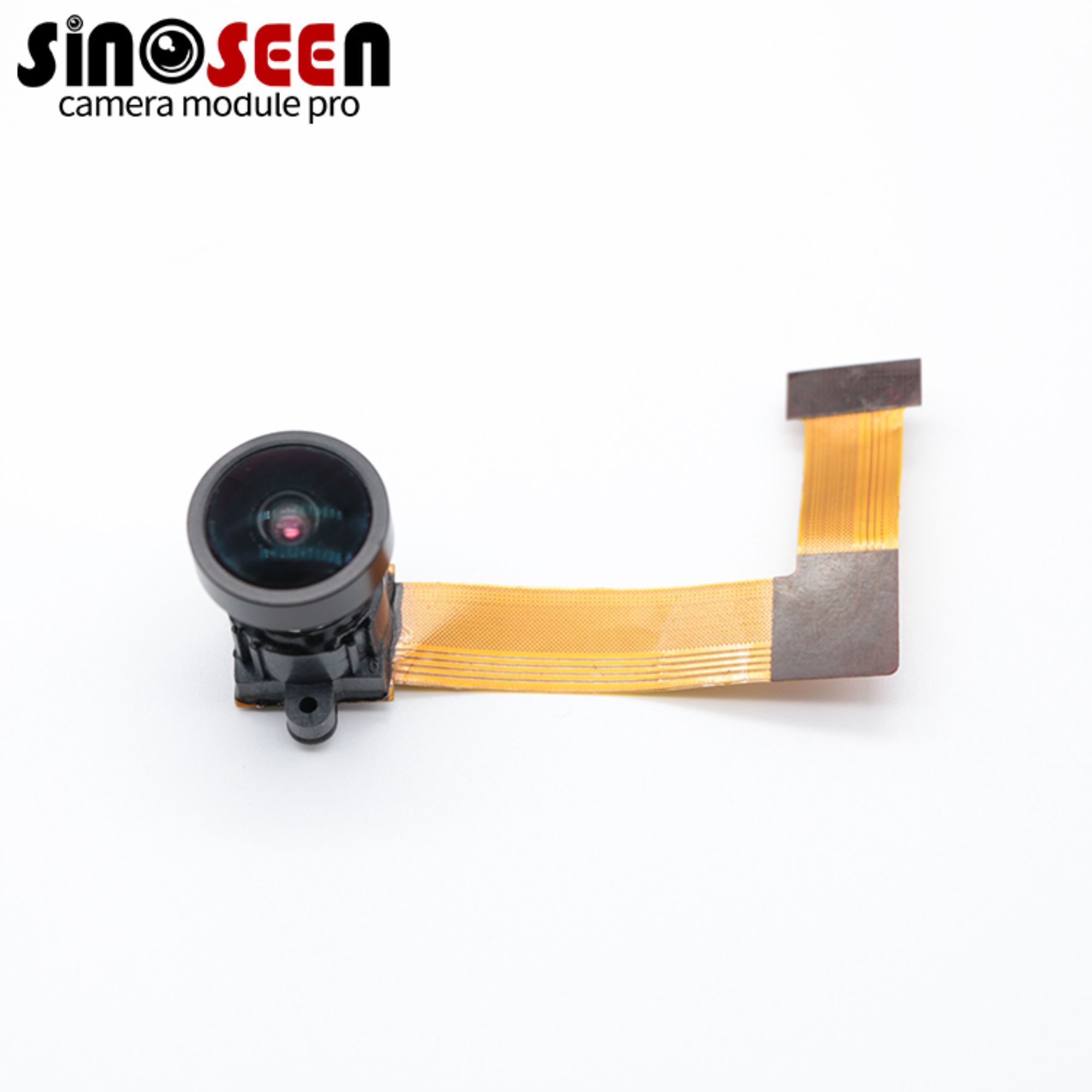

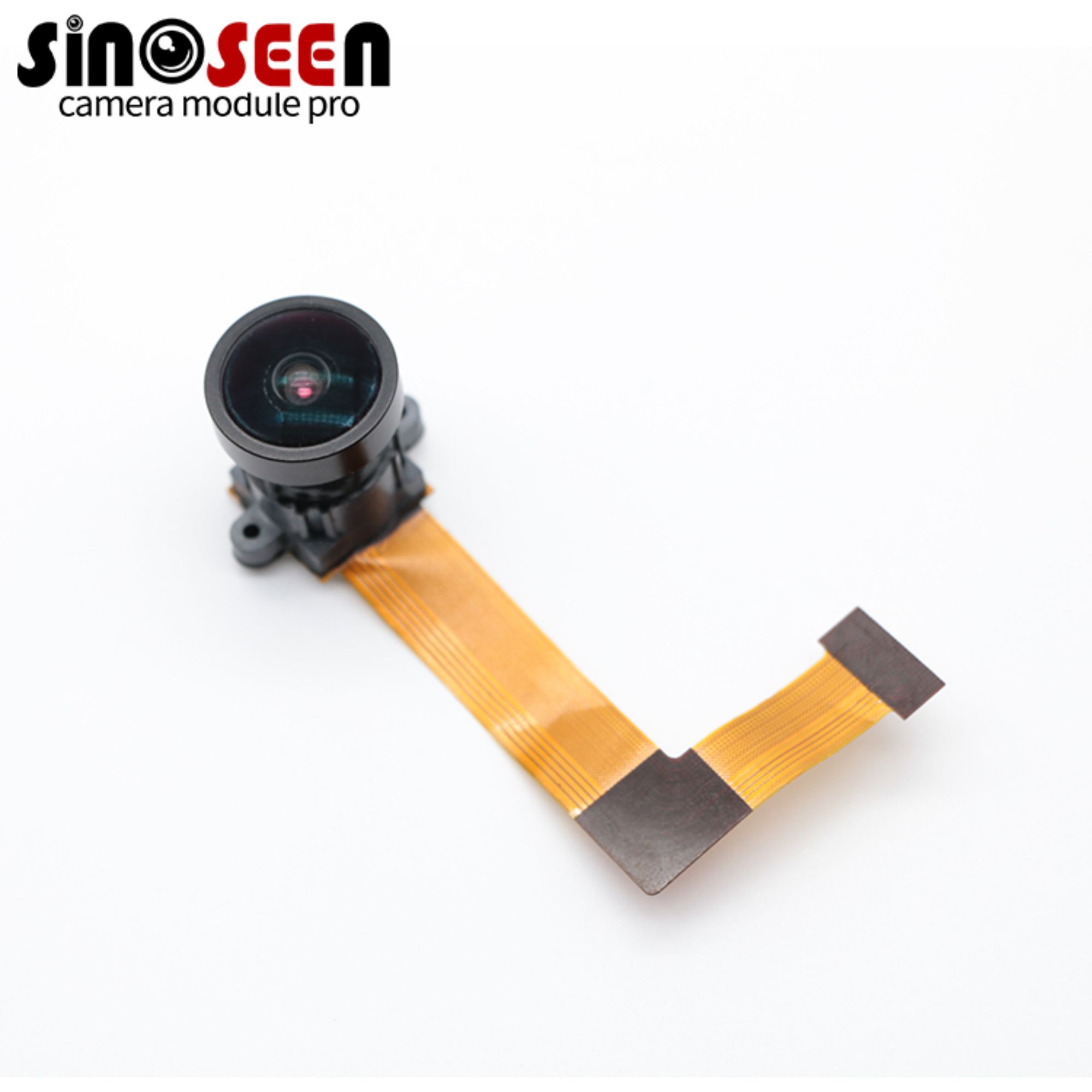

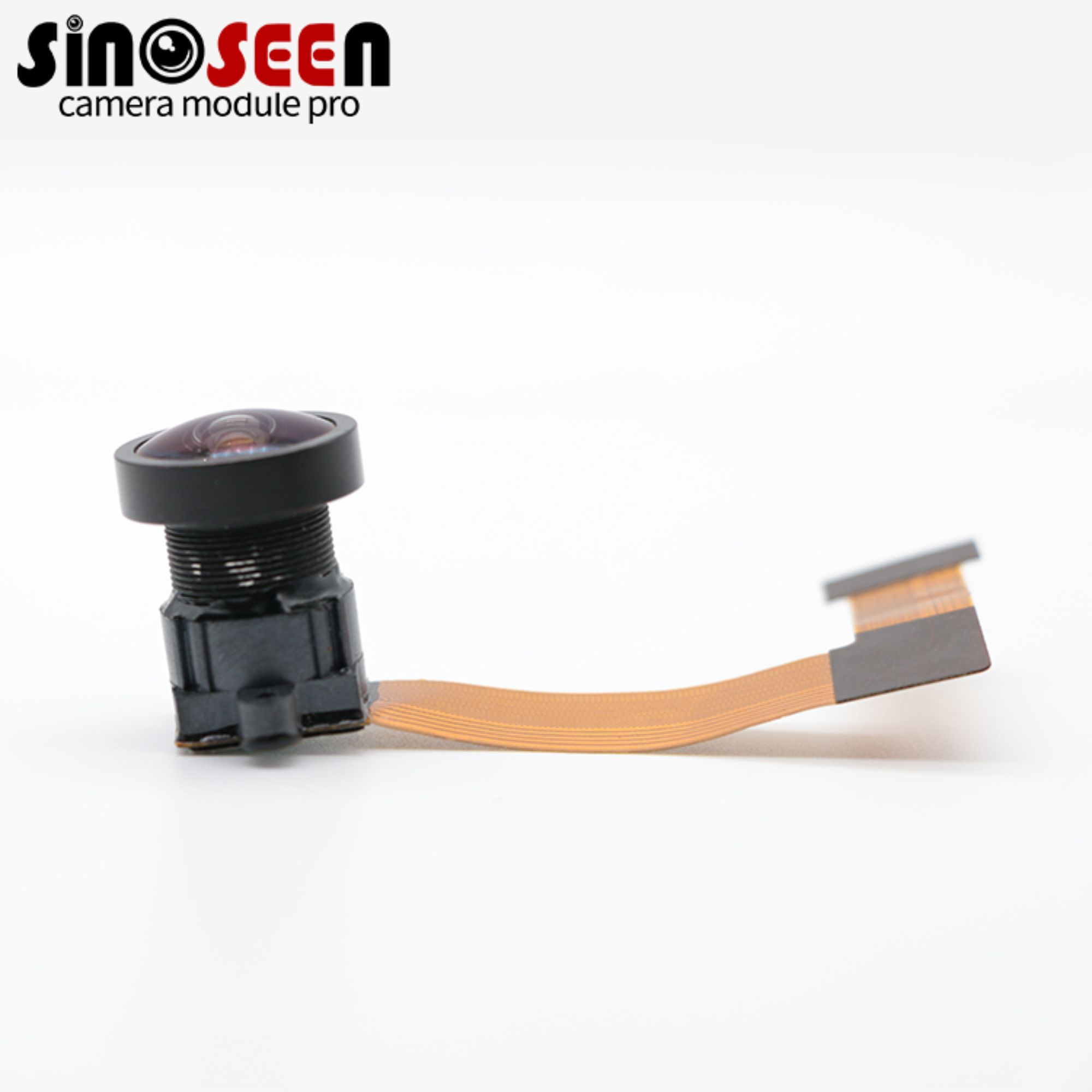

The MIPI camera module uses a 1/2.7" Omnivision OV10635 sensor with an image resolution of 1280*800, 1MP imaging, HDR and Fixed Focus capabilities, and supports the following image sizes:

WXGA (1280x800),

HD 720p (1280x720),

WVGA (752x480),

VGA (640x480),600x400,

CIF (352x288),

QVGA (320x240).

The module has high sensitivity and is not afraid of the influence of ambient temperature, even in the environment of -40℃-105℃, it can also present high-quality images.

Specification

Module No	SNS-1MP-OV10635-M1.0
Pixel Size	4.2μm x 4.2μm
Effective Pixels	1280H×800H
Video output	Raw Bayer10bit/8bit
Active Array Size Video Rate	30FPS
Image Sensor	1/2.7"
Sensor Type	Omnivision OV10635
Lens view	FOV90°(optional),F/N(optional)
TV Distortion	<1%
AEC	Support
AEB	Support
AGC	Support
Operating voltage	AVDD:3.0~3.6V DOVDD:1.7~3.6V DVDD:1.7~1.9V
Operating temperature	-40～105℃
Storage temperature	0～70℃
Dimensions	Customizable

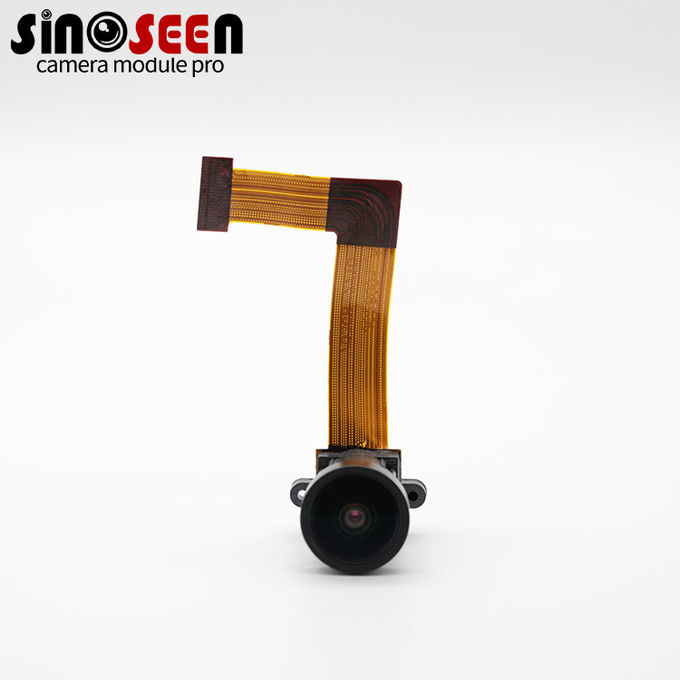

Edge-AI-Devices-MIPI-Camera-OV10635

Shenzhen Sinoseen Technology Co., LTD

China top 10 camera module manufacturer

If you are struggling to find the right camera module solution, please contact us, we will customize all kinds of USB/MIPI/DVP interface camera modules according to your needs, and have a dedicated team to provide you with the most suitable solution.
