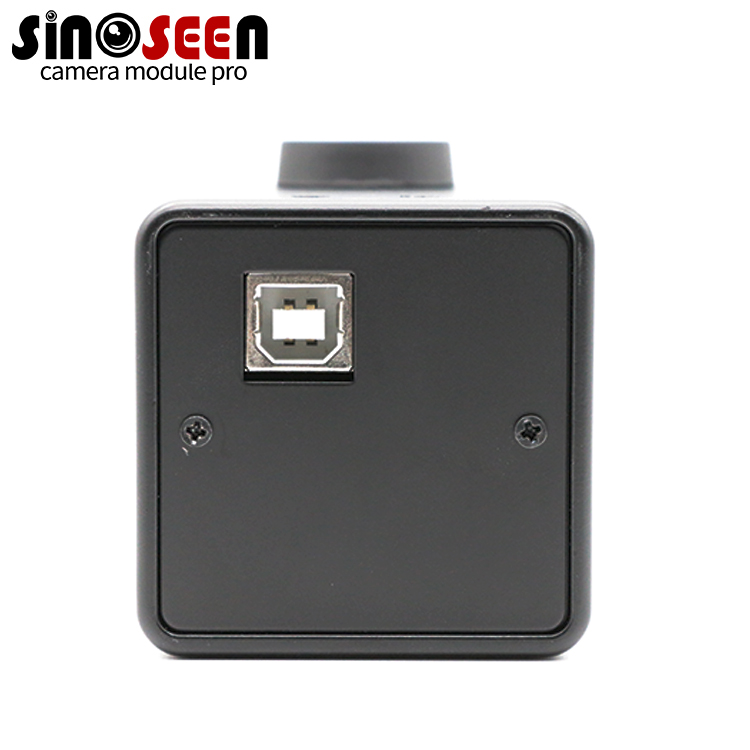

60fps Electronic Shelf Labeling Module 1/4 Inch AR0144 Camera Module
Product Details:
Place of Origin: | Shenzhen,China |
Brand Name: | Sinoseen |
Certification: | RoHS |
Model Number: | SNS-WK331M-V1 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 |
Price: | negotiable |
Packaging Details: | Tray+Anti-static bag in carton box |
Delivery Time: | 2-3weeks |
Payment Terms: | T/T |
Supply Ability: | 500000 pieces/month |
- Parameter
- Related products
- Inquiry
- Detail Information
Type: | USB Camera Module | Sensor: | 1/4" ON Semiconductor AR0144 |
Resolution: | 1MP 1600(H)X1200(V) | Dimensions: | Customizable |
Lens FOV: | 95°(optional) | Focus Type: | Auto Focus |
Interface: | USB2.0 | Feature: | Global Shutter |
High Light: | Shutter USB Camera Module 1Mp FF USB Camera Module 60fps Global Shutter Camera Module | ||
Product Description
Introducing our new camera module featuring the AR0144 sensor, which delivers industry-leading performance. This product captures clear and accurate images in both bright and low-light conditions, withhigh shutter efficiency and signal-to-noise ratio that substantially reduce ghosting and noise interference, resulting in improved overall image quality. The module has an innovative global shutter design that is optimized to meet stringent requirements. It captures accurate and fast images in both static and dynamic scenes. The sensors are available in monochrome and color and are compact for easy integration into space-constrained designs.
The module has a wide range of features and functions to meet diverse end application needs. Barcode scanners are static applications that are easy to design into handheld products, ensuring power, time, and convenience for the first scan.On the other hand, drones are dynamic applications where the sensor's low power consumption can extend the charging time interval. Additionally, the sensor's imaging performance can better map the environment and avoid serious collisions. The module can provide a cost-effective and compact solution for capturing dual images for 3D mapping or depth sensing in 3D camera and AR/VR designs. Additionally, it includes adjustable automatic exposure control and automatic shading correction.
Specification
Model No | SNS-WK331M-V1 |
Sensor | 1/4’’ ON Semiconductor AR0144 |
Pixel | 1 Mega Pixel |
Most effective pixels | 1280H x 800V |
Pixel Size | 3.0µm x 3.0µm |
Chroma | COLOR Image |
Compression format | MJPG/YUY2 |
Resolution & Frame rate | See above |
Shutter Type | Global shutter |
Focus type | Auto focus |
S/N ratio | TdB |
Dynamic range | 64dB |
Protocol | Plug-&-Play (UVC compliant) |
Interface type | USB2.0 high speed |
Lens | Lens Size: 1/4 inch |
FOV: 95° | |
Thread Size: M12*P0.5 | |
Audio frequency | Optional |
Power supply | USB BUS POWER |
Power consumption | DC 5V, 180mW |
Main chip | DSP/SENSOR/FLASH |
Dimension | customizable |
Storage temperature | -20～85℃ |
Operating temperature | 0°C to 60°C |
USB cable length | Default |
Adjustable parameter | Brightness/Contrast/Color saturation/Hue/ Definition/Gamma/White balance |
Support OS | WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
Shenzhen Sinoseen Technology Co., LTD
China top 10 camera module manufacturer
If you are struggling to find the right camera module solution, please contact us, we will customize all kinds of USB/MIPI/DVP interface camera modules according to your needs, and have a dedicated team to provide you with the most suitable solution.
Current avaliable global shutter USB camera module
Omnivision OV7251 0.3MP Monochrome(black and white)
Omnivision OV9281 1MP Monochrome(black and white)
ON Semiconductor AR0144 1MP Monochrome(black and white) or RGB color
Omnivision OG02B1B 2MP Monochrome(black and white)
Omnivision OG02B10 2MP RGB color
