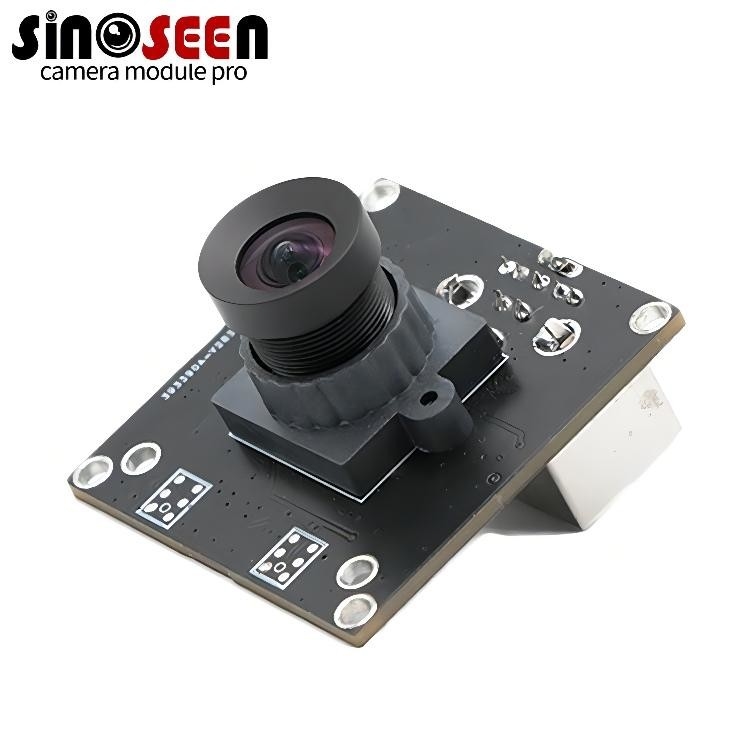

USB3.0 2MP 1080P 60FPS Camera Module with IMX307 for Face Recognition

USB3.0 2MP 1080P 60FPS Camera Module with IMX307 for Face Recognition

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Sinoseen
Certification:	RoHS
Model Number:	SNS-GM307-V1.0

Payment & Shipping Terms:

Minimum Order Quantity:	3
Price:	negotiable
Packaging Details:	Tray+Anti-static bag in carton box
Delivery Time:	2-3weeks
Payment Terms:	T/T
Supply Ability:	500000 pieces/month

Inquiry

Parameter
Related products
Inquiry

Detail Information

Type:	2MP Camera Module	Sensor:	1/2.8" SONY IMX307
Resolution:	1945 (H) X 1097 (V)	Dimensions:	Customizable
Pixel Size:	2.9 µm (H) × 2.9 µm (V)	Focus Type:	Fixed Focus
Interface:	USB3.0	Feature:	HD
High Light:	IMX307 USB 3.0 Camera Module , 30FPS USB 3.0 Camera Module , USB 3.0 2MP Camera Module

Product Description

Sinoseen USB3.0 2MP 1080P camera module features the SONY Starvis IMX307 CMOS sensor. With 1920x1080 resolution at 60fps, it offers top-quality, stable images. Ideal for face recognition and other applications requiring excellent low light performance. Supports MJPEG, YUY2, and H.264 compression formats. Compatible with multiple operating systems including Windows, Linux, macOS, and Android. Choose Sinoseen for advanced imaging solutions.

Specification

Model No	SNS-GM307-V1.0
Sensor	1/2.8’’ SONY IMX307 CMOS
Pixel	2 Mega Pixel
Most effective pixels	1920(H) x 1080(V)
Pixel Size	2.9µm x 2.9µm
Image area	1937(H) x 1097(V)
Compression format	MJPEG / YUV2/H.264
Resolution & Frame rate	1920 x1080 @ 60fps 1280x960 @60fps 1280x720 @ 60fps 800x600 @ 60fps 640x480 @ 60 fps 320x240 @ 60fps
Shutter Type	Electronic rolling shutter
Focus type	Fixed focus/Manually adjustable
Sensitivity	7757 mV / lux-sec
Interface type	USB2.0 and SPI
Adjustable parameter	Brightness
Lens	Optical length: 18.6mm
	F/NO: 2.4
	FOV: D=130°
	Thread Size: M12*P0.5
Audio frequency	Optional
Power supply	USB BUS POWER
Power consumption	DC 5V, 260mW
Main chip	DSP/SENSOR/FLASH
Auto Exposure Control (AEC)	NOT Support
Auto White Balance (AEB)	NOT Support
Auto Gain Control (AGC)	NOT Support
Dimension	32mm x 32mm
Storage temperature	-40 ─ 85 ˚C
Operating temperature	-30 ─ 85 ˚C
USB cable length	Default
Support OS	WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC
