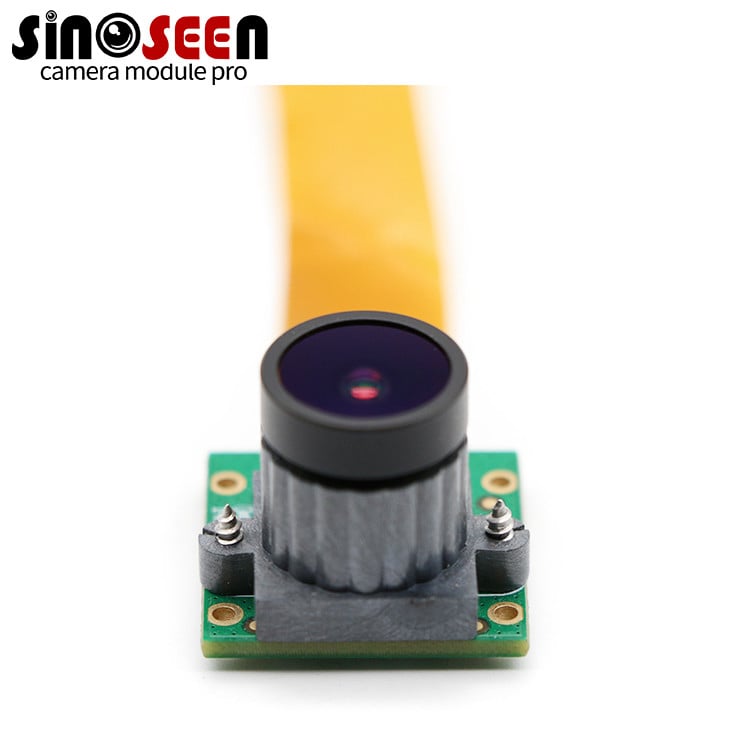

ROHS Full HD 2MP 60FPS Mipi Camera Module with Low Light Performance
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | ROHS |
| Model Number: | SNS-F37-1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
- Parameter
- Related products
- Inquiry
Product Description
Sinoseen ROHS compliant Full HD 2MP Mipi camera module features the F37 sensor, offering 1920x1080 resolution at 60fps. Designed for excellent low light performance, it ensures high-quality image output even in challenging lighting conditions. The module supports multiple resolutions including 1080P, 720P, and VGA, all at 60fps. Ideal for applications in security, surveillance, and industrial monitoring. Trust Sinoseen for advanced imaging solutions with robust performance.
Specification:2MP 60fps Full HD Mipi Camera Module
|
Model No |
SNS-F37-1.0 |
|
Sensor |
1/2.8’’ F37 |
|
Pixel |
2 Mega Pixel |
|
Most effective pixels |
1920(H) x 1080(V) |
|
Pixel Size |
2.7 x 2.7 µm |
|
Image area |
1928H x 1088V |
|
Compression format |
MJPEG / YUV2/H.264 |
|
Resolution & Frame rate |
1920 x1080 @ 60fps |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
S/N ratio |
52dB |
|
Dynamic range |
72dB |
|
Sensitivity |
7757 mV / lux-sec |
|
Dimension |
Customization |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 60°C |
