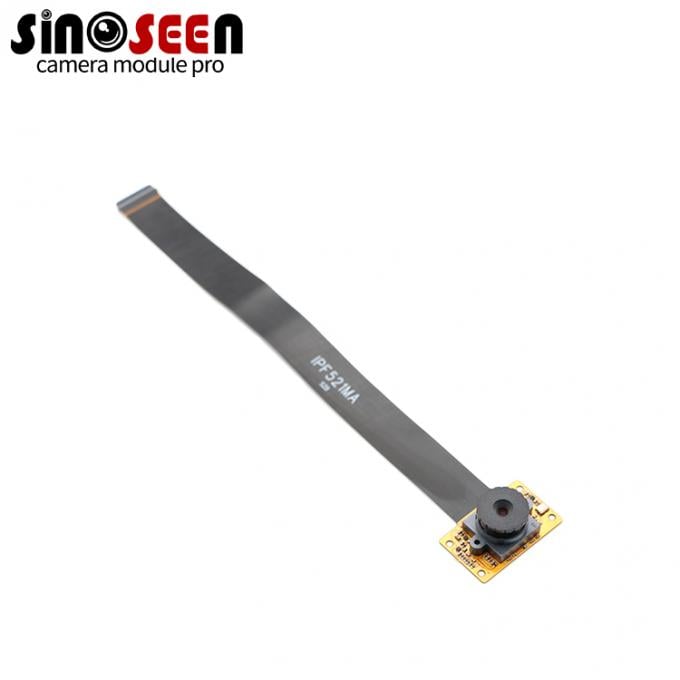

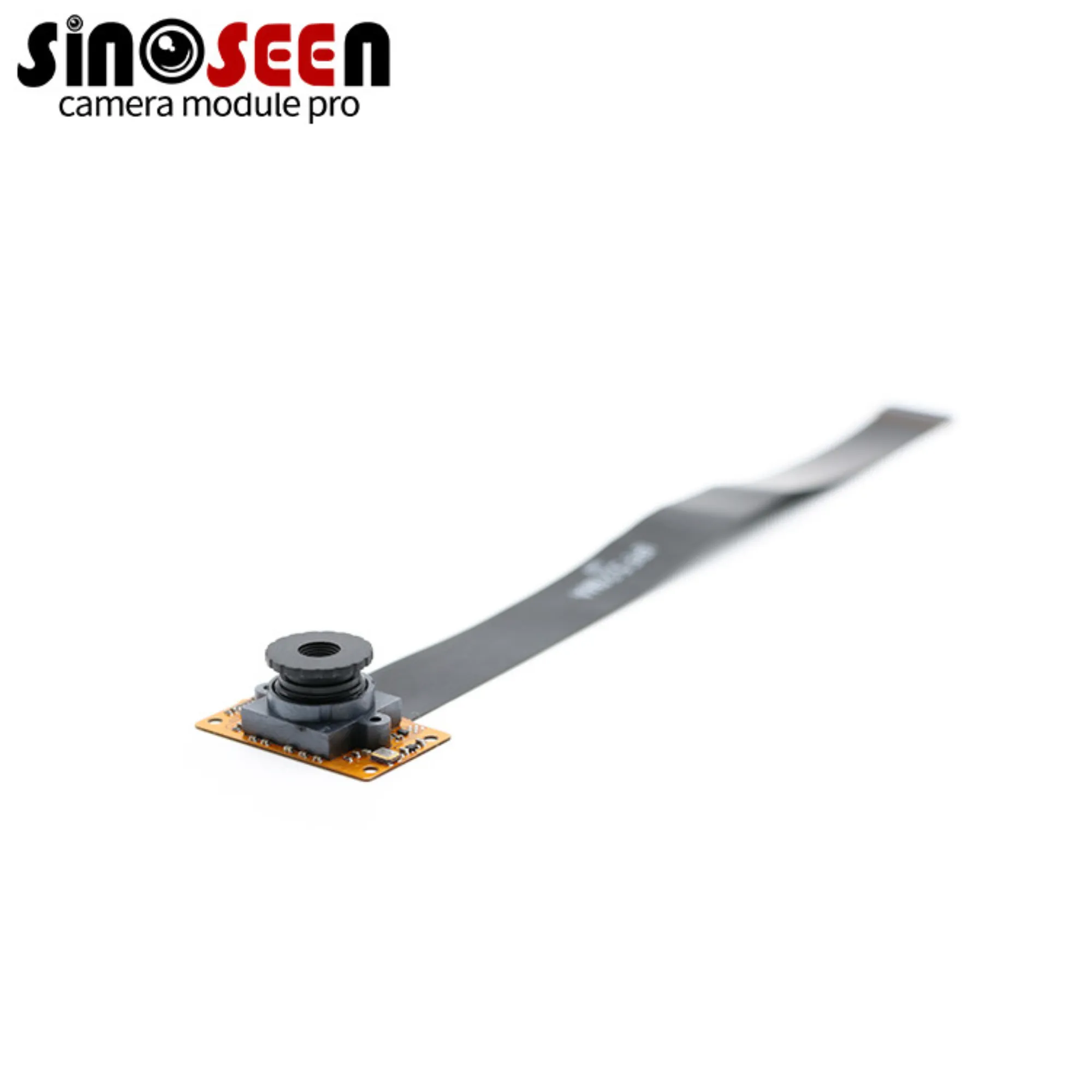

5MP MIPI Camera Module With AR0521 Sensor 2592x1944 Resolution For Detailed Imaging

5MP MIPI Camera Module With AR0521 Sensor 2592x1944 Resolution For Detailed Imaging

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Sinoseen
Certification:	RoHS
Model Number:	IPF521M1

Payment & Shipping Terms:

Minimum Order Quantity:	3
Price:	negotiable
Packaging Details:	Tray+Anti-static bag in carton box
Delivery Time:	2-3weeks
Payment Terms:	T/T
Supply Ability:	500000 pieces/month

Inquiry

Parameter
Related products
Inquiry

Detail Information

Type:	5mp Camera Module	Sensor:	1/5 Inch
Resolution:	5MP 2592(H) X 1944(V)	Dimensions:	(customizable)
Lens FOV:	80°(optional)	Focus Type:	Fixed Focus
Interface:	Mipi Camera Module	Feature:	High-definition
High Light:	5MP MIPI Camera Module , AR0521 Sensor MIPI Camera Module , 2592x1944 5MP Camera Module

Product Description

The AR0521 sensor on this module is a 5-megapixel (5MP) image sensor with high dynamic range (HDR) capabilities. The sensor has a resolution of 2592x1944 pixels, which enables the capture of detailed, clear images. The HDR feature enables the sensor to capture a wider range of light intensities, which improves image quality and enhances detail in both bright and dark areas. The camera module's 2592x1944 resolution enables the capture of high-resolution images with excellent clarity. This resolution is suitable for applications requiring detailed imaging, such as industrial inspection, machine vision, robotics and surveillance.

Specification

Model No	IPF521M1
Sensor	1/5’’ inch
Pixel	5 Mega Pixel
Most effective pixels	2592(H) x 1944(V)
Pixel Size	1.2µm x 1.2µm
Resolution & Frame rate	See above
Shutter Type	Electronic rolling shutter
Focus type	Fixed focus
S/N ratio	36dB
Dynamic range	72 dB @ 8x gain
Sensitivity	690mV / lux-sec
Adjustable parameter	Brightness/Contrast/Color saturation/Hue/Definition/ Gamma/White balance/Exposure
Lens	TTL: 23.89MM
	Lens Size: 1/3 inch
	DFOV: 80°
	Thread Size: M12*P0.5
Audio frequency	Optional
Power supply	mipi
Power consumption	DC 5V, 200mW
Main chip	DSP/SENSOR/FLASH
Auto Exposure Control (AEC)	Support
Auto White Balance (AEB)	Support
Auto Gain Control (AGC)	Support
Storage temperature	-20°C to 70°C
Operating temperature	0°C to 60°C
USB cable length	Default
Support OS	WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC
